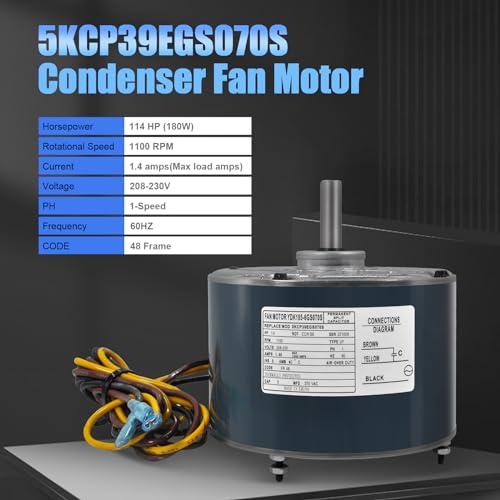

CHECK BEFORE ORDERING: 1/4 HP, 1100 RPM, 208-230V, CCW rotation, 5uF/370V capacitor. Not compatible with 1/5, 1/6, 1/8, 1/3, 1/2 or 1/10 HP motors; 825, 850, 1075 or 1500 RPM motors; 115V motors; or clockwise (CW) rotation applications.

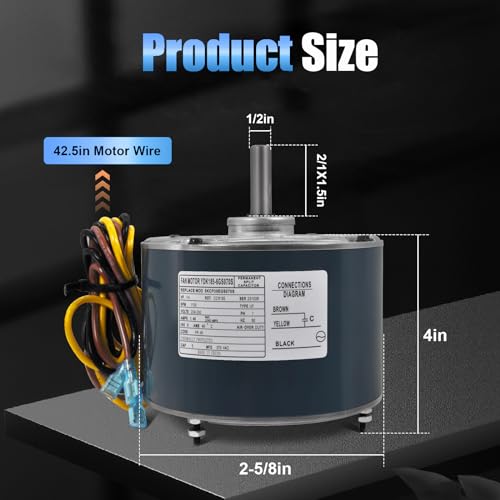

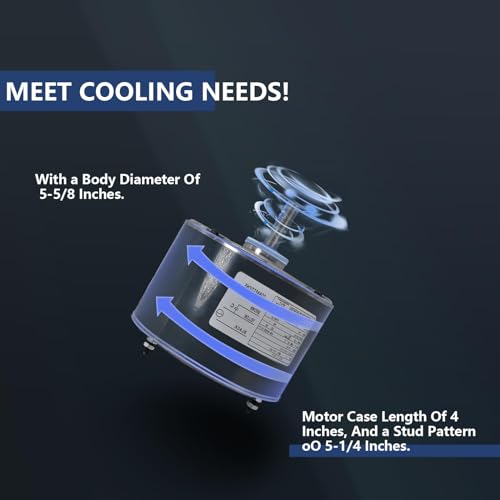

DIMENSIONS: Body diameter 5-5/8 in, motor shell length 4 in, 48Y frame, TEAO enclosure, sleeve bearing, 1/2 in shaft. Measure your old motor before ordering - the right part number with the wrong size will not mount.
ROTATION: CCW only as viewed from the shaft end. This motor is NOT reversible and is not a replacement for clockwise (CW) rotation applications. If your old motor spins clockwise, do not order this one.
DIRECT REPLACEMENT FOR: Carrier / Bryant / Payne 5KCP39EGS070S, HC39GE237, HC39GE237A, 6DLL0, HC39GE234A and Genteq GE3905. Match the part number on your motor's nameplate to confirm fit.

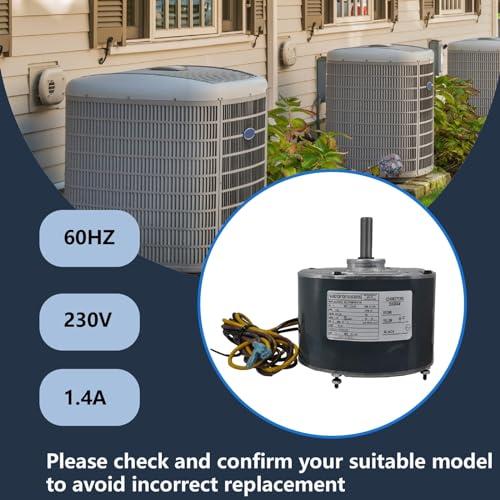

BUILT FOR OUTDOOR CONDENSER UNITS: Totally enclosed air-over (TEAO) housing with a rolled steel shell, engineered for continuous duty in high heat and humidity. Includes one 5uF/370V capacitor. Professional installation is recommended.
