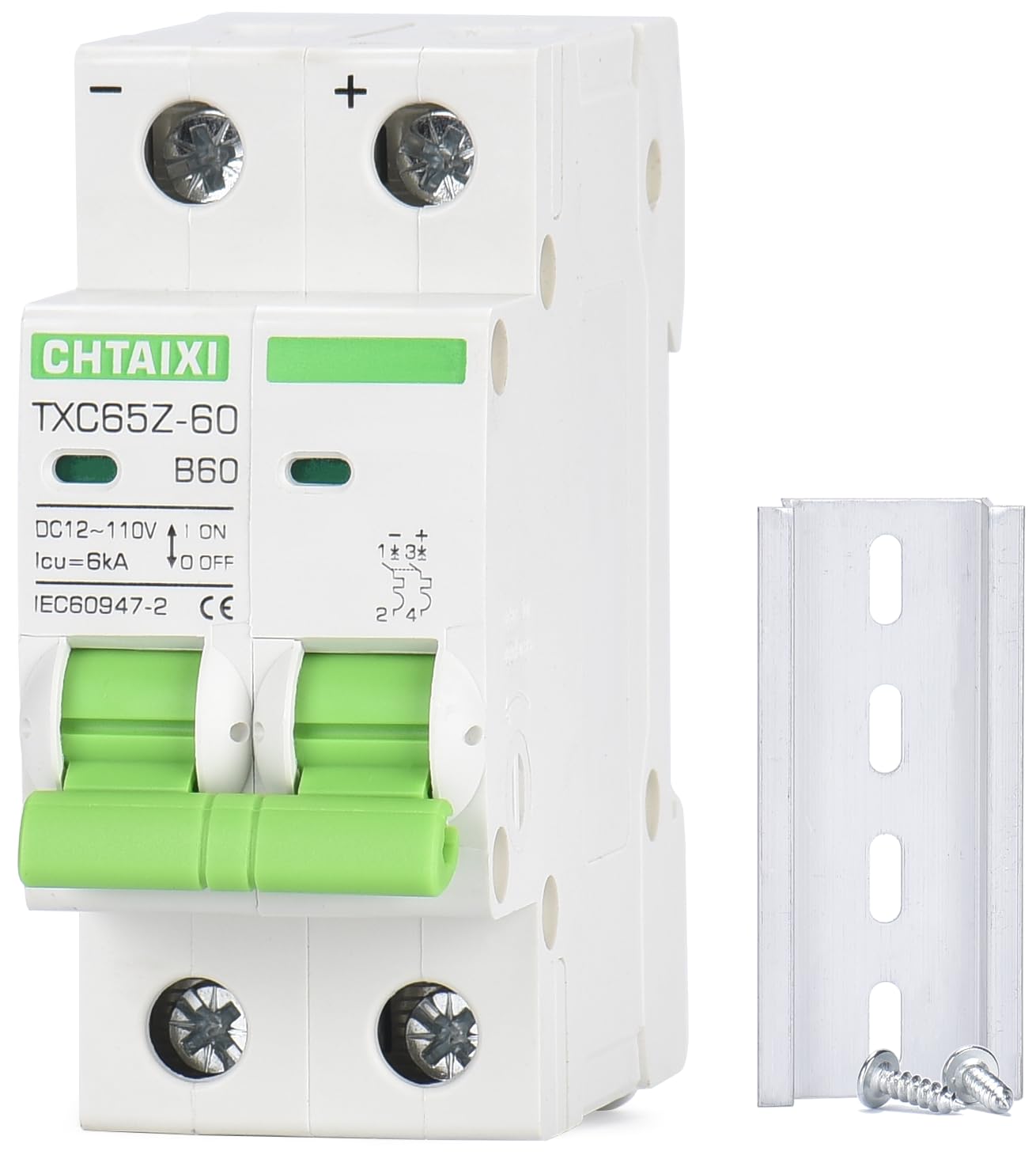

12V-110V DC Miniature Circuit Breaker, 60 Amp 2 Pole Battery Breaker Protector for Solar PV System and RV, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch B60

Brand: CHTAIXI

Features:

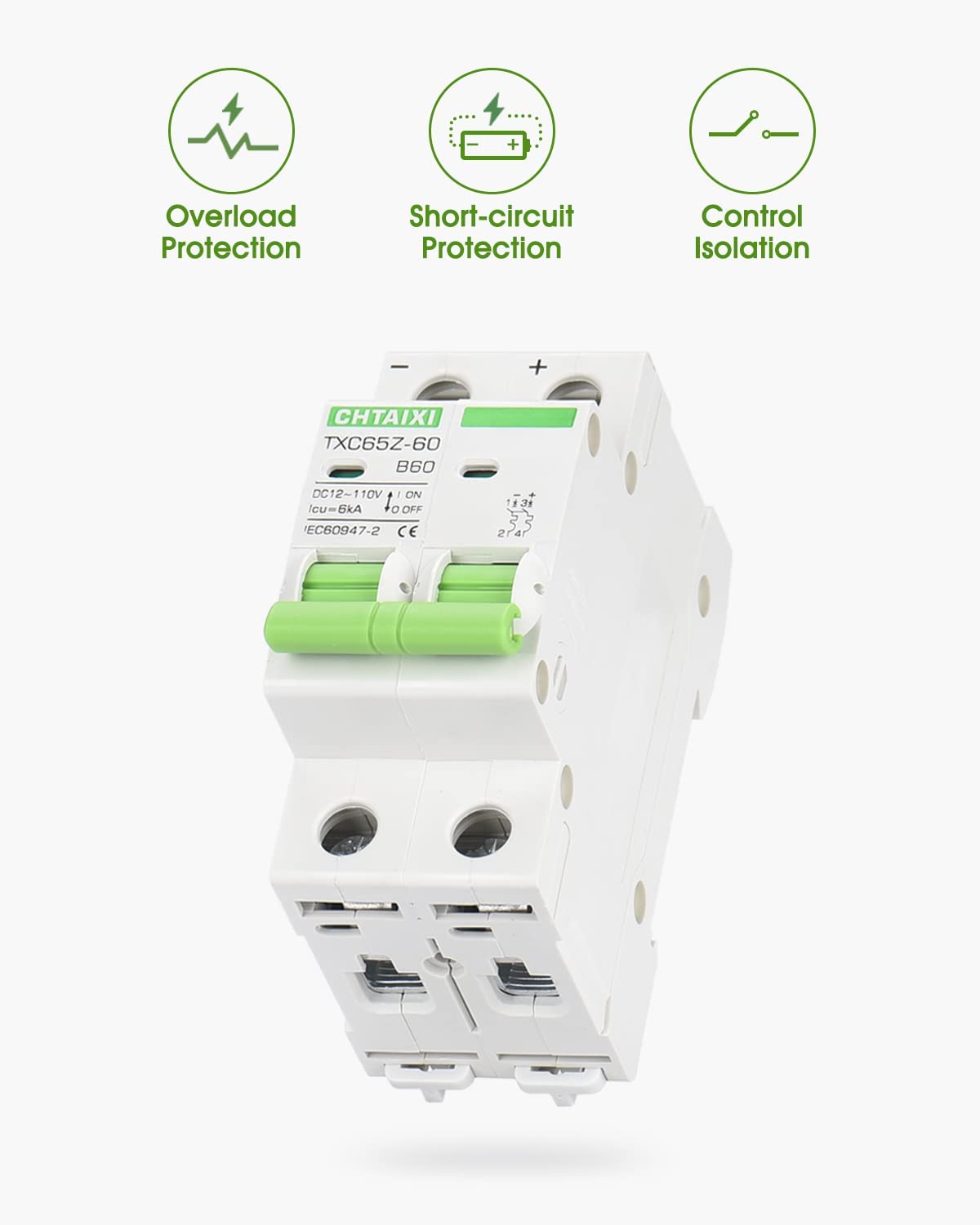

• FUNCTIONS: Used to protect 12V 24V 36V 48V 60V 100V DC circuit from overload and short circuit damage, and can also be used for control and isolation.
• FAST TRIP: The electromagnetic trip system can trip immediately when short-circuited.

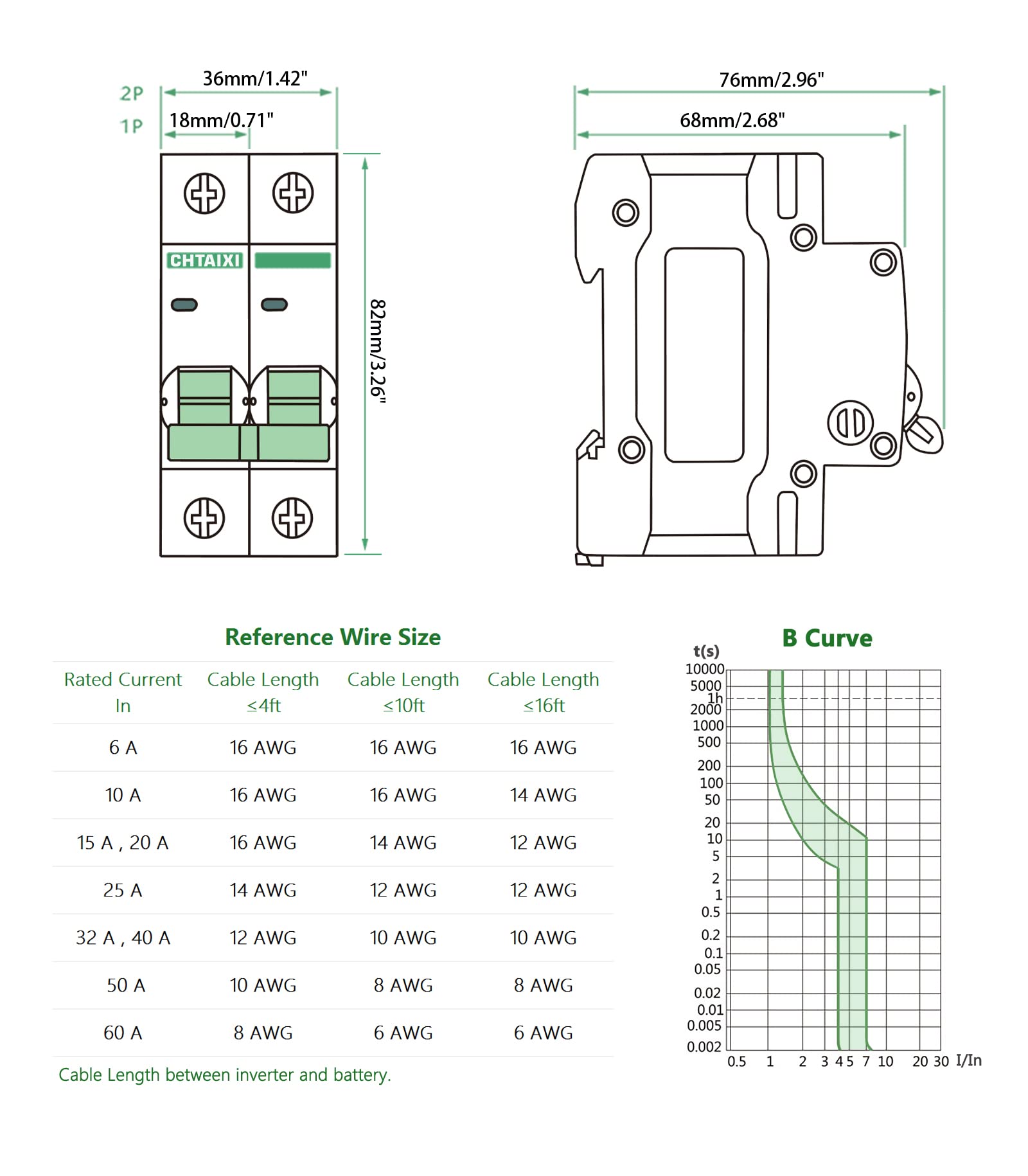

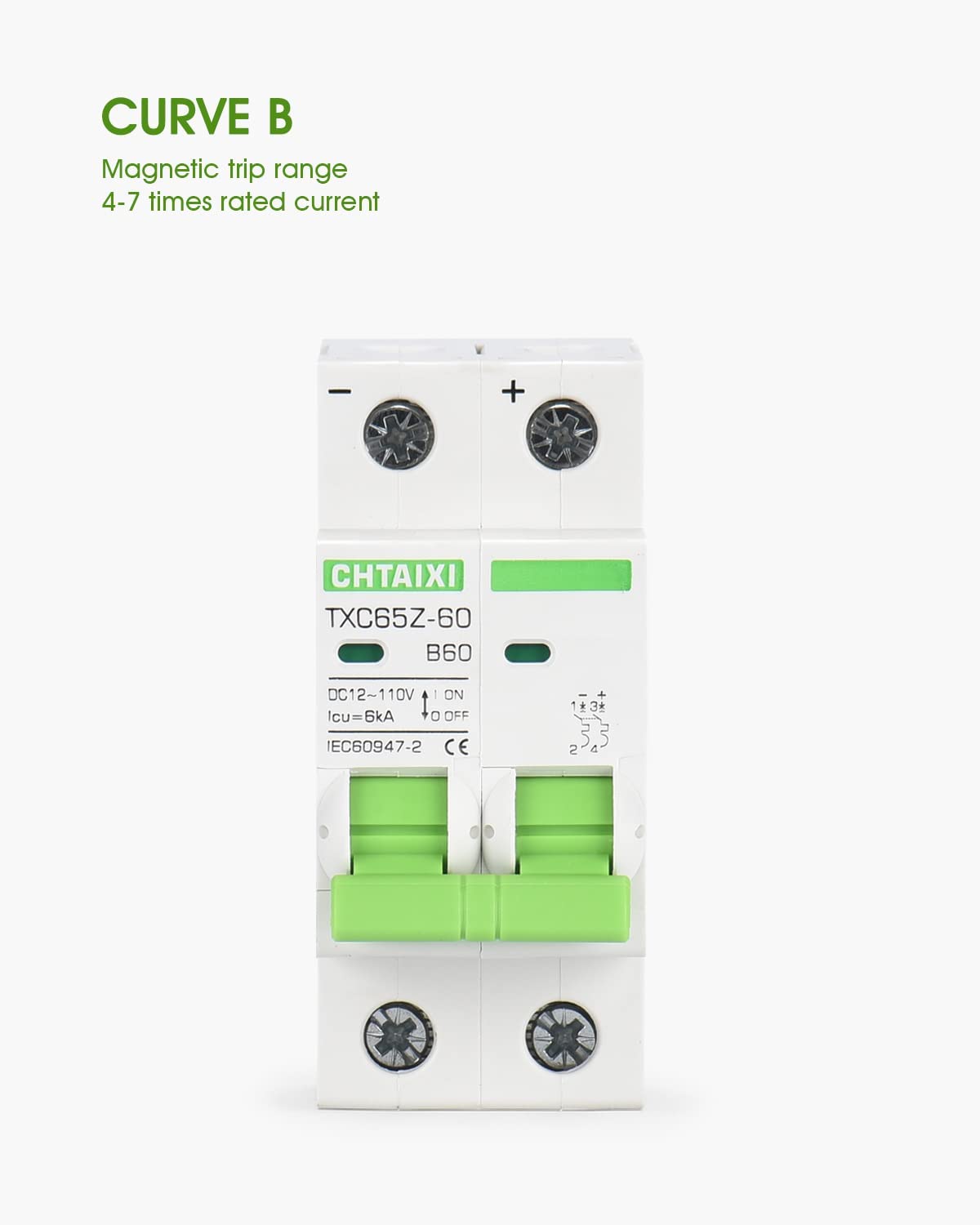

• CURVE B: Magnetic trip range 4-7 times rated current.
• APPLICATION: Used in battery power systems, solar photovoltaic systems, RV, electric moped, or other DC systems.
• INSTALLATION: Screw clamps wire or M5 wire lug (size fits), 35 mm DIN rail mount.

model number: TXC65Z-60

Part Number: 65Z60-2P12B

Package Dimensions: 3.6 x 3.5 x 1.5 inches
