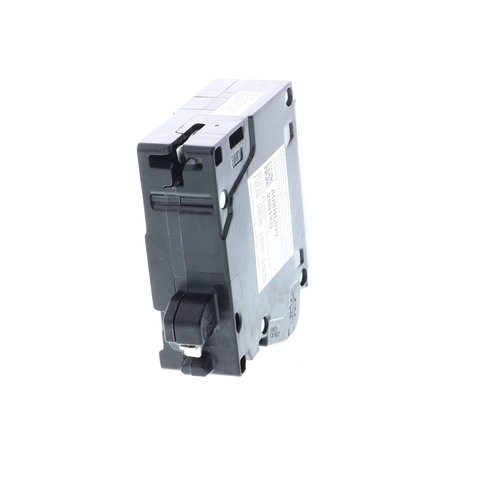

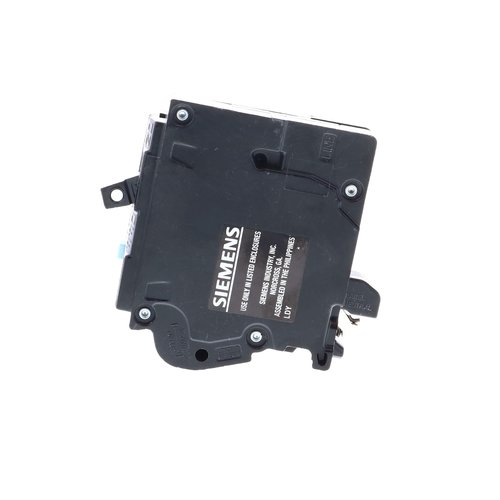

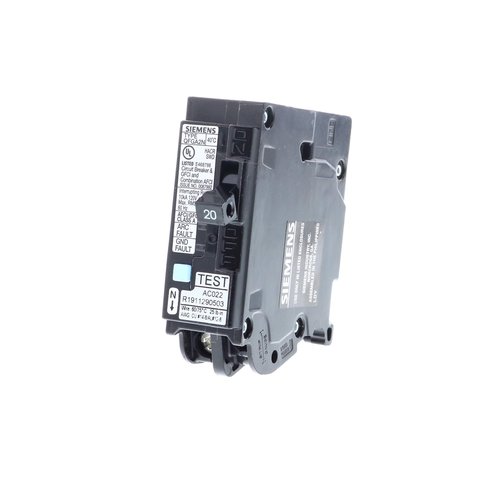

20 Amp 1-Pole Dual Function (CAFCI/GFCI) Plug-On Neutral Circuit Breaker

Brand: SIEMENS

Color: Black

Features:

• Simply installs like any other breaker, now without the pigtail
• 10,000 AIC
• HACR and SWD rated
• UL Listed
• This breaker is specifically designed for Plug On Neutral Load Centers

Binding: Tools & Home Improvement

model number: Q120DFN

Part Number: Q120DFN

Details: Siemens introduces the new simple, spacious and secure Plug-on neutral load centers with electronic breakers. The dual-function circuit breaker combines class A 5mA GFCI and combination type AFCI, protecting against both arc faults and ground faults. This, along with the new self-test feature, makes it the first in class in electrical safety for homeowners. This Dual Function circuit breaker is the same, reliable design, without the pigtail, specifically designed for the Plug-On Neutral Load Centers. Simple, Spacious, Secure. The Siemens Plug-On Neutral Combination Type AFCI breaker detects arcing faults (an unintentional arcing condition in a circuit) that standard circuit breakers are unable to detect. This AFCI circuit breaker is the same, reliable design, without the pigtail, specifically design for the Plug-On Neutral Load Centers. These breakers now only have a single load lug. The branch neutral conductor is returned to the neutral terminal bar for simpler and quicker wiring.

EAN: 0804766906596

Package Dimensions: 3.2 x 3.0 x 1.0 inches
