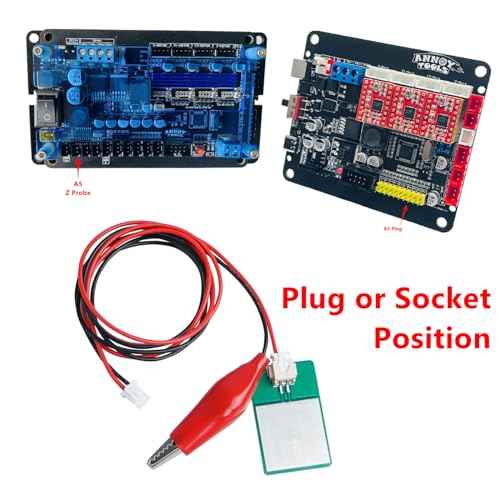

Step 1: Connect the Tool Setting Probe to the Tool Setting interface of the control board (such as GRBL or MACH3, their Tool Setting interface is different).
Step 2: Probe clamp to Router V bits, then put the sensor board direclty on the Plastic Acrylic PCB PVC Wood surface.

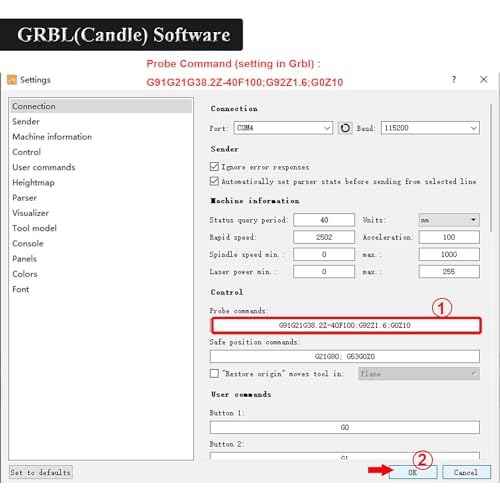

Step 3: on controller and PC end, check the Tool Setting Commend(GRBL and MACH3 is different), and then save it.

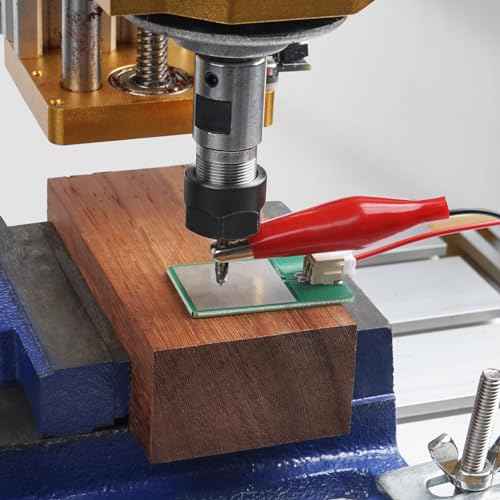

Step 4: router Bits will go down and until the bits tips touch to the sensor board, then bits will go back to original position. get the data of the surface position.
Step 5: the data has written into system, and Z-axis make the Plastic Acrylic PCB PVC Wood Surface to 0. and we remove the Tool Setting Touch Probe, then can normal working.
