4pcs 50kg Load Cell Half Bridge Strain Gauge Human Body Scale Weight Sensor + 1pcs HX711 Amplifier AD Module for Arduino

Brand: NEXTION

Features:

• The 50kg load cell is a group of half-bridge strain gauge, there are 3 ways to use it. 2.Use two sensors to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg
• Use one load sensor 50kg with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements.
• Use two weight sensor 50kg to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg
• Use four weight scale 50kg to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg
• If you have any problem, please do as follow: click "DIYmalls"(you can find "Sold by DIYmalls" under Buy Now button), in the new page, click "Ask a question".

model number: 8541791593

Part Number: WI1802AX4+WI0728

Details: Description :
This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales.

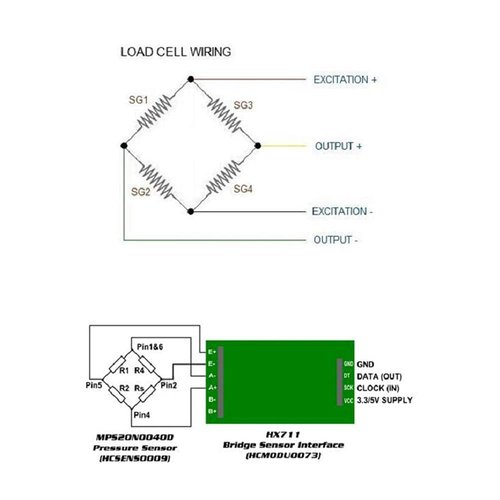

The sensor is a group of half-bridge strain gauge, there are 3 ways to use it :
1. Use one sensor with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements.
2.Use two sensors to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg

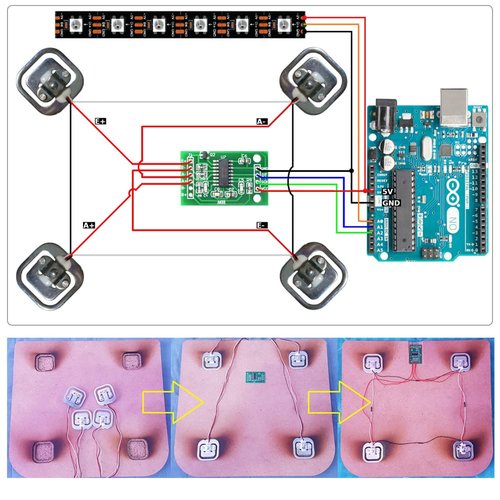

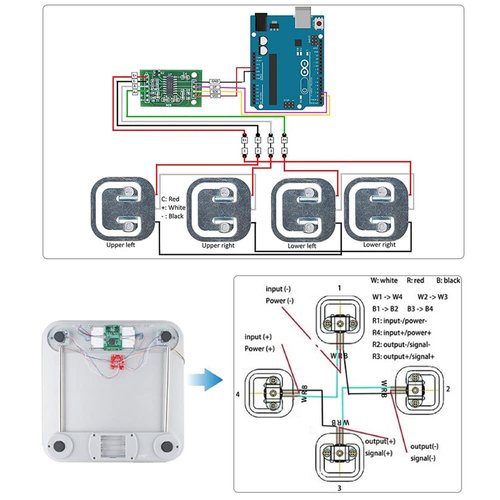

3.Use four sensors to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg

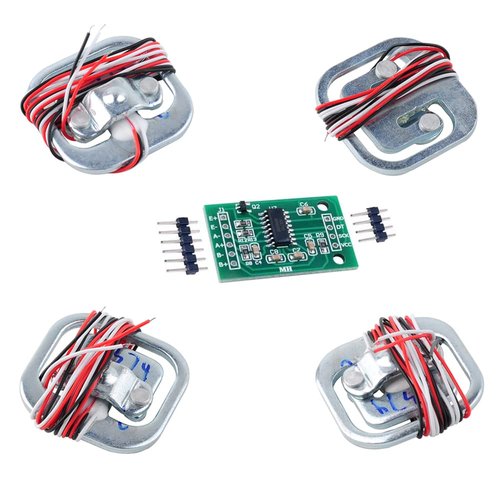

Package Includes:
4 X Human Scale Load Cell 50kg
1 X HX711 AD Module

EAN: 0702795764555

Package Dimensions: 4.1 x 4.1 x 0.8 inches
