A sixx Capacitor Tester, Capacitance Meter, Portable Capacimeter, LCD Digital for Measuring for Test

Brand: A sixx

Color: Red + Black

Features:

• The instrument structure is compact, with a safety jacket, easy to operate and carry, is the ideal electrical measurement props.
• Can also be used for digital analysis, selection of capacitors, measurement of unknown capacitors, matching capacitors, measuring cable capacitance and etc.
• Powered by a 9V battery, low power consumption.
• With the data retention and backlighting function.
• It is a novel handheld LCD display capacitive table that can be used to measure 9 range of data over a wide range from 0.1 pF to 20,000 uF.

model number: A sixxvg5qh6twoe

Part Number: A sixxvg5qh6twoe

Details: Description:

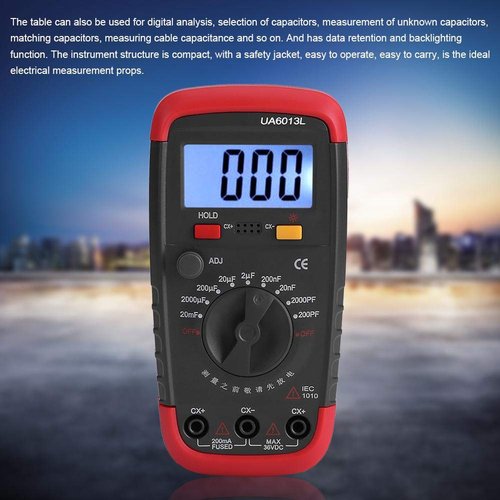

The digital capacitance meter 6013L is a novel handheld LCD display capacitive table that can be used to measure 9 range of data over a wide range from 0.1 pF to 20,000 uF.
The table can also be used for digital analysis, selection of capacitors, measurement of unknown capacitors, matching capacitors, measuring cable capacitance and so on.
And has data retention and backlighting function. The instrument structure is compact, with a safety jacket, easy to operate, easy to carry, is the ideal electrical measurement props.

Feature:
Digital capacitance table 6013L. Powered by a 9V battery, low power consumption. With the data retention and backlighting function. The instrument structure is compact, with a safety jacket, easy to operate and carry, is the ideal electrical measurement props. It is a novel handheld LCD display capacitive table that can be used to measure 9 range of data over a wide range from 0.1 pF to 20,000 uF. Can also be used for digital analysis, selection of capacitors, measurement of unknown capacitors, matching capacitors, measuring cable capacitance and etc.
Spec:
Material: Plastic + electronic components
Color: Red + Black
Range Choice: Manual Range
Measuring range: 0.1pF-20,000uF, divided into 9 files.
The maximum display: 1999 that is 3 1/2.
Sampling rate: 2-3 times per second
Zero adjustment: Manual
Power supply: 6F22 9V laminated battery (Not included)
Maintain accurate operating temperature: 23 ± 5 ℃
Working environment: 0-40 ℃ Relative humidity: ≤85 ℃
Storage environment: temperature -10-50 ℃, relative humidity: ≤ 85%
Size: (L) x (W) x (H)142 x 74 x 35mm / 5.5

EAN: 3593539125537

Package Dimensions: 6.7 x 4.9 x 1.9 inches
