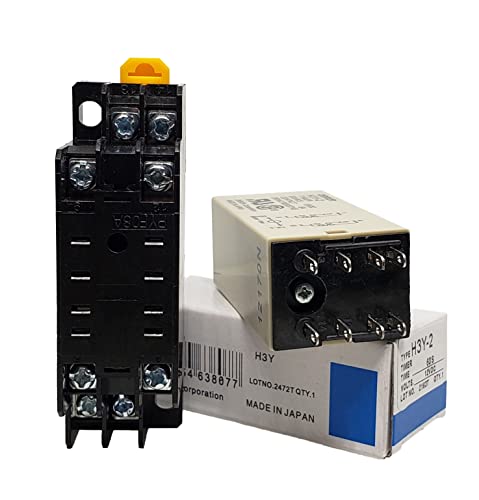

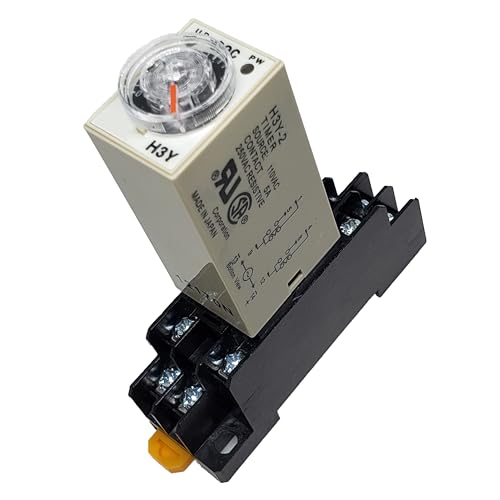

H3Y-2 AC 110V delay timer time relay + H3Y-2 base Model : H3Y-2 Material : Metal, Aluminum, Plastic Supply voltage : AC 110V Allowable voltage change range : 90%~110% of supply voltage Power consumption : 0.1W~1.1W Contact Capacity : 240VAC 5A Work mode : electricity delay Pins : 8 Rated time Range : 0~60 s Environment Temperature : -10℃ - +50℃ Environment Humidity : 35%~85% Relay Size (L x W x H) : Approx. 5.7 x 2.8 x 2.2cm / 2.2 x 1.1 x 0.9 inch Base Size (L x W x H) : Approx. 7 x 2.3 x 3.1cm / 2.7 x 0.9 x 1.2 inch
The relay has two indicator LEDs; one lights up once it receives 110VAC power showing the time sequence has been initiated; the second one comes on once the selected time has elapsed and relay is energized.
