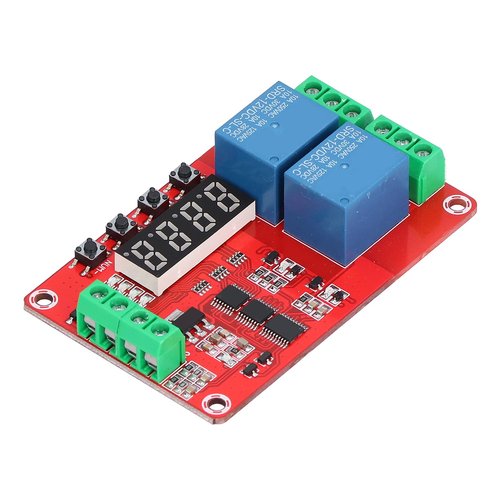

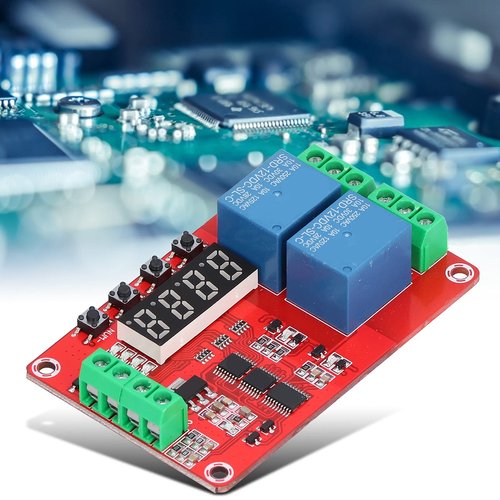

Agatige Time Delay Relay Module, DC 12V Timer Relay Programmable Delay Relay Module with LED Display, 2-Channel Timer Switch Self Lock Cycle Delay Controller Board for Smart Home, Automatic Control

Brand: Agatige

Color: Red

Features:

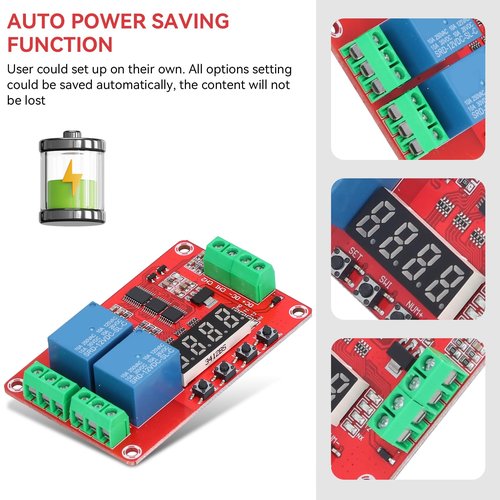

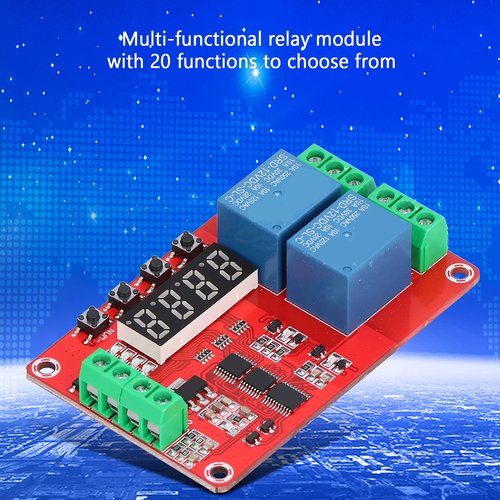

• 20 Optional Functions - The timer relay can select one of 20 functions through the keys and display, can set and save the function parameters, and can also view the parameters of the current function, the time parameter setting can be adjusted at least 0.1 seconds, and the accuracy is better than 0.01 seconds

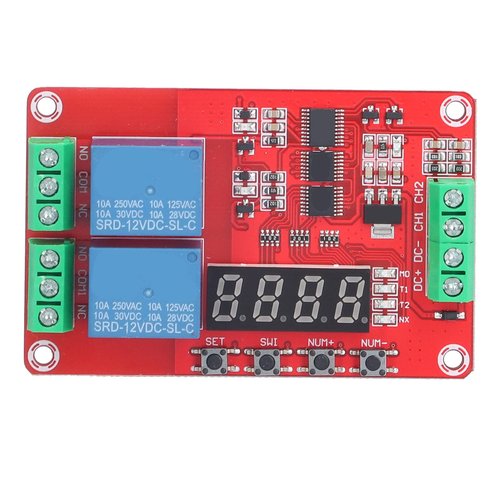

• Load capacity - Cycle timer with LCD display, maximum load capacity of normally open port: DC 0-30V/10A, AC 0-250V/10A, maximum load capacity of normally closed port: DC 0-28V/10A, AC 0- 125V/10A

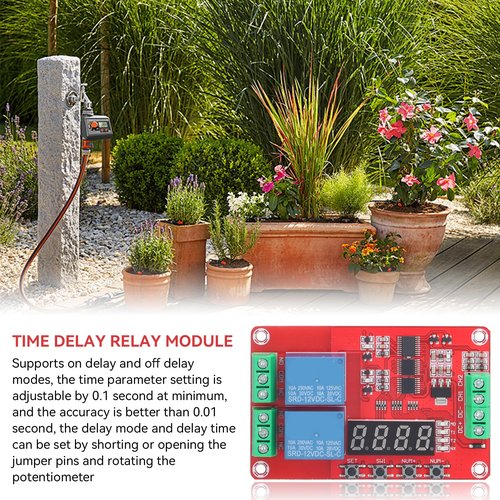

• Two Kinds of Voltage Modules Are Optional - Programmable delay relay module has 12V, 24V two modules to choose from, supports on-delay and off-delay mode, can be passed through Short or open the jumper and turn the potentiometer
• Reverse Connection Protection - The built-in diode of the delay controller board provides protection for the circuit to prevent accidental reverse connection, avoiding the wrong terminal to burn the module, safe and reliable use
• Multifunctional Cycle Timer - Delay Switch Relay Module is used as a switch with time delay switch function, highly recommended for automotive circuit modification, as well as LED lights, DC motors, pumps, industrial controls, automatic irrigation, indoor ventilation and smart home control systems

model number: Agatigeqyshmndxv7-12

Part Number: Agatigeqyshmndxv7-12

Package Dimensions: 5.7 x 2.1 x 0.7 inches
