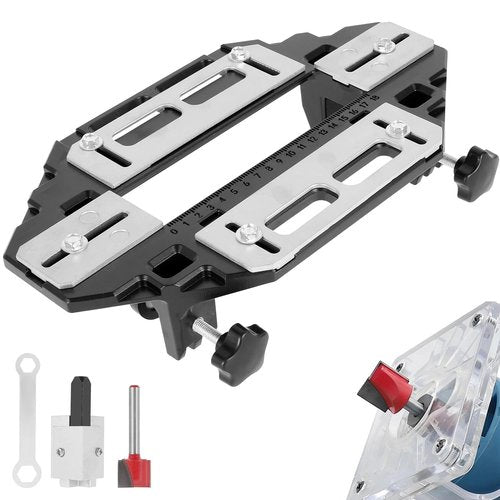

Aluminum Alloy Door Hinge Jig, Door Hinge Adjustment Tool for Template Jig and Concealed Hinge Jig, Door Lock Installation Kit, Lightweight Woodworking Hole Opener Slotting Locator

Brand: Drphiru

Color: Silver

Features:

• FUNCTION: The door hinge adjustment tool for door hole slotting locator is designed for wooden door hinge groove, lock body guide plate groove, and other slotting applications. Any lock and hinge can be fitted in a matter of a few minutes. (Template Size: 13.4” L×7.8”W)

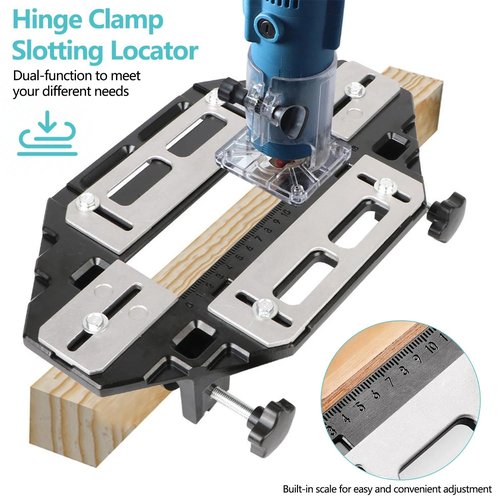

• PRECISE POSITIONING: This concealed hinge jig of door installation kit supports flexible adjustments in four directions, with adjustable length and width positioning for alignment, and it has precise proportions. The door hinge jig for door hole slotting locator has built-in scales to provide specific slotting positions
• USER-FRIENDLY: The door hinge router jig template can be adjusted for both hinge length, thickness, and round vs. square corners. It has a built-in depth gauge on the side for the attached router bit to set depth and comes with a self-centering hinge bit to ensure hinge screws are perfect.
• SAFE CLAMPING: The door installation kit has no tools required, fast clamping. Use the included mini-adjustment wrench to clamp quickly and securely. No damage to the facade; the clamping part of the door hinge router jig adopts rubber anti-skid design to ensure that the surface of the wooden door will not be damaged
• STURDY AND DURABLE: The door lock installation kit is constructed using high-strength materials, with the main panel made of aluminum alloy material and silicone anti-skid pads on both sides. This door hinge adjustment tool can endure various environmental conditions, such as severe weather, high temperatures, and humidity. It remains resistant to deformation or damage even after extended use

model number: 10419

Details: HOW TO INSTALL:

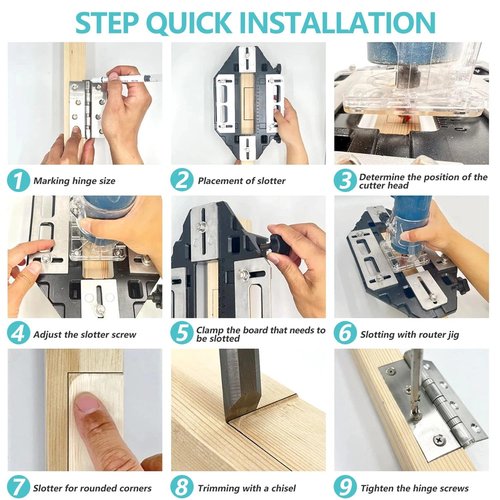

1. Mark the position of the hinge on the wooden door.
2. Put the slotted retainer on the wooden door and fix it (clamp by tightening the black nut).
3. Adjust the screws on the four sides to determine the working range of the wood router.
4. Adjust the depth of the blade of the wood router, and set the blade to extend beyond the edge of the door.
5. Slotting with the wooden router.
6. There is a certain chance that the edge of the door will be damaged when grooving (the material of the wood and the work of the cutter head may cause it), so don't hollow out all the wood at the edge.
7. Use a chisel to chisel off the curved and reserved sections, making sure the edges are flat.
8. Finish slotting and install hinges.

Specification:

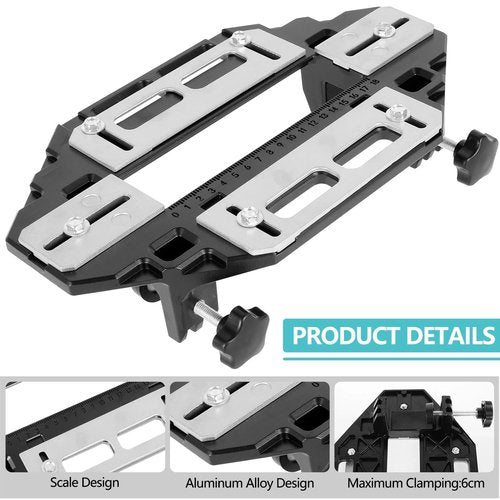

Material: aluminum alloy
Hole size: up to 18 cm / 7.09 in
Maximum clamping: 6 cm / 2.36 in
Product Size: Approx. 34 * 20 (13.39 * 7.87 inch).
Opening Size: Max 18 cm/7.1 inches
Maximum grip: 6 cm/2.4 inches
Item Weight:3.92 pounds

packing includes:
1 x Door Hinge Jig
1 x Trimming Tool
1 x Right Angle Chisel
1 x Adjustment Wrench

Note:
The foldable drill plate must be used with the trimmer. After grooving, all corners are rounded and must be trimmed square before assembly.

Package Dimensions: 13.6 x 8.7 x 3.7 inches
