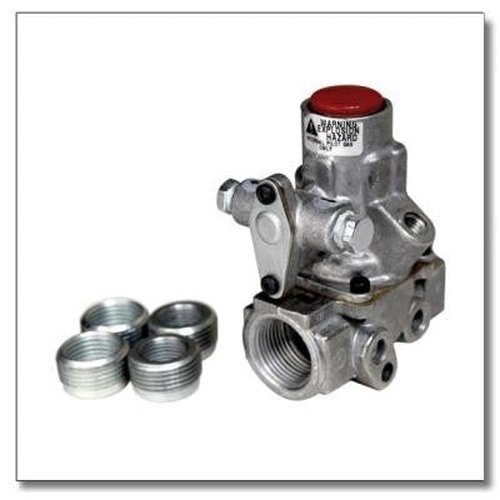

BASO H15DA-3C Series H15 Automatic Shutoff Internal Pilot Gas Valve, Natural Gas/Liquid Propane, Standard Power Unit, 3/4" x 3/4" Npt, 3.93" Height, 2.25" Width, 3.17" Length

Brand: Baso

Color: Silver

Features:

• Permits installation in dimensionally restricted applications
• Allows gas flow only to the pilot burner during lighting
• Proven by thousands of units in service
• Provides simple lighting with use of larger reset button
• Broadens applications to include global markets

Release Date: 13-06-2017

model number: H15DA-3C

Part Number: H15DA-3C

Details: The H15 Series pilot valves provide safe lighting and complete shutoff of pilot and main burner gas in the event that the flame heating the thermocouple is extinguished. They are designed for standing pilot applications and can be used with natural gas and liquefied petroleum (LP) gas, at pressures up to 0.5 psi (35 mbar [3.5 kPa]). typical applications include commercial cooking equipment, heaters, kilns, dishwashing equipment, industrial ovens, and similar applications. made in United States. Manufactured by BASO gas products LLC.

EAN: 0046844124687

Package Dimensions: 4.7 x 3.6 x 2.4 inches
