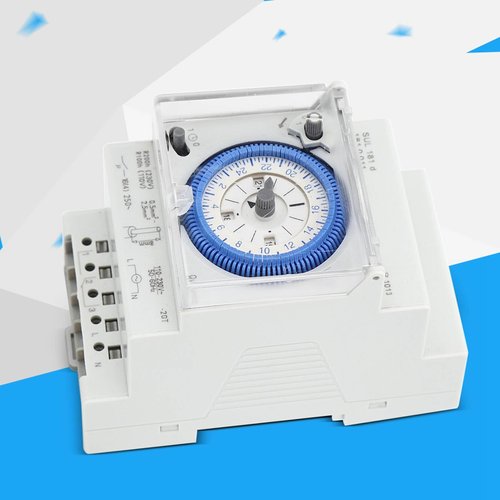

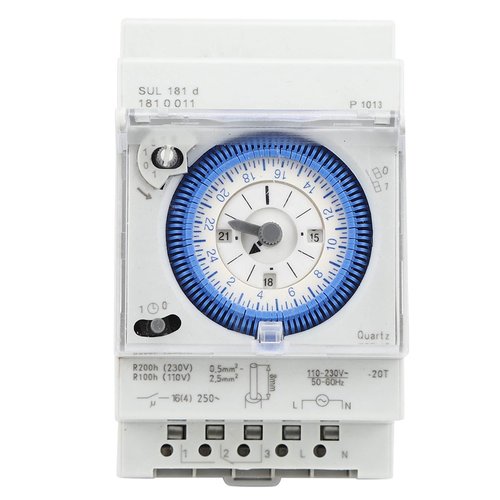

Baxnore SUL181D Mechanical Timer 24 Hours, Time Switch Relay with DIN Rail Mount, 15 Min Interval Setting for Industrial Lighting Farm Automation

Brand: Baxnore

Features:

• Industrial-Grade 24-Hour Mechanical Timer: Accurate quartz movement maintains ±1 second daily accuracy; 96 programmable on/off cycles with 15-minute minimum intervals; DIN rail mounting fits standard electrical cabinets
• Heavy-Duty 16A Switching Capacity: Handles 250VAC loads up to 4000W; 100,000+ electrical cycles under load; 10 million mechanical operate ensure long-term reliability; Fireproof thermoplastic housing
• Multi-Application Control Method: Automates street lighting and security systems; Manages irrigation pumps and farm equipment; Controls HVAC units and industrial machinery; Suitable for -20℃ to +55℃ ambient
• Energy-Efficient Operate: Only 0.5W standby power consumption; Visual operate indicator confirms active switching; Manual override for immediate control, contacts maintain conductivity

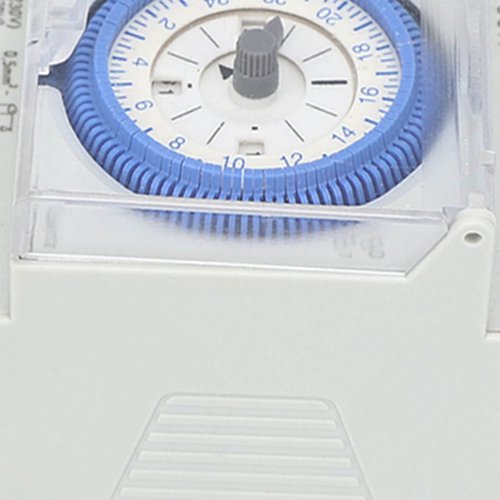

• Simple Plug-In Installation: Need not tool terminal blocks accept 1.5-4mm² wires; Clear 24-hour dial with tactile programming pins; Includes comprehensive installation guide

model number: Baxnorewbodchrk13

Part Number: Baxnorewbodchrk13

Details: Item Type: Mechanical Timer
Model: SUL181D
Rated Current: 16A
Coil Power: 0.2W
Contacts Switching Current: 16A
Protect Features: Plastic
Contacts Load: 16A
Contacts Form: 1H
Electrical Life: (under power load) more than 100,000 times
Mechanical Life: (DC) = 10 million times or more
Mechanical Life: (AC) = 10 million times or more
Contacts Resist 50Ω Ambient Temperature: -20 ℃ ~ + 55 ℃
Time Range: 24h / 24 hours, power storage time 150, minimum setting unit 15 minutes / times, total 96
Frequency: 50 ~ 60 Hz
Number Of Contacts: 1
Cycle: 24 hours

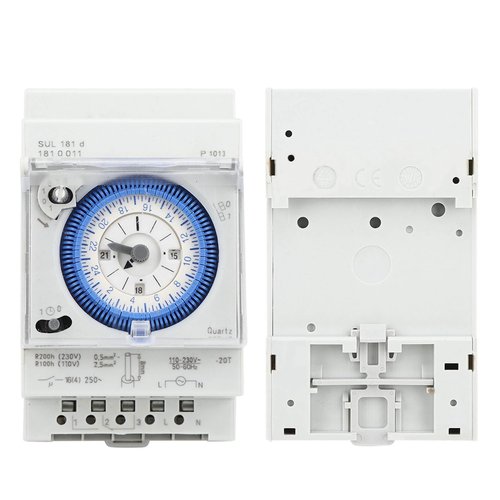

Installation Form: DIN rail

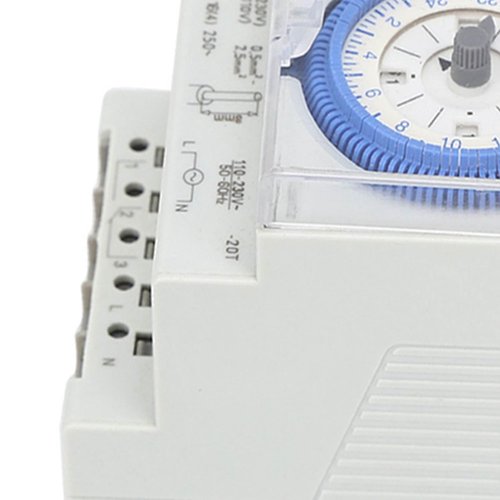

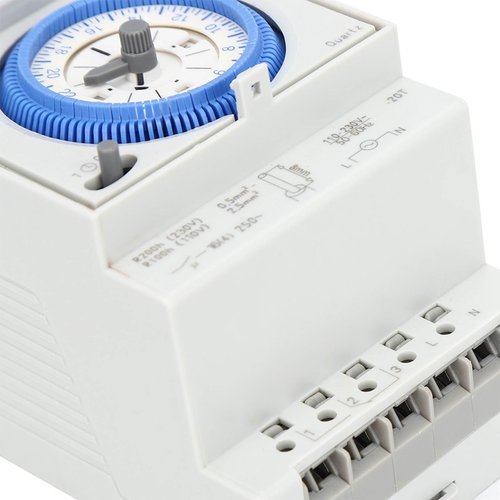

Terminal Block Form: Plug-in terminal
Cycle: 4 hours
Minimum Switching Time: 15 minutes
Minimum Setting Interval: 15 min
Time Accuracy: ± 1 s / day (quartz)
Number Of Switching Sections: 96
Standby Consumption: 0,5 W
Test Recognition Light: For VDE
Applicable Ambient Temperature: -20 ℃ ~ + 55 ℃

Package List：
1 × Timer
1 × Manual

Package Dimensions: 4.7 x 3.1 x 2.4 inches
