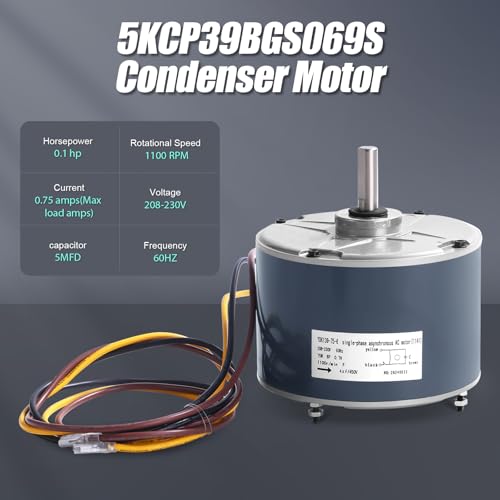

Specs: 1/10 HP · 0.75 Amp · 1100 RPM · 208-230 VAC · single speed · 3-wire leads with thermal protection. Aftermarket replacement built to the specs of part 5KCP39BGS069S.

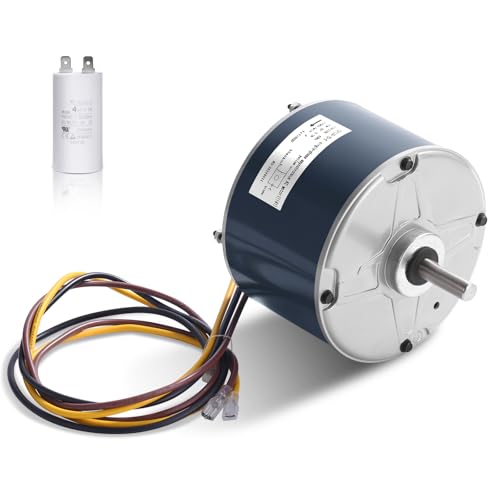

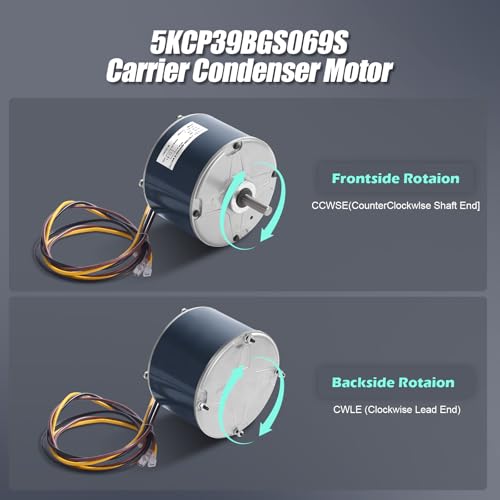

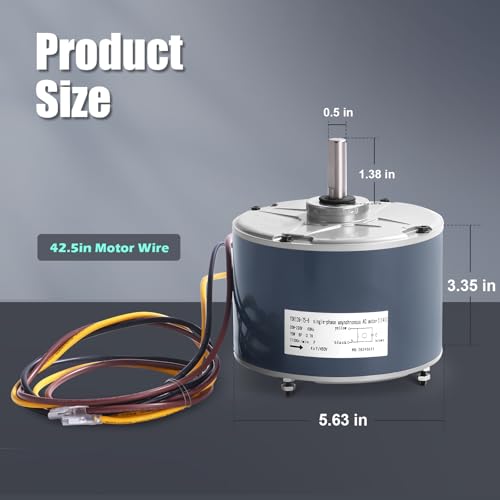

Rotation CCWSE, shaft 1/2" x 1-1/2", body dia 5-5/8", case length 3-3/4", stud pattern 5-1/4" x 5-1/4", 40°C ambient TEAO, sleeve bearing. Ships with a 5MFD capacitor.

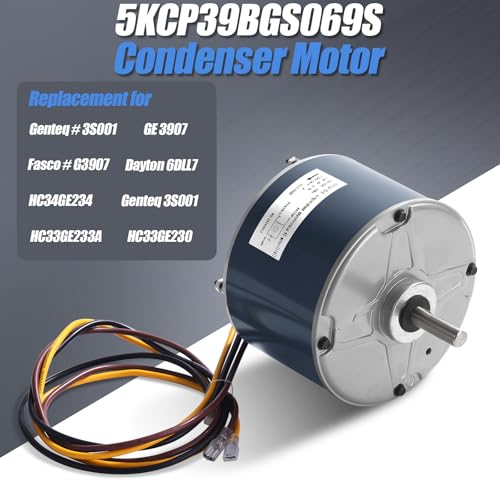

Made to replace these part numbers - match against the label on your old motor: Genteq 3S001, Fasco G3907, GE 3907, Dayton 6DLL7, 5KCP39BGY915S, 5KCP39BGY824S, HC33GE233A, HC34GE234, HB33GQ230.
Fits select Carrier, Bryant, Payne and Day-Night outdoor units. Match your model first - shaft size, rotation and stud spacing vary, and a mismatch is the top reason this motor gets returned.
Disconnect power and photograph the wiring before removing the old motor. Match wire colors and capacitor terminals. Needs only basic hand tools; reuse your fan blade and mounting hardware.
