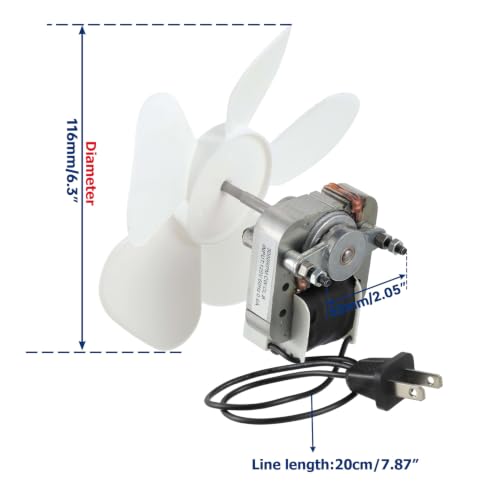

Electric Specification: 0.60 amp, 3500 rpm, 120 volt, 60 Hz,30 W wire length = 6.496" with 2-prong plug Mounting studs 1-7/8" on center
Direction of rotation: seeing from the shaft driving side, the motor rotates in CW(clockwise) when is powered on. The axial gap: 0.118" -0.315" Acceptance standard Rated voltage /frequency: AC 120V/60Hz Insulation class: B Temperature rise: ≤85K,(120V/60Hz/1.06 times of voltage) The inter-turn test: 1800V/1S, should no abnormal waveform The dielectric strength:AC1800V/1mA/1S, should be no flashing or breakdown phenomenon; No-load low voltage star-up: ≤72V, load low voltage star-up: ≤90V.

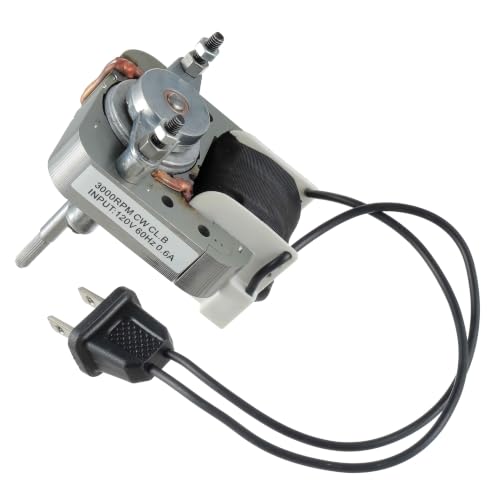

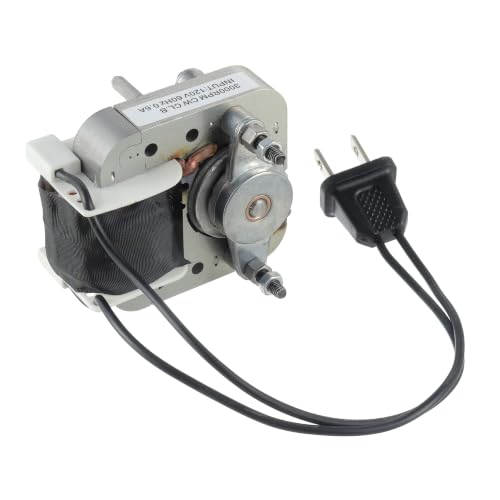

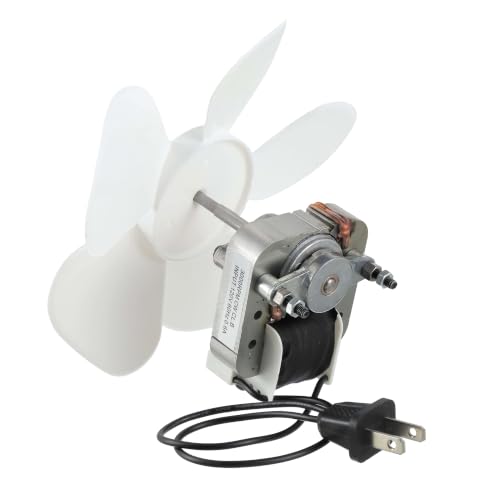

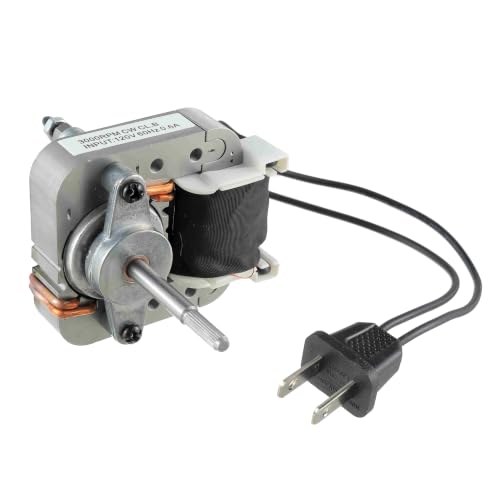

This is a Electric Motors Replacement Kit with Fan, 120V Fan kit is designed to replace most repair projects. Continuous duty, Air Over. Kit contains Motor, 1 fan = 6.6"(flat/paddle style). Replacement for motors 686,687,8870,M686.
Packing includes: 1 x Bathroom motor 1 x Bathroom fan
