    CNCTOPBAOS 550W Mini Lathe Motor,6000RPM Large Torque M10 Shaft Brushed DC Spindle Motor for 7x14 0618 Metal Lathe Machine Replacement Part Accessories CJ0618 3B 7x12 CJ18A (110V)

    CNCTOPBAOS 550W Mini Lathe Motor,6000RPM Large Torque M10 Shaft Brushed DC Spindle Motor for 7x14 0618 Metal Lathe Machine Replacement Part Accessories CJ0618 3B 7x12 CJ18A (110V)

    $153.95 USD
    $0.00 USD $153.95 USD
    Sale Sold out
    Tax included. Shipping calculated at checkout.
    • Specification: Item Type is Mini Lathe Motor; Material: Iron; Power: 550W; Maximum Speed: 6000RPM/min ;Motor Diameter: 83mm/3.3"; Total Length of Motor: 158mm/6.2"; Shaft Length: 20mm/0.8"; Shaft Diameter: M10 (φ10mm); Hole Distance: 50mm/1.96"

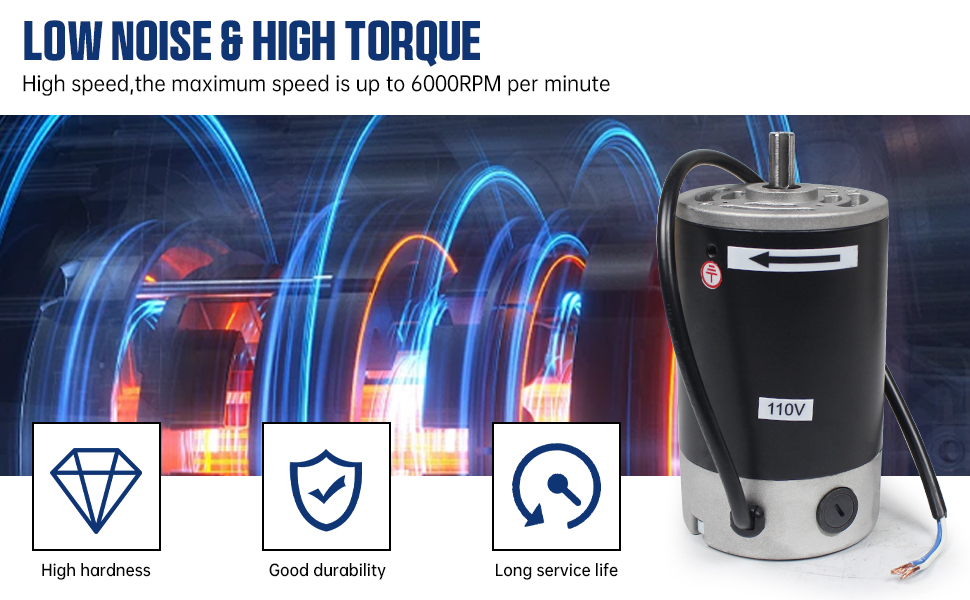

    • Low noise&high torque: This motor runs stably and has low noise. The motor has a high power of 550 W, high torque, high work efficiency, and a maximum speed of 6000RPM per minute
    • Application Models: This motor is mainly used for 0618 3B 7x12" 7x14" 0618 CJ18A and other lathes,can fully compatible
    • Material: This motor is made of high-quality iron material, which has high hardness, is not easily deformed, has good durability, and a long service life; The motor cannot be directly connected to 110V AC power and must be converted to DC power through the lathe control board
    • Standard size: The electric motor shaft length is 20mm/0.8", the shaft diameter is M10, with standard hole diameter, which is easy to install and remove.Mini lathe motor replacement,pls directly replace the old or damaged motor on the machine tool,which is convenient and reliable

    3

    Package List:

    • 1 x 550W Mini Lathe Brushed DC Motor

    ss

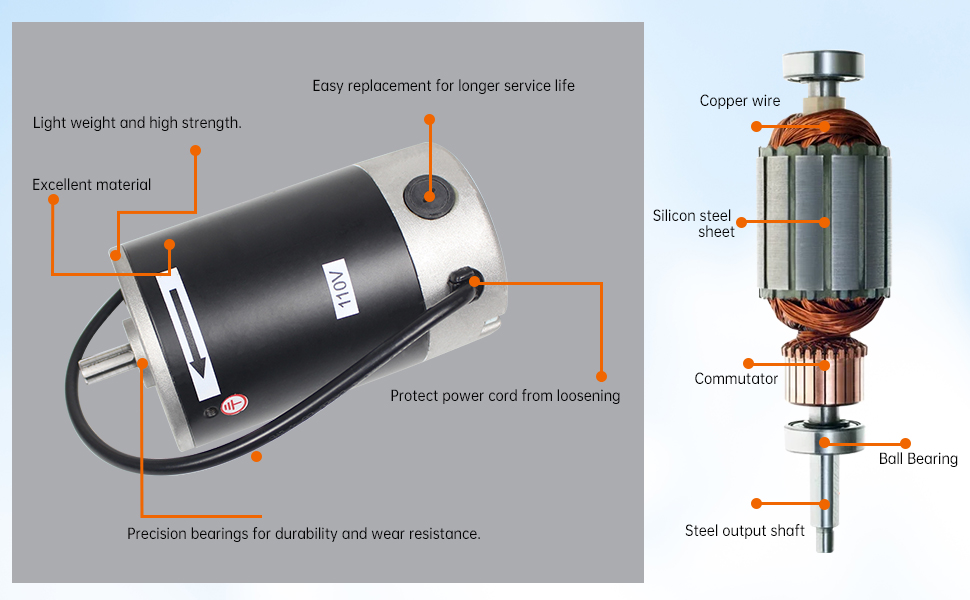

    This motor is made of high-quality iron material, which has high hardness, is not easily deformed, has good durability, and a long service life.

    s

    Application Models

    • This motor is mainly used for 0618 3B 7x12" 7x14" 0618 CJ18A and other lathes,can fully compatible.

    2

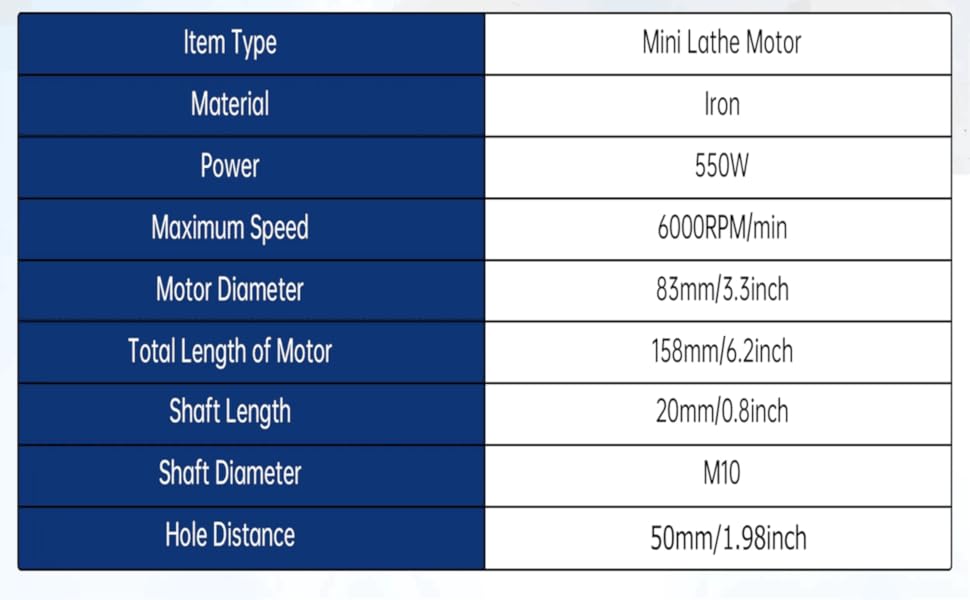

    Specification:

    • Item Type: Mini Lathe Motor
    • Material: Iron
    • Power: 550W
    • Voltage: 110V (The motor cannot be directly connected to 110V AC power and must be converted to DC power through the controller board)
    • Maximum Speed: 6000RPM per minute

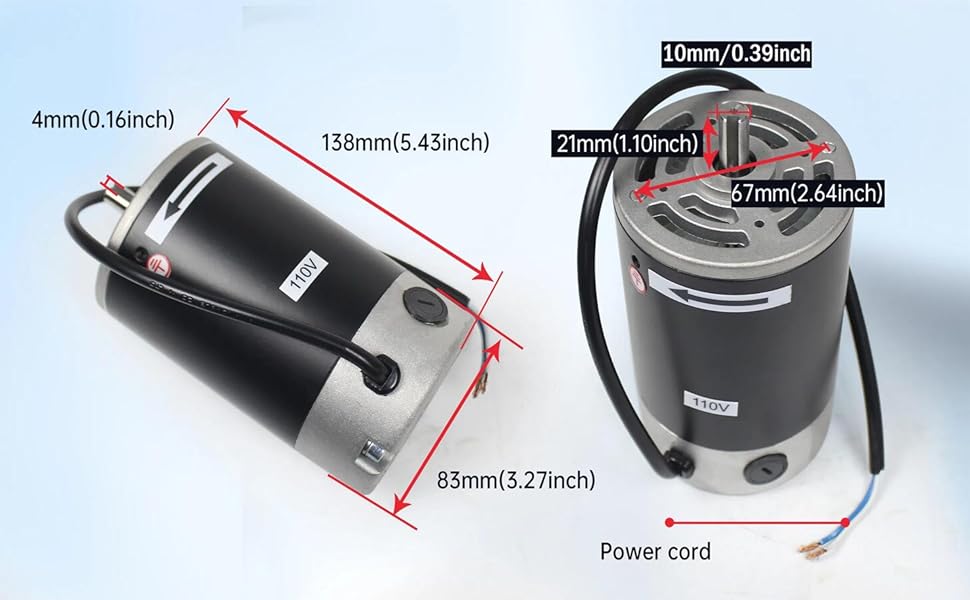

    • Motor Diameter: Approx. 83mm/3.3inch
    • Total Length of Motor: Approx. 158mm/6.2inch
    • Shaft Length: Approx. 20mm/0.8inch
    • Shaft Diameter: M10

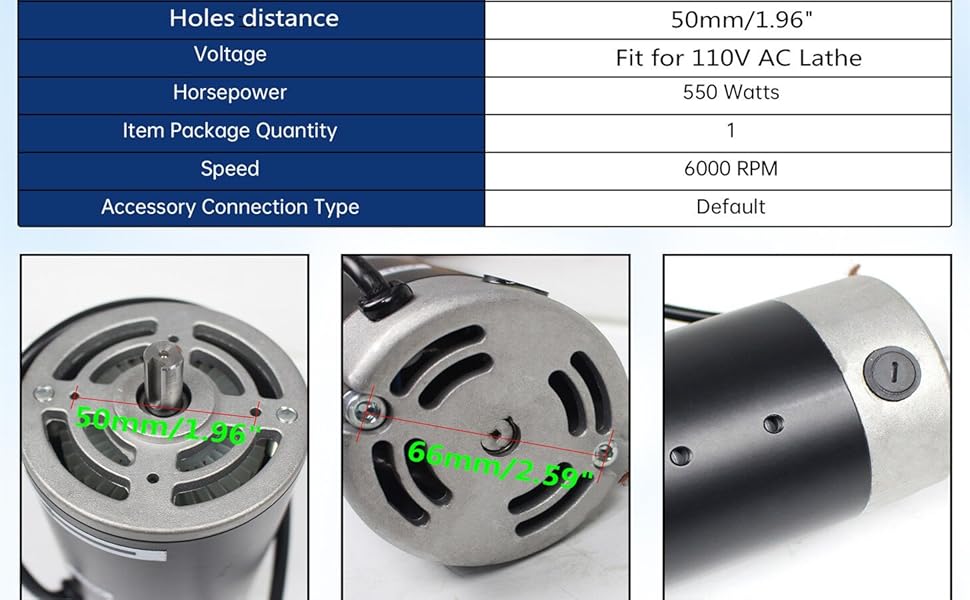

    • Hole Distance: Approx. 50mm/1.96inch

    How to use:

    • Replace the motor on the machine directly.
