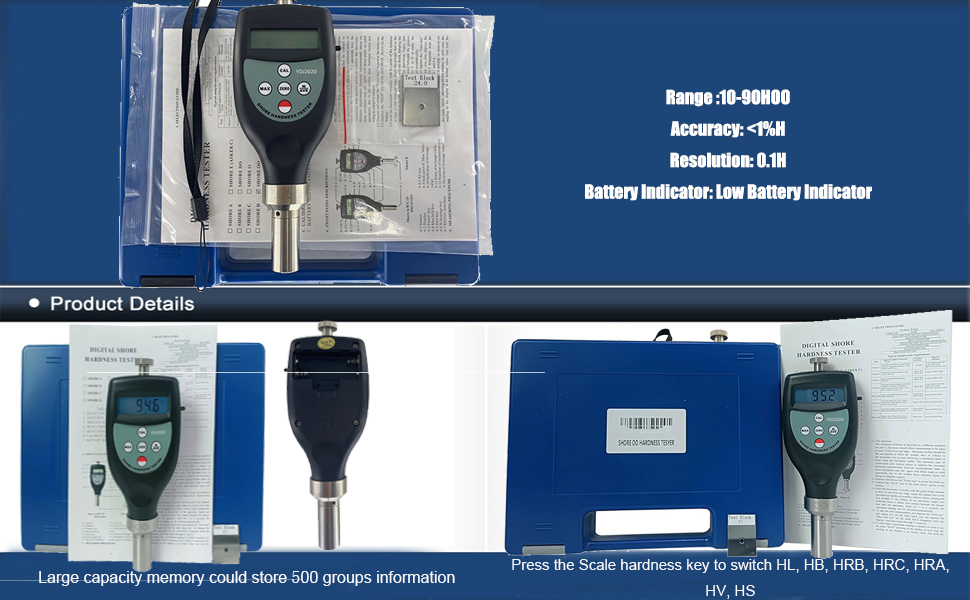

    Digital Shore OO Hardness Tester Durometer Soft Rubber Hardness Tester with Range 10 to 90HOO Soft Elastic Materials Shore Soft Rubber Hardness Sclerometer

    Digital Shore OO Hardness Tester Durometer Soft Rubber Hardness Tester with Range 10 to 90HOO Soft Elastic Materials Shore Soft Rubber Hardness Sclerometer

    $522.95 USD
    $0.00 USD $522.95 USD
    Sale Sold out
    Tax included. Shipping calculated at checkout.
    • * It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
    • * With average calculate function.
    • * Peak value deposit function.
    • * Under-voltage alarm function.
    • * Use USB/RS-232 data output to connect with PC. Provide Bluetooth data output choice.

    Sponge Foam Hardness Tester Durometer for Soft Foam Polyurethane Foam Product... VTSYIQI Digital Screen Printing Tension Meter Steel mesh Tension Measurement ... Digital Shore OO Hardness Tester Durometer Soft Rubber Hardness Tester with R... VTSYIQI Shore F Hardness Tester for The Hardness Measurement of Foam Portable... VTSYIQI MF Shore Hardness Tester Suitables for The Hardness Measurement of Fo... VTSYIQI Shore F Hardness Tester for The Hardness Measurement of Foam Portable...
    Customer Reviews
    3.0 out of 5 stars 1
    4.3 out of 5 stars 2
    5.0 out of 5 stars 2
    —
    —
    —
    Price $205.00 $340.00 $290.00 $340.00 $340.00 $390.00
    Description Main parameters: Scope of pressure needle route: 0 ~ 2.5 millimeters. The scale value: 0-100 degrees. The force of pressure needle end: 550mN~4300mN（56~438.5g). Measurement Range 0~60 N/cm Suitable for general wire mesh tension and steel mesh tension measurement. Parameters: Tested Result/Mean Value/Max.Value Unit: HOO Range :10-90HOO Accuracy: <1%H Resolution: 0.1H Battery Indicator: Low Battery Indicator Auto Switch Off :√ Operating :Temperature:0~50ºC Humidity:<80%RH SPECIFICATIONS Display:4 digits, 10 mm LCD Range:0~100 Resolution: 0.1 Presser foot: 80mm diameter Indenter: Extension 2.54mm 25.2mm Cylinder Spring force: 455gf Measurement deviation: ? ±1 Specification: Parameters: Tested Result/Mean Value/Max.Value Range :0~100HMF Resolution: 0.1HMF Accuracy :<1HMF Spring Force: 455gf Sensor Head Diameter: 25mm Sensor Foot Diamter: 80mm Battery Indicator: Low Battery Indicator *Sponge Hardness Tester Display:4 digits, 10 mm LCD *Foam Hardness Tester Range:0~100 *Digital Foam Hardness Tester Resolution: 0.1 * Shore F Durometer Tester Equipment Presser foot: 80mm diameter
    Indenter no data Suitable for screen printing and screen stencil measurement R 1.2 Spherical Radius no data no data no data
    Tested Materials no data no data Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials no data no data no data
    Hardness Value no data no data Below 20 O no data no data no data
    B0751H75VZ
    B0751H75VZ

    Digital Shore OO Hardness Tester Durometer Sponge Hardness Tester with Range 10 to 90HOO Soft Elastic Materials Shore Sponge Hardness Sclerometer

    Specification

    Parameters: Tested Result/Mean Value/Max.Value

    Unit: HOO

    Range :10-90HOO

    Accuracy: <1%H

    Resolution: 0.1H

    Battery Indicator: Low Battery Indicator

    Auto Switch Off :√

    Operating :Temperature:0~50ºC Humidity:<80%RH

    Power Supply: 4x1.5V AAA(UM-4)Battery

    2x1.5V AAA(UM-4)Battery(Stand Available) ( No Battery Included )

    Dimensions: 162x65x28 mm

    Weight :173g

    Standard Accessories

    Main Unit

    Pin Length Teat Block

    Carrying Case(B04)

    Operation Manual

    Optional Accessories

    Shore Hardness Tester Measurement Stand

    Rubber Hardness Test Block(A/D Type)

    RS-232C Data Cable with Software

    Bluetooth Data Adapter with Software
