FNIRSI USB Tester 4-28V 7A LCD USB A&C Voltage Current Power Tester Multimeter with App Software, Fast Charge Detection Trigger Capacity Ripple Measurement, PD2.0/PD3.0,QC2.0/QC3.0

Brand: FNIRSI

Color: multi-color

Features:

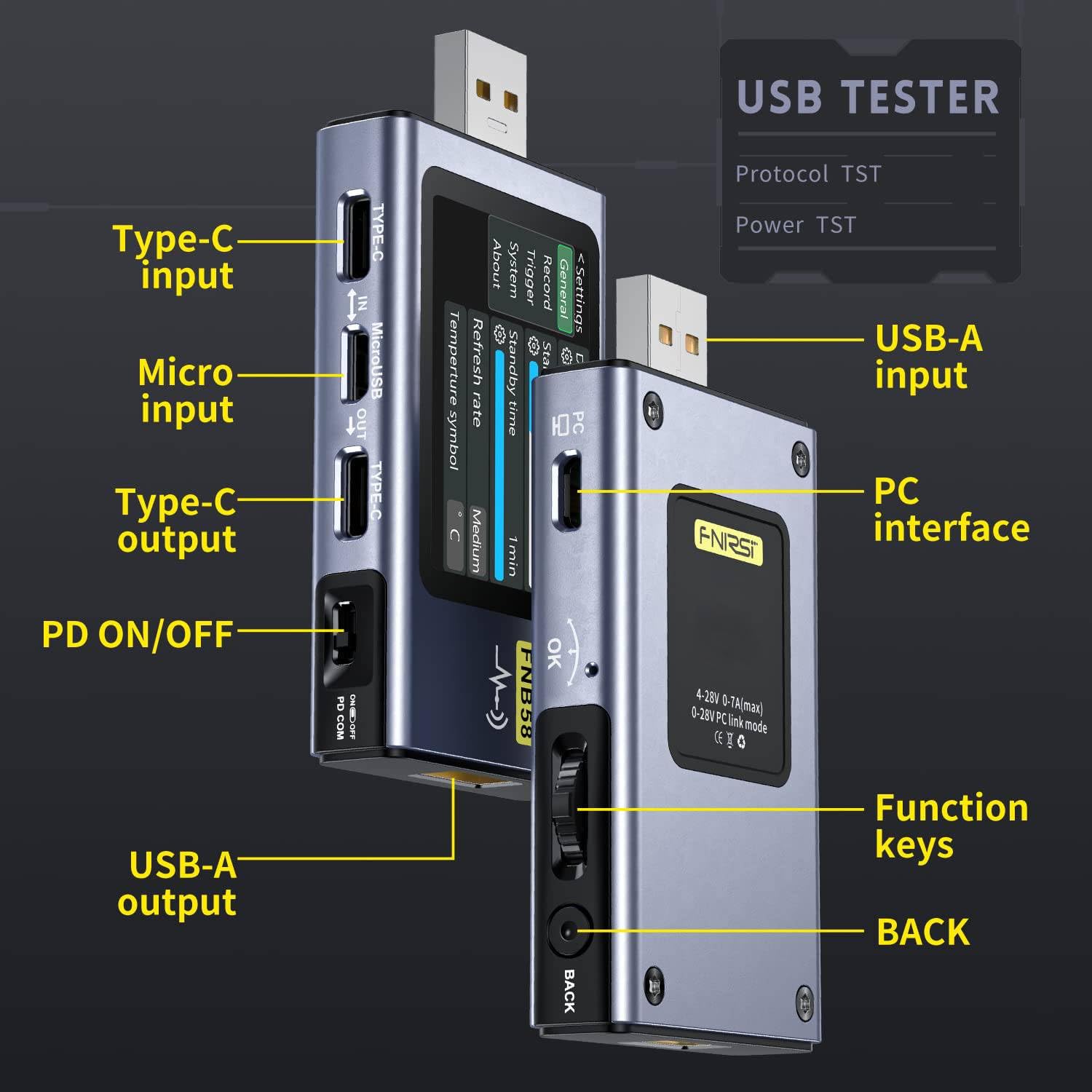

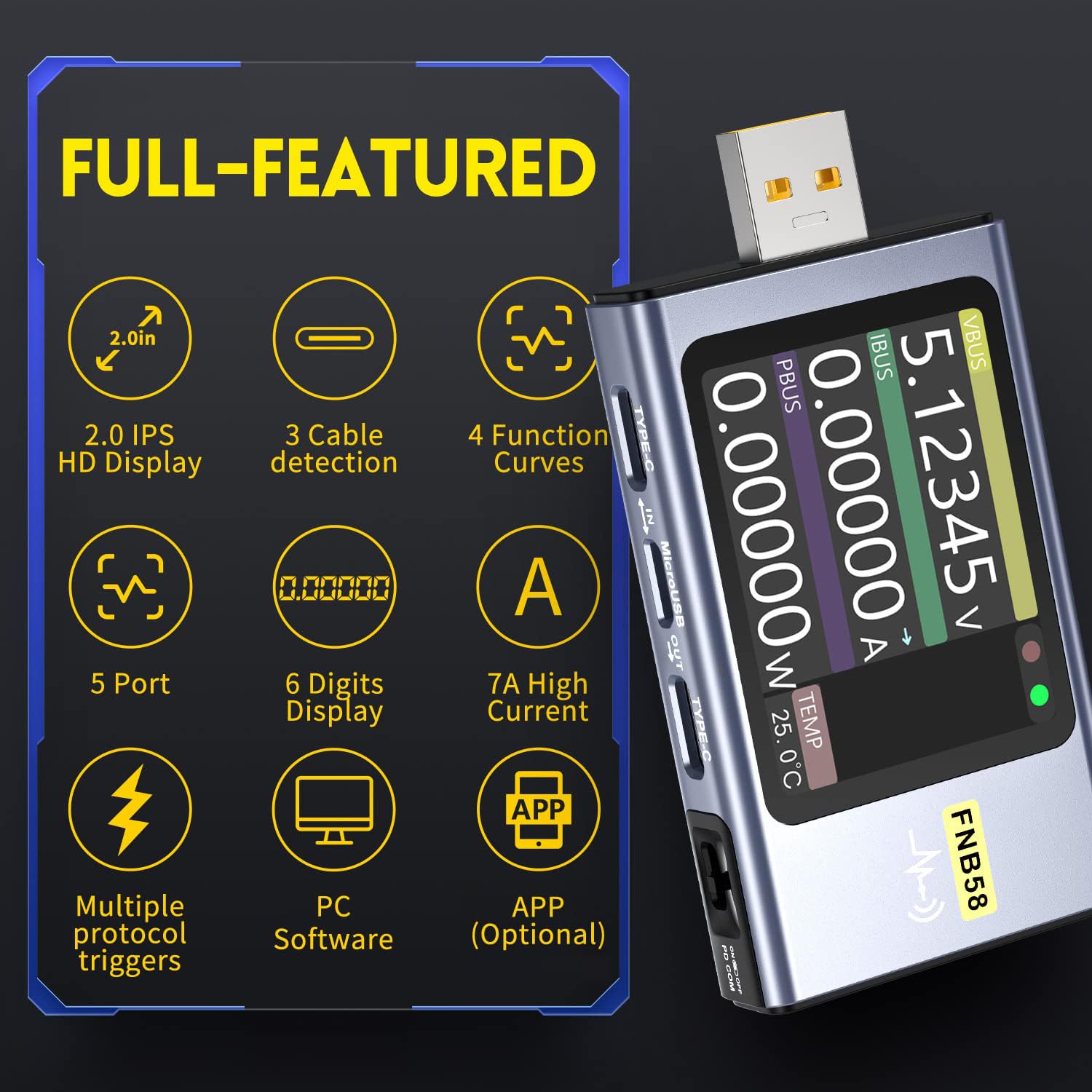

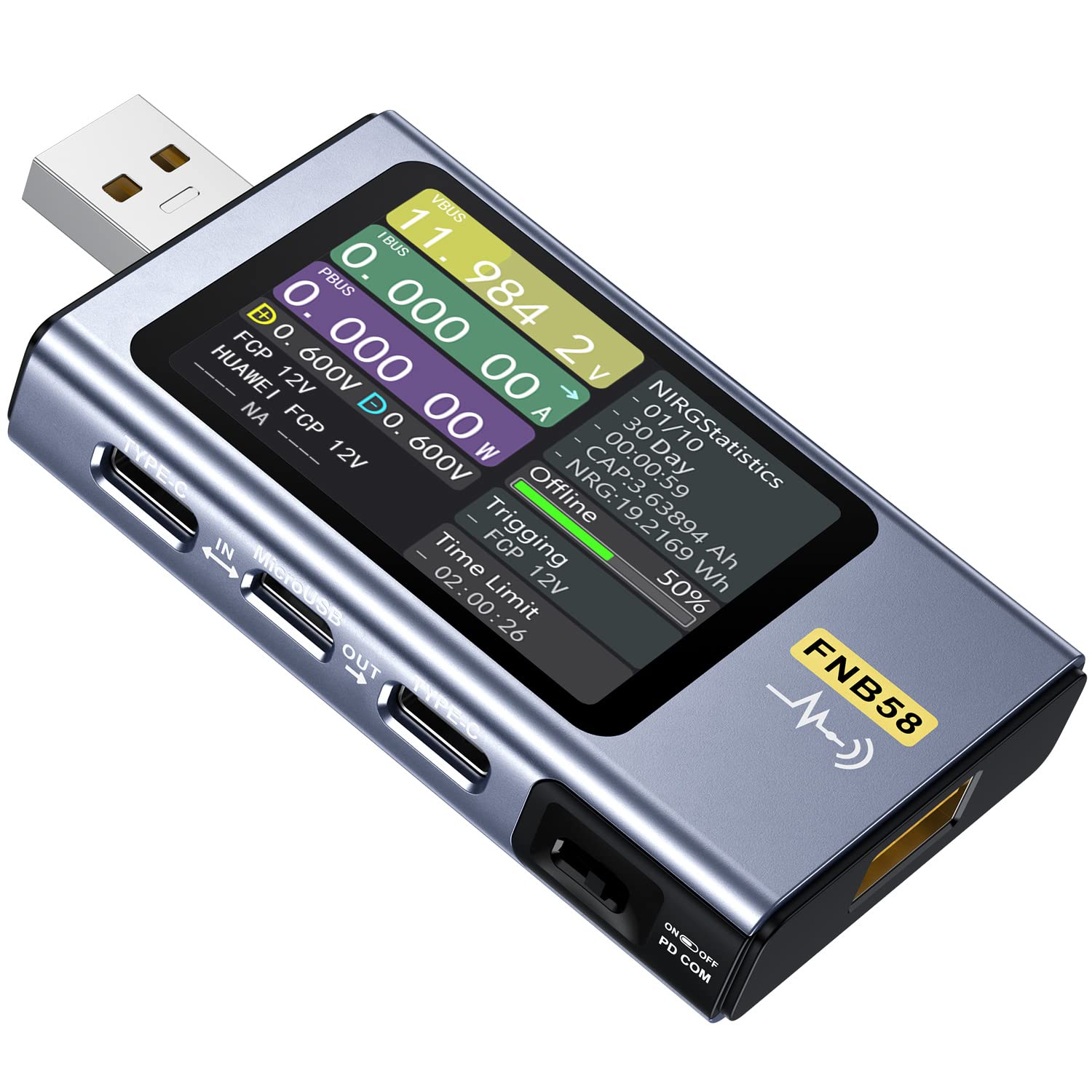

• 【Updated USB Tester】FNIRSI FNB58 has a 2.0-inch TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. It is a USB voltage and current detection meter with APP software, a mobile communication terminal with gravity sensor and a fast charging trigger
• 【Multifunction USB Digital Tester】FNB58 uses external 16-bit ADC, PD protocol physical chip. FNB58 USB tester can monitor the voltage, current, power, resistance, capacity, D+/D- voltage etc, it can be used to test the fast charging protocol of chargers

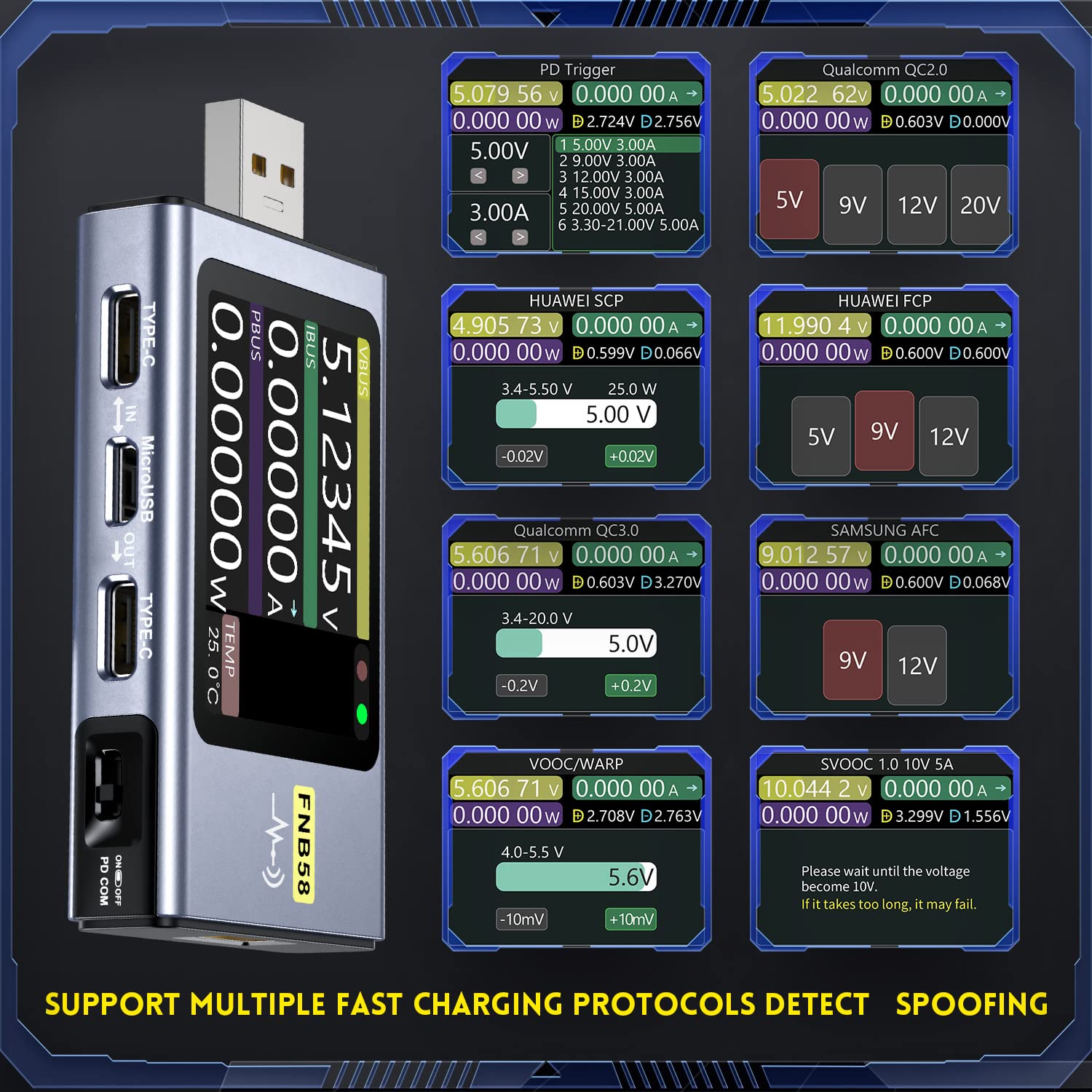

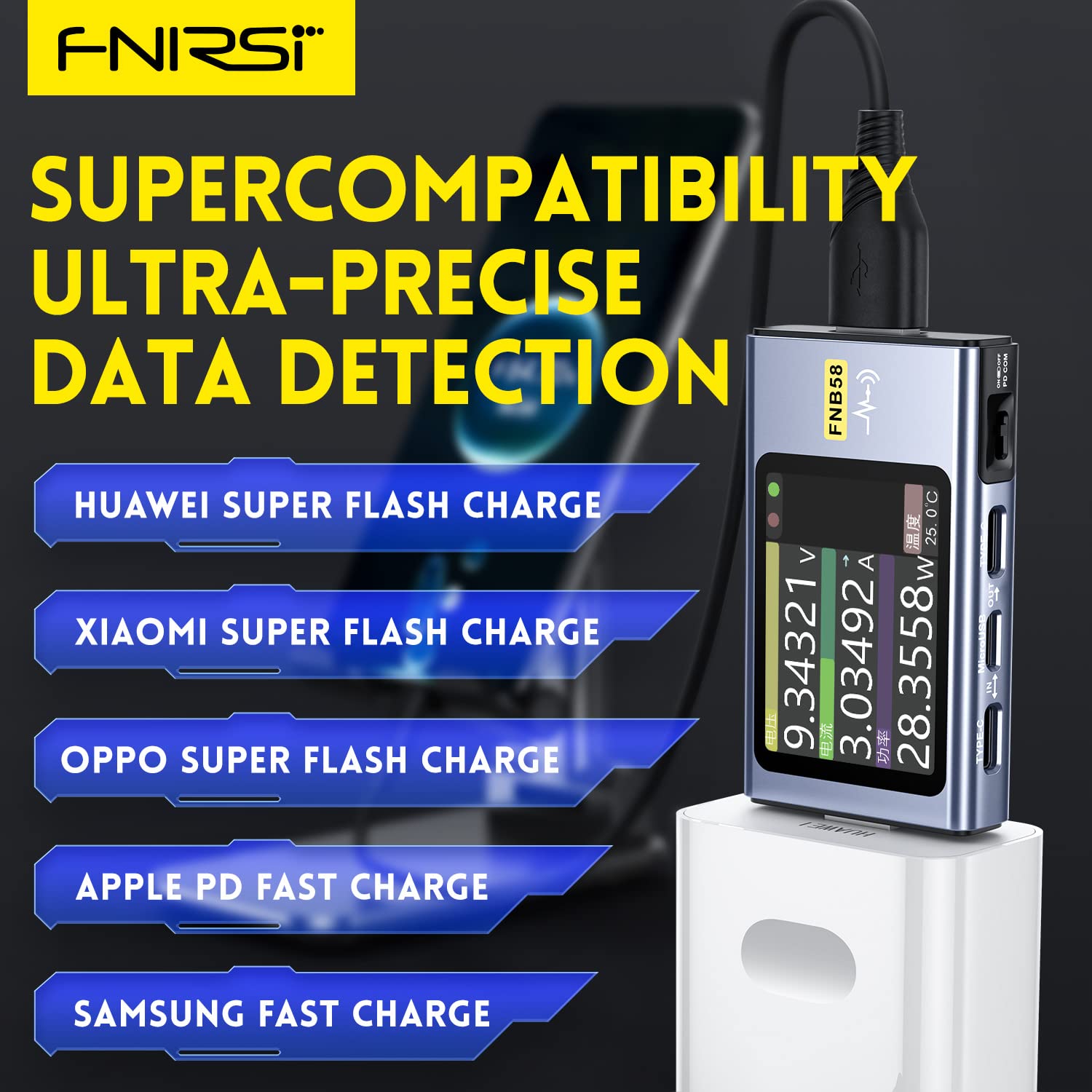

• 【Fast Charge Protocol Trigger Detection】FNB58 supports QC2.0/QC3.0, FCP/SCP, AFC, PD2.0/3.0, VOOC/WARP, Super VOOC 1.0/2.0 trigger. The above protocols all support automatic monitoring. MTK-PE automatic detection. Support QC2.O->PD2.0 protocol conversion
• 【Parameter Recording】The highest six-digit display of voltage, current and power. 10 sets of switchable capacity, power etc. Support low-speed waveform drawing, 2 sps-100 sps sampling rate. Support high-speed ripple drawing, up to 4 M sps sampling rate
• 【USB tester detection function】The resistance measurement of the wire by the differential pressure method. E-Marker Cable chip reading. DASH Cable data reading. Record of startup time. Onboard temperature measurement. PD monitor. Analog DASH cable
• 【Note】In order to respond to the environmental protection policy and reduce the use of paper, FNB58 does not come with paper manuals. You can visit the website of FNIRSI on the box to download the manuals, including product update firmware, APP, etc

model number: FNIRSI-001

Part Number: FNIRSI-001

Package Dimensions: 4.5 x 3.3 x 0.9 inches
