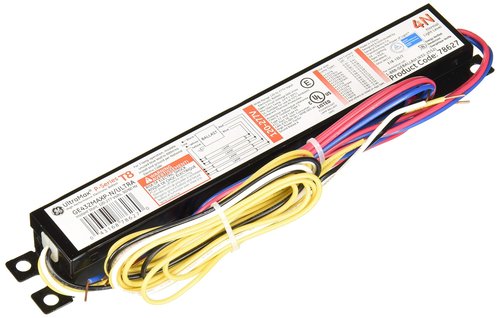

GE 78627 GE432MAX-N/ULTRA LFL UltraMax Electronic High Efficiency Multivolt Instant Start Ballast for 4 or 3- F32T8

Brand: GE Lighting

Color: Black

Features:

• Mount length: (M) 9.0-Inch / Mount width: (X or F) 0.9-Inch / Mount slots: (MS) 0.3-Inch
• GE's ballasts are among the highest energy-efficient ballasts available
• For 4 or 3- F32T8
• Starting method: Instant start
• Ballast type: Electronic

Binding: Tools & Home Improvement

model number: 78627

Part Number: 78627

Details: From the Manufacturer

GE 78627 GE432MAX-N/ULTRA, LFL UltraMax Electronic High Efficiency Multivolt Instant Start Ballast Energy saving high efficiency instant start electronic ballast (> 90-percent). Multi-Voltage Technology handles voltage from 120 to 277V. UL Type CC Rating provides protection against arcing in electrical devices. Anti-Striation Control for better light quality, with no striations. UL 55C Ambient Rating-High Temperature Protection Circuit. Cold temperature-20F Minimum Starting Temperature. Application: 4 or 3-F32T8 120 to 277 "N" 0.87 BF, Category: Linear Fluorescent, Ballast Type: Electronic-High Efficiency Multivolt Instant Start. Starting Method: Instant start. Lamp Wiring: Parallel. Line Voltage Regulation (+/-): 10-percent. Ambient Temperature (MAX): 40 Degree C (104 Degree F). Ballast Factor: Normal. Power Factor Correction: Active. Sound Rating: A (20-24 decibels). Additional Info: Anti-striation control, Auto-restart, Thermally protected. ELECTRICAL CHARACTERISTICS. Supply Current Frequency: 50-Hz/60-Hz. Product Code: 78627. Description: GE432MAX-N/ULTRA. Mounting dimensions : Mount Length: (M) 9.0 in (228.60 mm) Mount Width (X or F) 0.9 in (22.09 mm) Mount Slots (MS) 0.3 in (8.20 mm). Weight: 1.10-lbs Exit Type: Side. Remote Mounting Wire Gauge: 18 AWG Lead lengths Qty Exit Length (± 1-Inch) Black 1 Left 25.0 in (635 mm) Blue 2 Right 31.0 in (787 mm) Red 2 Right 31.0 in (787 mm) White 1 Left 25.0 in (635 mm) Yellow 2 Left 39.0 in (991 mm).

EAN: 0043168786270

Package Dimensions: 10.0 x 2.8 x 1.4 inches
