GE Washer Door Lock WH01X29528 (OEM) for GFW550SSN5WW - Garsoo
GE Washer Door Lock WH01X29528 (OEM) for GFW550SSN5WW - Garsoo
Regular price
$45.99 USD
Regular price
$85.99 USD
Sale price
$45.99 USD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

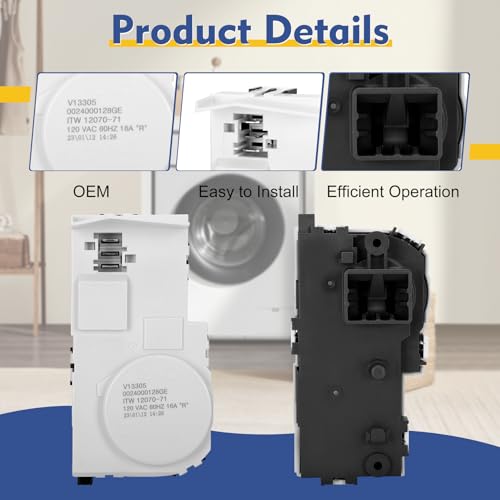

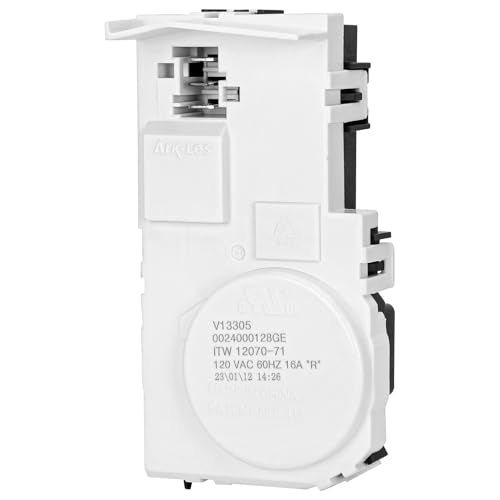

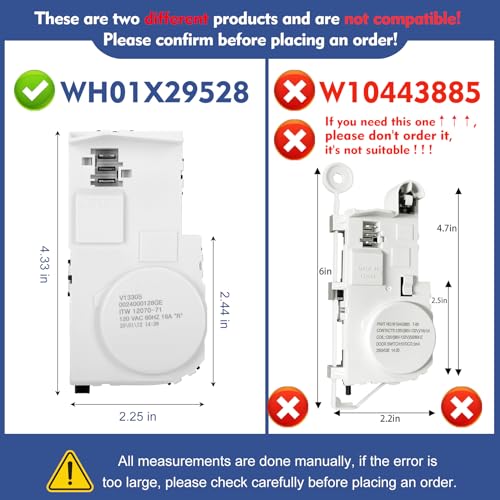

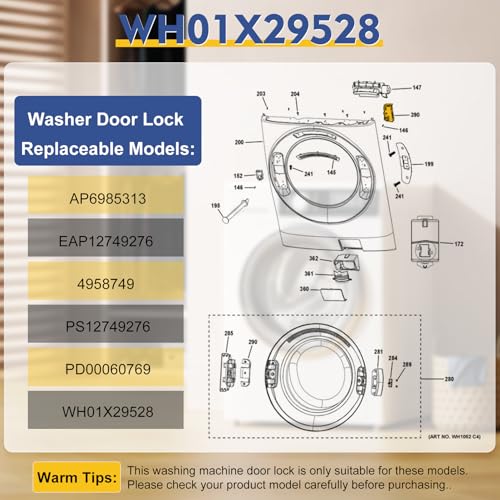

- 【Part #WH01X29528】WH01X29528-ge washer door lock can be replaced with AP6985313, EAP12749276, 4958749, PS12749276, PD00060769, WH01X29528 models. ITW 12070-71, V13305, 0024000128GE, 120 VAC 60HZ 16A "R". WH01X29528 ge door lock can only replace the above models, please check carefully to confirm. The door lock operating parameters are as follows: Soenoid Voltage:96 VAC-132 VAC.50/60 Hz; Impulse:40±10 ms; Min gap between impulses: 1.5s; Need pause for 180s after 12 impulse.

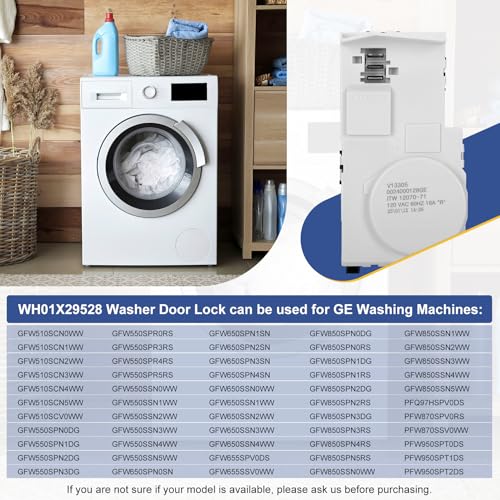

- 【Door Lock WH01X29528】Upgrade WH01X29528 Washer Door Lock can be used for ge Washing Machines: GFW510SCN0WW, GFW510SCN1WW, GFW510SCN2WW, GFW510SCN3WW, GFW510SCN4WW, GFW510SCN5WW, GFW510SCV0WW, GFW550SPN0DG, GFW550SPN1DG, GFW550SPN2DG, GFW550SPN3DG, GFW550SPR0RS, GFW550SPR3RS, GFW550SPR4RS, GFW550SPR5RS, GFW550SSN0WW, GFW550SSN1WW, GFW550SSN2WW, GFW550SSN3WW, GFW550SSN4WW, GFW550SSN5WW, GFW650SPN0SN, GFW650SPN1SN, GFW650SPN2SN, GFW650SPN3SN, GFW650SPN4SN, GFW650SSN0WW, GFW650SSN1WW, GFW650SSN2WW, GFW650SSN3WW, GFW650SSN4WW, GFW655SPV0DS, etc.
- 【Ge Washer Door Latch WH01X29528】Attention ! ! ! Improper installation may cause the product coil to burn out. Please carefully check the product model, parameters and understand the installation instructions before installation!! The blue dot is the PASS point of the functional test machine, indicating that the product has passed the functional test. If the coil was burned out, which must be caused by a large current flowing through it. ITW tests the product function under low voltage 96V pulse width 40ms conditions, so it is impossible to burn out the coil.
- 【ATTENTION】GE washer lid lock switch WH01X29528 is OEM, comes from the original factory, and is of high quality. WH01X29528 clothes washer door lock can help you solve the following situations: ① The washing machine door cannot be opened or closed. ② The washing machine displays an error code about a door lock failure. ③The washing machine door lock has aged or stuck due to long-term use. ④ The washing machine door lock has worn or broken due to improper operation. Please note: This is for reference only as other projects may cause the same situation.
- 【Excellent Service】 Letting you have a pleasant shopping experience is our service tenet. We offer a 1-year after-sales service on our products. During this period, if you are not satisfied with the quality of the product, you can request an exchange or a refund. Please give us a chance to help you solve your problem before posting suggestions, and we will give you a satisfactory reply within 12 hours.
