Generic MagWLED-1, WLED Controller, 5V and 12V USB-C Power Delivery, WLED Pre-Installed, Green

Brand: Generic

Color: Green

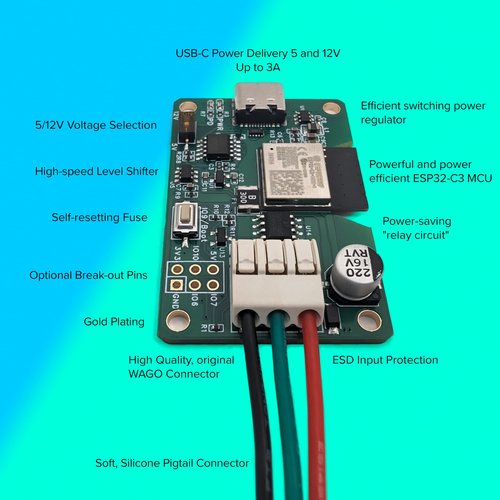

Features:

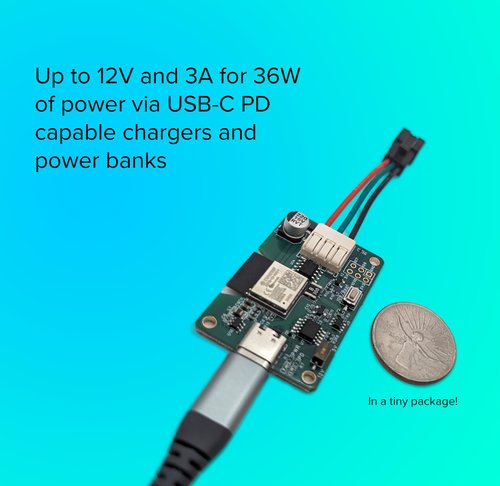

• 5V and 12V USB Power Delivery Support allows you to power 12V LED strips from USB-C!
• Low-profile Wago terminal block for easy and secure electrical connections
• Fast logic level shifter and in-line 249 ohm resistor ensuring excellent data signal quality
• Built-in electronic (FET) "relay" which reduces current draw to just 80mA @ 5V when lights are turned off
• Easy flashing of custom firmware or upgrades through the USB-C connector
• 3A resettable fuse to protect from unsafe conditions
• Electo Static Discharge (ESD) protection circuits
• Mounting holes for easy installation
• High efficiency switching voltage regulator ensure low power consumption and less heat
• High quality 4-layer PCB with gold plated connectors (ENIG) for durability and corrosion resistance

model number: MWLED1

Part Number: MWLED1

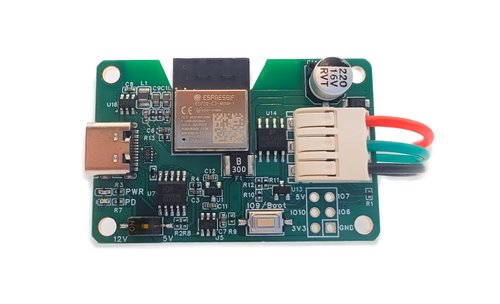

Details: DIY ESP32-C3 based controller for the Open Source WLED software. This controller has several unique features, including the ability to drive 12V LED strips from USB chargers and battery banks that support 12V USB Power Delivery. The tiny form factor and high power output makes it an excellent choice for small to medium sized projects, including battery powered projects and wearables. Designed in Miami, USA.

Package Dimensions: 4.5 x 3.0 x 0.3 inches
