About this item

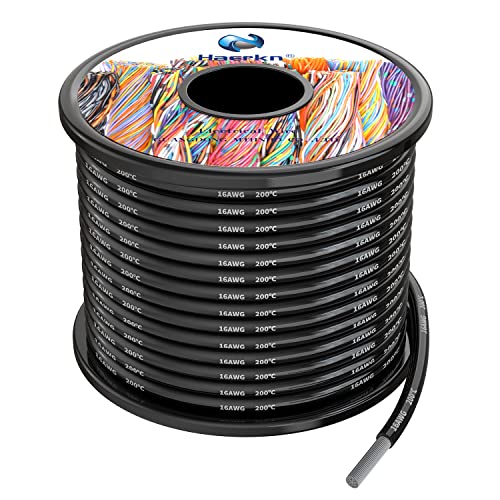

• Material : Silicone rubber+1.3mm² High-purity oxygen-free Tinned Copper wire
• Colors:Black color; Wire Length :50ft/15.3Meters Spool
• Voltage Rating: 600 Volts; Rated temperature: -60 ℃ - + 200℃; Bear Current:12A ;16Gauge silicone wire - super flexible 252 strands of 0.08 mm Tinned copper wire - Highly efficient - Super low impedance for a highly efficient connection
• Conductor: High purity Stranded oxygen-free copper with tin-plated, specification features high conductivity, low resistance and soft, can be bent arbitrarily, easy to welding, stripping, crimping terminals,connect,cut.
• Widely used for Car,batteries,lamps,household appliances,electric heating appliances,model planes,model cars,model ships,meters,instruments,motor lead wire,digital fields and led strip lights.

Colors:Black color;
Wire Length :50ft/15.3Meters each color

Nominal Voltage: 600V
Testing Voltage:2000V
Temperature Range:-60 ℃ to 200 ℃
Conductor: Tinned Copper
OD Tolerance: ±0.1mm
Insulator: Silicone

Conductor：
(1) Gauge:16AWG(1.3mm²)
(2) Copper Number/Wire Diameter:252/0.08mm
(3) Diameter: ∮1.53mm

Insulator:
(1) Jacket Thick:0.8mm
(2) Over Diameter:3mm

Bear Current:12A
