About this item

• Material : Silicone rubber+0.35mm² High-purity oxygen-free Tinned Copper wire
• Voltage Rating: 600 Volts; Rated temperature: -60 C - + 200 C; Bear Current:3.0A

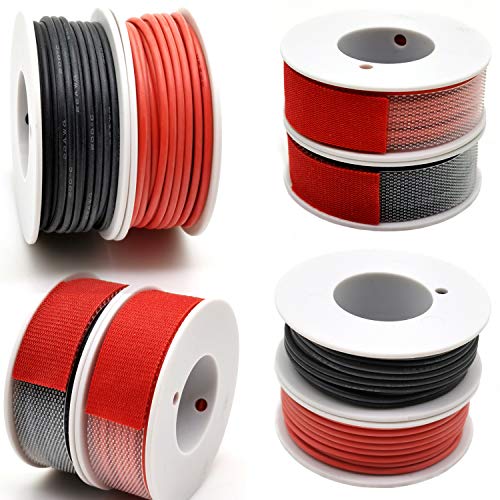

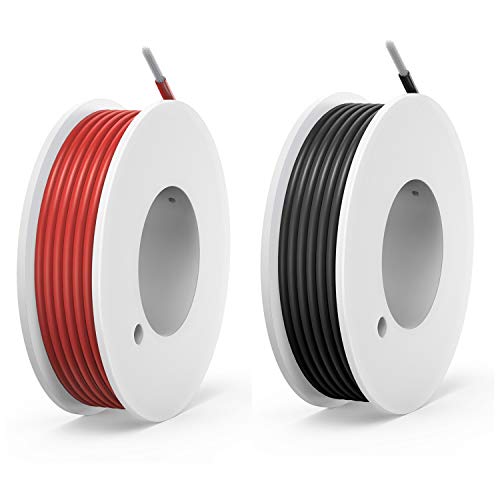

• Colors:Black and Red; Wire Length :8Meters / 26Ft each color/spool
• 22 Gauge(0.35mm²) silicone wire - super flexible 60 strands of 0.08 mm Tinned copper wire - Highly efficient - Super low impedance for a highly efficient connection
• Conductor: High purity Stranded oxygen-free copper with tin-plated, specification features high conductivity, low resistance and soft, can be bent arbitrarily, easy to welding, stripping, crimping terminals,connect,cut

Total 2 Colors: Black、Red
Length：each color 26 feet(8 Meters)

Nominal Voltage: 600V
Testing Voltage:2000V
Temperature Range:-60 ℃ to 200 ℃
Conductor: Tinned Copper
OD Tolerance: ±0.1mm
Insulator: Silicone Rubber

Conductor：
(1) Gauge:22AWG(0.35mm²)
(2) Copper Number/Wire Diameter:60/0.08mm
(3) Diameter: ∮0.78mm

Insulator:
(1) Jacket Thick:0.55mm
(2) Over Diameter:1.7mm

Bear Current: 3.0A
