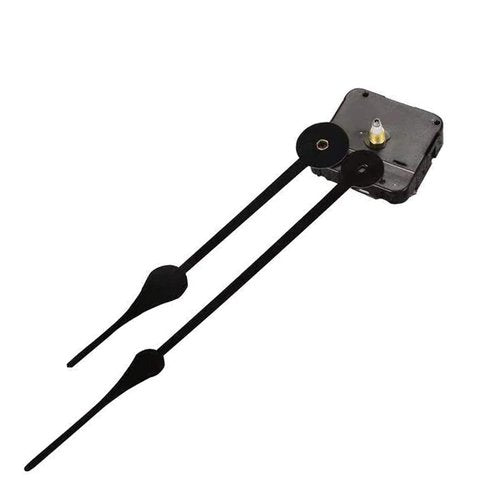

High Torque I Shaft Hands Quartz DIY Wall Clock Movement Mechanism with 9.1 Inch Long Spade Hand Battery Operated Repair Parts Replacement, 3/10 in Max Dial Thickness, 4/5 in Total Length

Brand: HILLHOME

Color: Black

Features:

• ✔️ High torque clock movement with metal hook: I shaft, drive long clock hands (10 mm to 450 mm), with 230 mm/ 9.1 inch long hand to fit dials up to 56 cm/ 22 inches in diameter. Good for repairing, replacing or making a clock by yourself. The simple style clock movement can match to diverse colors, patterns, shapes clock panel, it will not stand out, good movement will work well.
• ✔️Accurate time-keeping motor:Size-total shaft length is 20 mm (4/ 5 inch), thread length is 11.7 mm (9/ 20 inches); suitable for 4 - 8 mm (4/ 25 - 3/ 10 inch) thickness clock panel; Jump second movement, high torque motor available. Features high precision clock mechanism, which offers watchmaker's accuracy and dependability; powered by a AA battery.

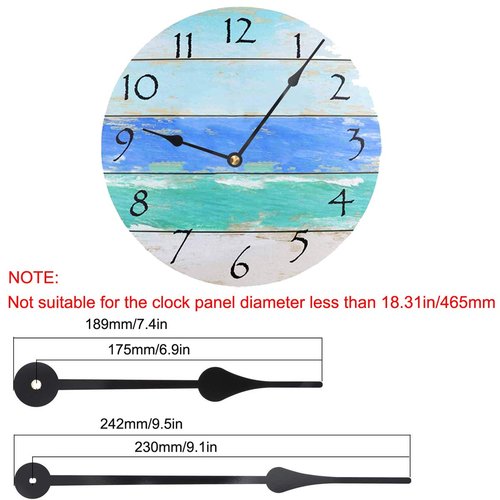

• ✔️Size from the center of the hole to the tip: the hour hand is approx. 175 mm/ 6.9 inches long; The minute hand is about 230 mm/ 9.1 inches in length.
• ✔️ Compatible clock: applicable to cross-stitch, three-dimensional embroidery, craft clock, frameless draw clock, and especially suitable for DIY quartz wall clock replacement movement parts, etc. INSTRUCTIONS - Included along with the movements.
• ✔️ Warm notice: when you install this clock movement kit, please keep the hour hand and minute hand parallel, and please check the sizes before buying.

Binding: Kitchen

Details: Features:
Good clock replacement: This kit is good size replacement both in terms of the shaft and the size of the hands. It can be a replacement for your broken clock.

Simple style clock movement: It can match to diverse colors, patterns,shapes clock panel, it will not stand out, good movement will work well. Simple design, easy to use.

Wide application: You are enable to use it to repair,replace or make a clock; Applicable to cross-stitch, three-dimensional embroidery, craft clock, frameless draw clock, etc.

Material: plastic and aluminum
Second hand motion: Jump
Accuracy Within ±30 seconds deviation each month (in normal temperature)
Power: 1.5 V AA 1 x battery (not included)
Please DO NOT USE Alkaline battery,Rechargeable batteries,they will damage the movement.

Dimensions:
Case size: approx. 56 x 56 x 17 mm (2.2 x 2.2 x 0.67 inches)

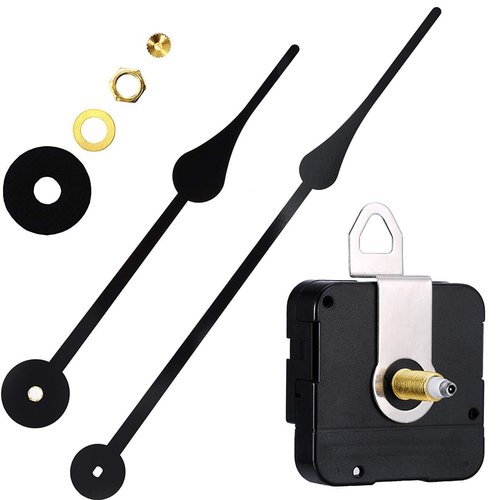

Package included:
1 x Quartz clock movement
1 x Minute hand
1 x Hour hand
1 X Plastic washer
1 X Brass washer
1X Brass nut
1 x Metal hook
1 x User manual

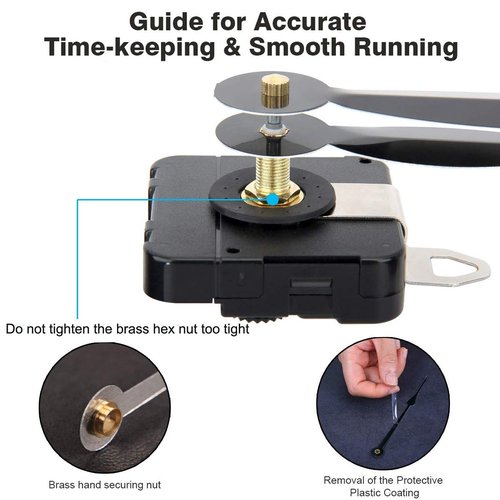

Kindly note:
- The hour and minute hands had a protective plastic coating that needs to be carefully removed.
- Be careful not to bend the hands with too much pressure.
- Do not tighten the brass hex nut too tight
- Press hard to get all clock hands in place
- Check if all hands are aligned
- Check the size before buying.

EAN: 8414802794951

Package Dimensions: 12.7 x 2.5 x 2.1 inches
