    HSPD Square Whole Home Surge Protective Device, Type 1 SPD, Whole House Surge Protector, AC Surge Protection, 120/240VAC (HSPD-25)

    HSPD Square Whole Home Surge Protective Device, Type 1 SPD, Whole House Surge Protector, AC Surge Protection, 120/240VAC (HSPD-25)

    $86.95 USD
    $0.00 USD $86.95 USD
    Sale Sold out
    Tax included. Shipping calculated at checkout.
    • Whole House Surge Protection: The HSPD is a whole-house surge protector that provides surge protection for all appliances connected to the electrical system
    • Compact High-Capacity Design: The HSPD offers high capacity while maintaining a compact design. With a surge capacity of up to 25/50/80kA, it saves space without compromising performance
    • High Compatibility: The HSPD is compatible with circuit breakers from any brand. Its durable casing makes it suitable for both indoor and outdoor installations
    • Ultimate Protection Module: The U-SPM is the core technology of the HSPD. It effectively absorbs voltage spikes, extending the lifespan of electronic devices and appliances, reducing the need for frequent replacements and repairs. This saves you time and money
    • After-Sales Service: If you need assistance, please contact us directly. We will provide you with high-quality after-sales support

    HSPD-25-01
    Product Catalog Number HEPD-25
    Maximum Surge Current 25 kA
    System Voltage 120/240 V
    INOM 10kA
    MCOV 150V L-N, 300V L-L
    VPR 700V L-N, 1200V L-L
    Connection Method Parallel, 14 AWG
    Wire Length 17.5 ± 2 in. (445.5 ±50 mm)
    Operating Temperature -40°F to +149°F (-40°C to +65°C)
    Storage Temperature -40°F to +149°F (-40°C to +65°C)
    Frequency 50/60 Hz
    Diagnostics Green Status LED
    HSPD-25-03

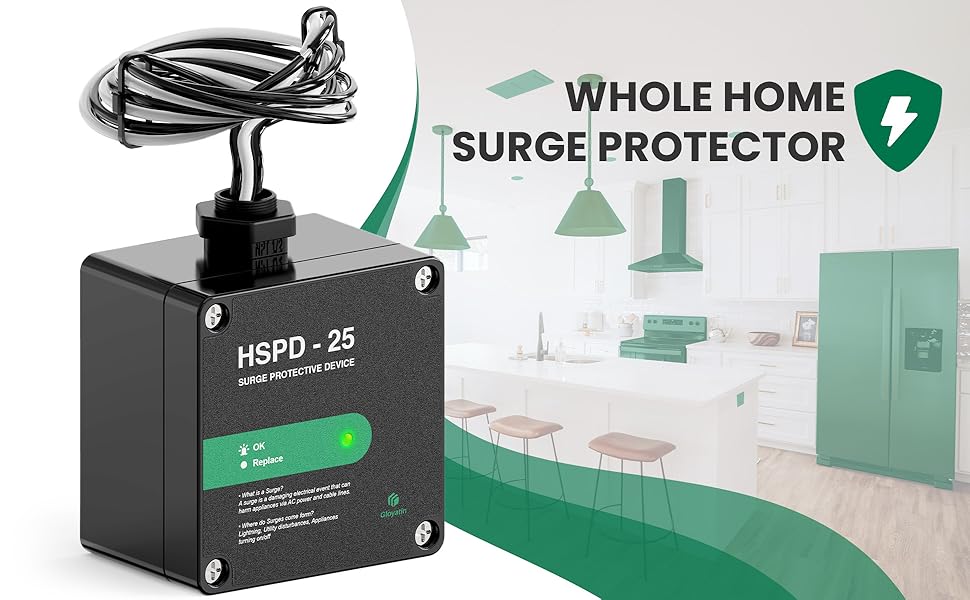

    Whole Home Surge Protective Device

    The HSPD-25 is a whole-house surge protection device equipped with the U-SPM ultimate surge protection module. Its core technology allows it to absorb destructive surges in the circuit, reducing the need for equipment replacement and repairs, ultimately saving you time and money. The clear indicator lights provide a straightforward display of its protection status, while the sturdy, durable casing makes it suitable for both indoor and outdoor installations. As a surge protection device, the HSPD-25 is compatible with circuit breakers from any brand. Its compact design saves space while providing surge protection with a capacity of up to 25,000 amps, safeguarding all appliances connected to your electrical system.

    HSPD-25-04

    HSPD-25-05
    Where Do Surges Come From?

    In the past, surges were primarily attributed to extreme weather events like thunderstorms and lightning. However, research by Gloyatin's R&D team shows that, in reality, 80% of surges come from everyday occurrences. These include unstable power supplies, outdated electrical systems, frequent appliance switching, and electrical equipment failures. While surges from extreme weather can be more destructive, those caused by everyday events should not be underestimated.

    HSPD - Your Solution to Surge Protection

    What is a Surge? What Harm Can It Cause?

    A surge is a destructive electrical event that involves a sudden and intense rise in voltage in the power system. It can damage electrical appliances through AC power lines and cables. Surges may cause equipment failure, power system collapse, and reduced lifespan of electrical devices. While the surge voltage typically lasts only milliseconds to a few seconds, its impact can be significant.

    Why choose HSPD as your surge protection solution?

    • Equipped with U-SPM for comprehensive protection and enhanced safeguarding
    • Compact design saves space
    • Supports higher surge capacity
    • Simple and easy-to-read status indicators
    • Durable casing suitable for both indoor and outdoor installation
    HSPD-25 HSPD-50 HSPD-80
    Price $48.19 $58.15 $65.16
    Maximum Surge Current 25,000 Amps 50,000 Amps 80,000 Amps
    System Voltage 120/240 V 120/240 V 120/240 V
    Status Indicator Green Status LED Green Status LED Green Status LED
    Dimensions (inches) 3.3X3.2X2.2 3.3X3.2X2.2 3.3X3.2X2.2
    Capacity to Size Ratio 1076.10 2152.20 3443.53
    HSPD-25-02

    HSPD Whole House Surge Protection Series

    HSPD-25 is part of the HSPD modular surge protection series, which includes the following models: HSPD-80, HSPD-50, and HSPD-25. The HSPD-25 is equipped with a surge capacity of 25,000 amps, making it a good choice for reliable protection within the HSPD series.

    The entire HSPD product line is designed to protect household electrical and electronic equipment from voltage transients and surge disturbances on AC power lines, and is suitable for both indoor and outdoor use. Gloyatin's HSPD series team has dedicated 8 years to the field of electrical safety, accumulating technical expertise and experience that are more professional and specialized. This focus is at the core of the exclusive U-SPM technology.

    HSPD-80

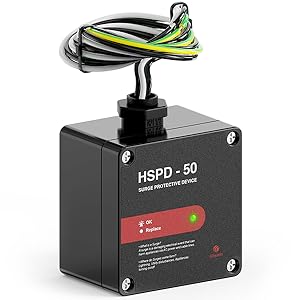

    HSPD-50

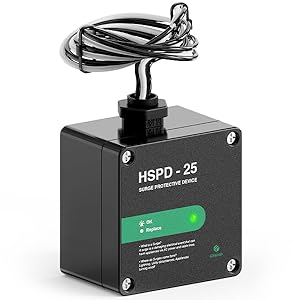

    HSPD-25

    HSPD-25-07

    Please Note

    If the SPD experiences issues during startup, it is likely due to grounding or misuse problems. You can receive after-sales support from Gloyatin's technical service center.
