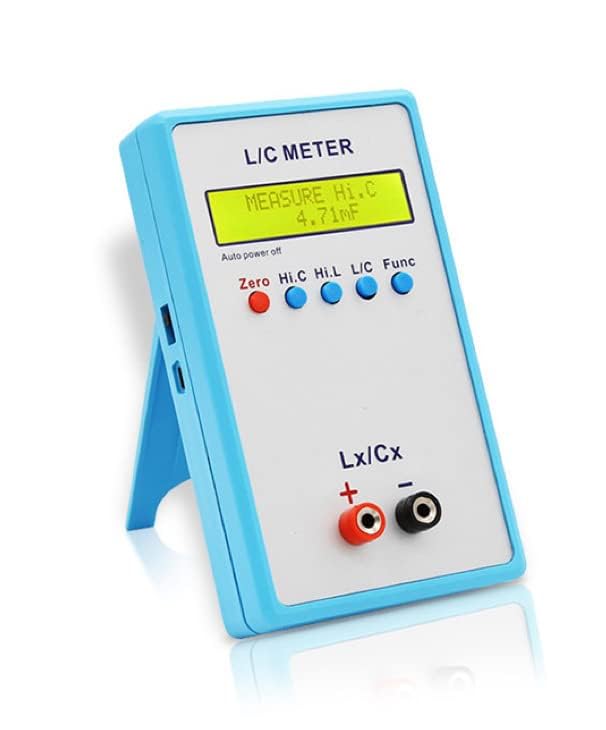

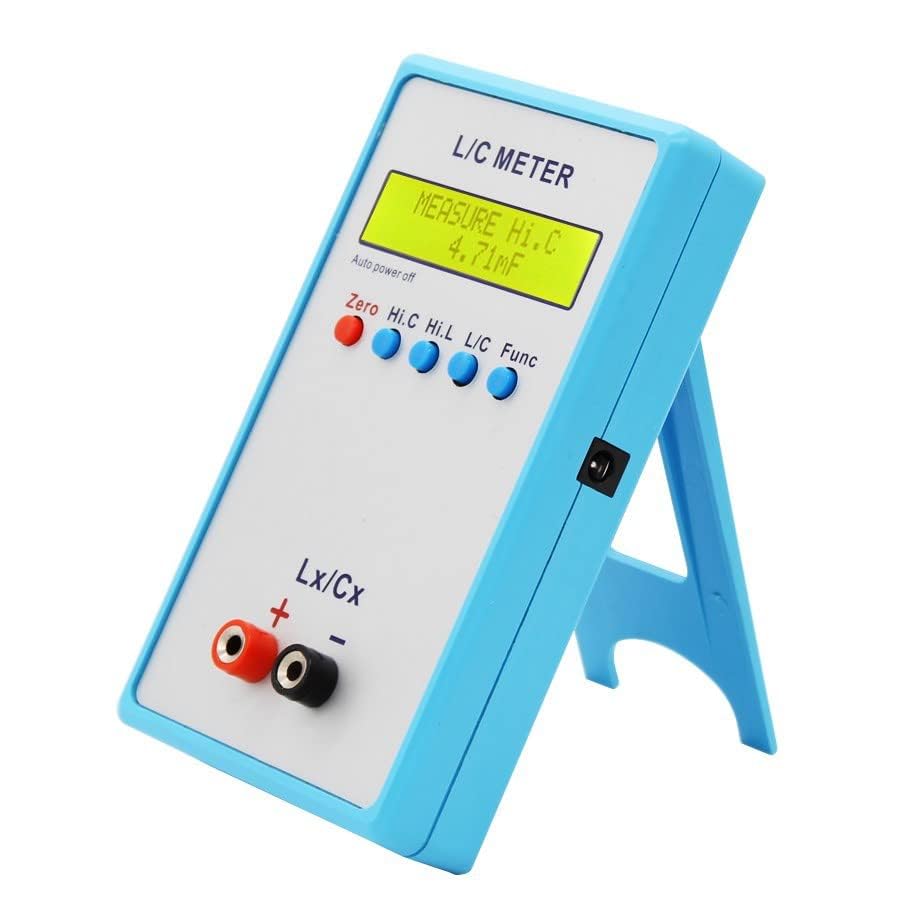

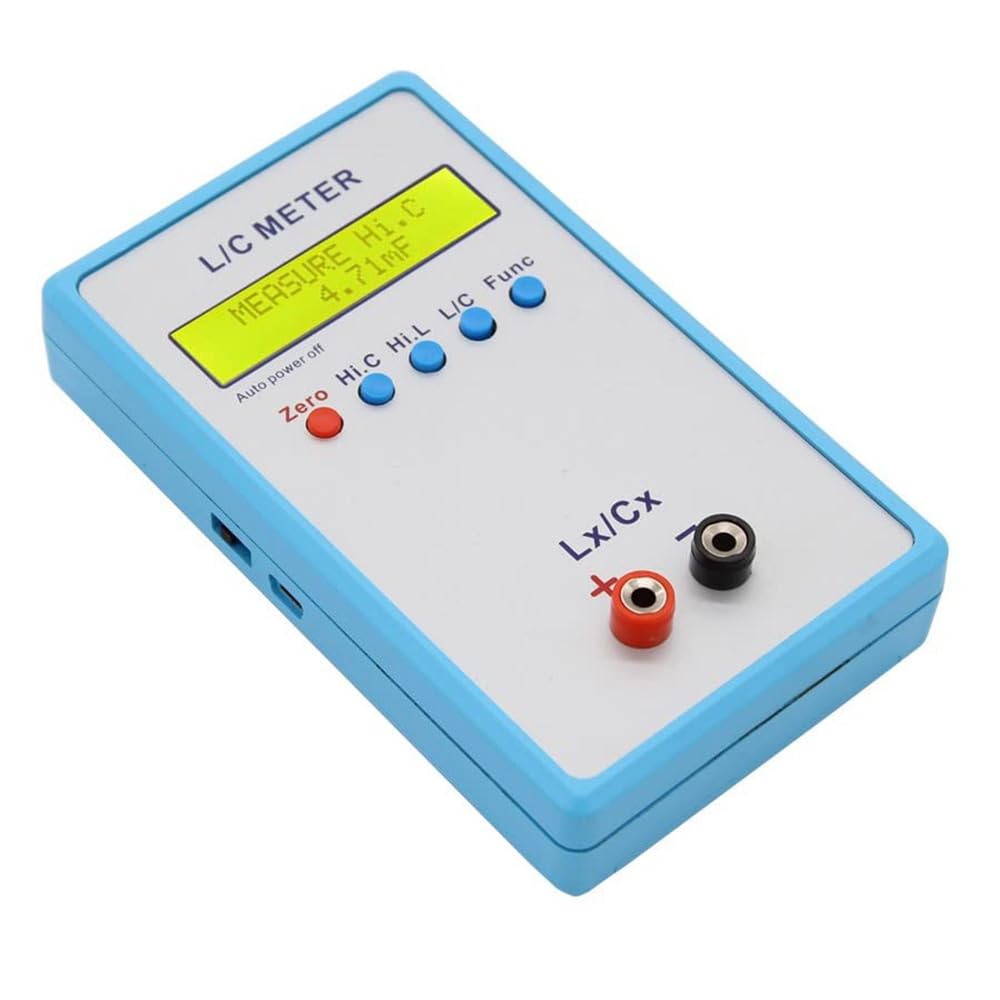

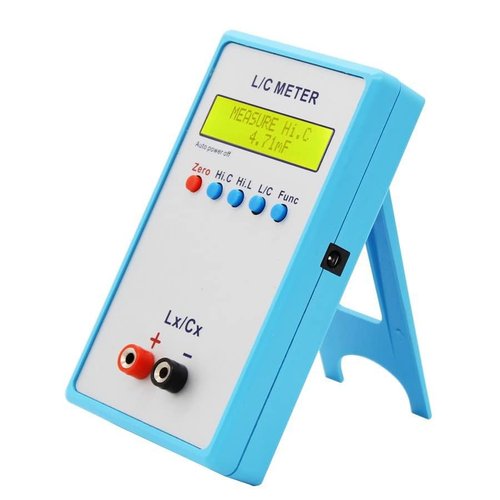

LC meter features an accuracy 1% of capacitance range 1pF-1uF, 5% of range 1uF~100mF; 1% of inductance range 1uH-1H, 5% of range 1H-100H
Capacitance meter equipped with calibration function: open circuit calibration in capacitance measuring mode, short circuit calibration in inductance measuring mode
High Precision Handheld Inductor Capacitor Tester has 4 measuring positions, easy to use
Inductor Capacitor Tester widely used in scientific research and technical engineering, factory electronic instrument testing, electronic instrument maintenance, school laboratory teaching, electronic design and other fields
model number: LC200A
Part Number: 3575ICM-LC200A
Details: SPECIFICATION

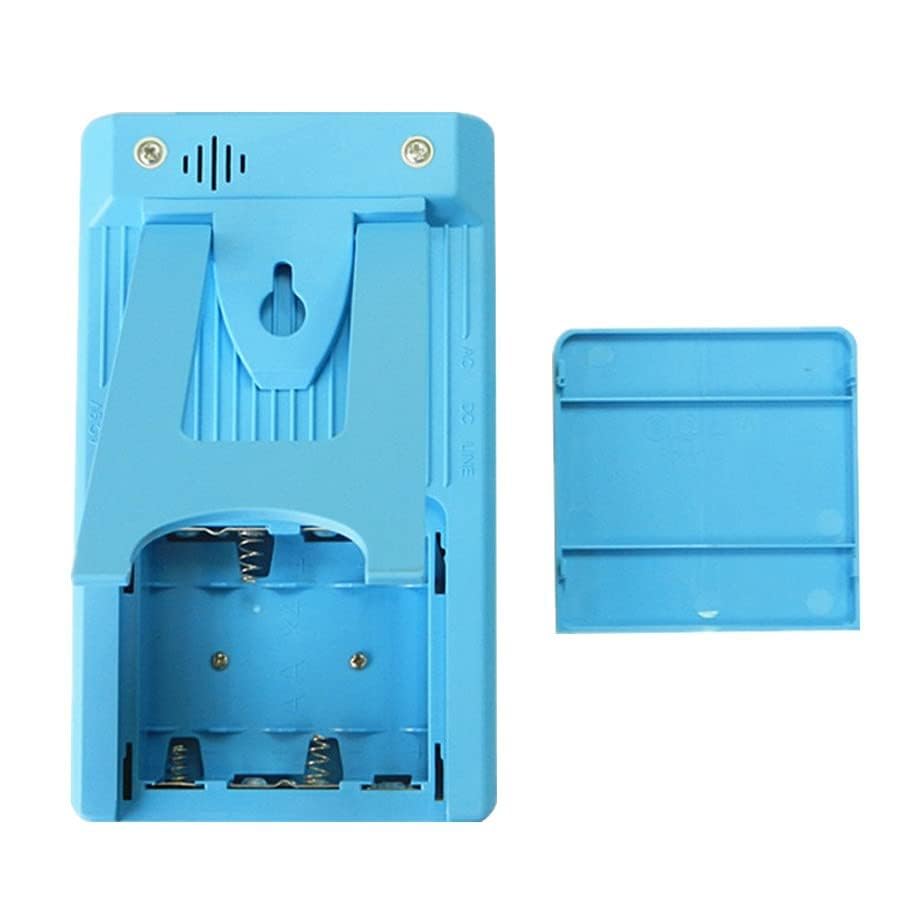

Supply power: DC5V or 4x AA battery (neither power cord nor battery included)

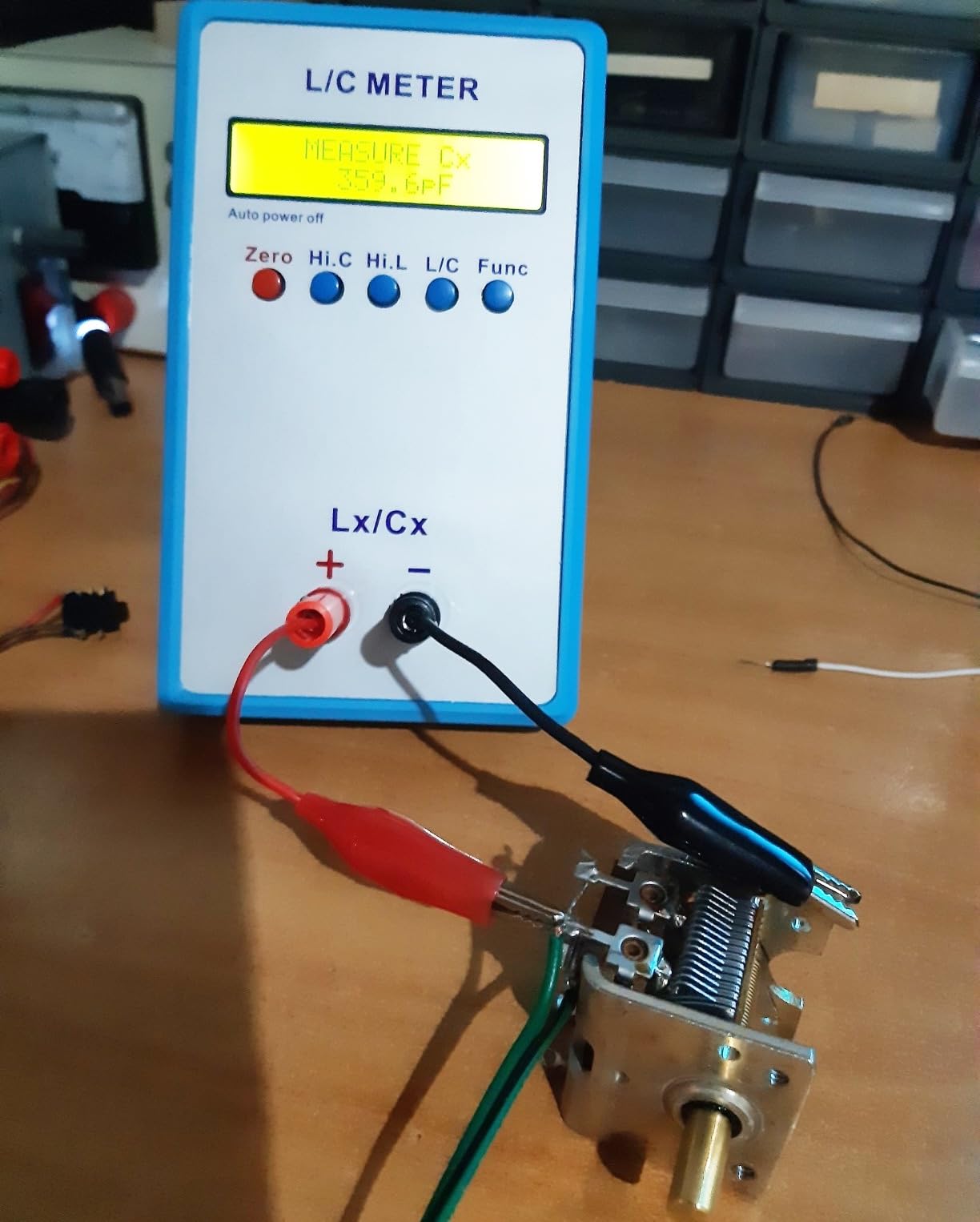

Mode “C”: measure small capacitance
Accuracy: 1pF~1uF1%; 1uF~10uF5%
Resolution: 0.01pF

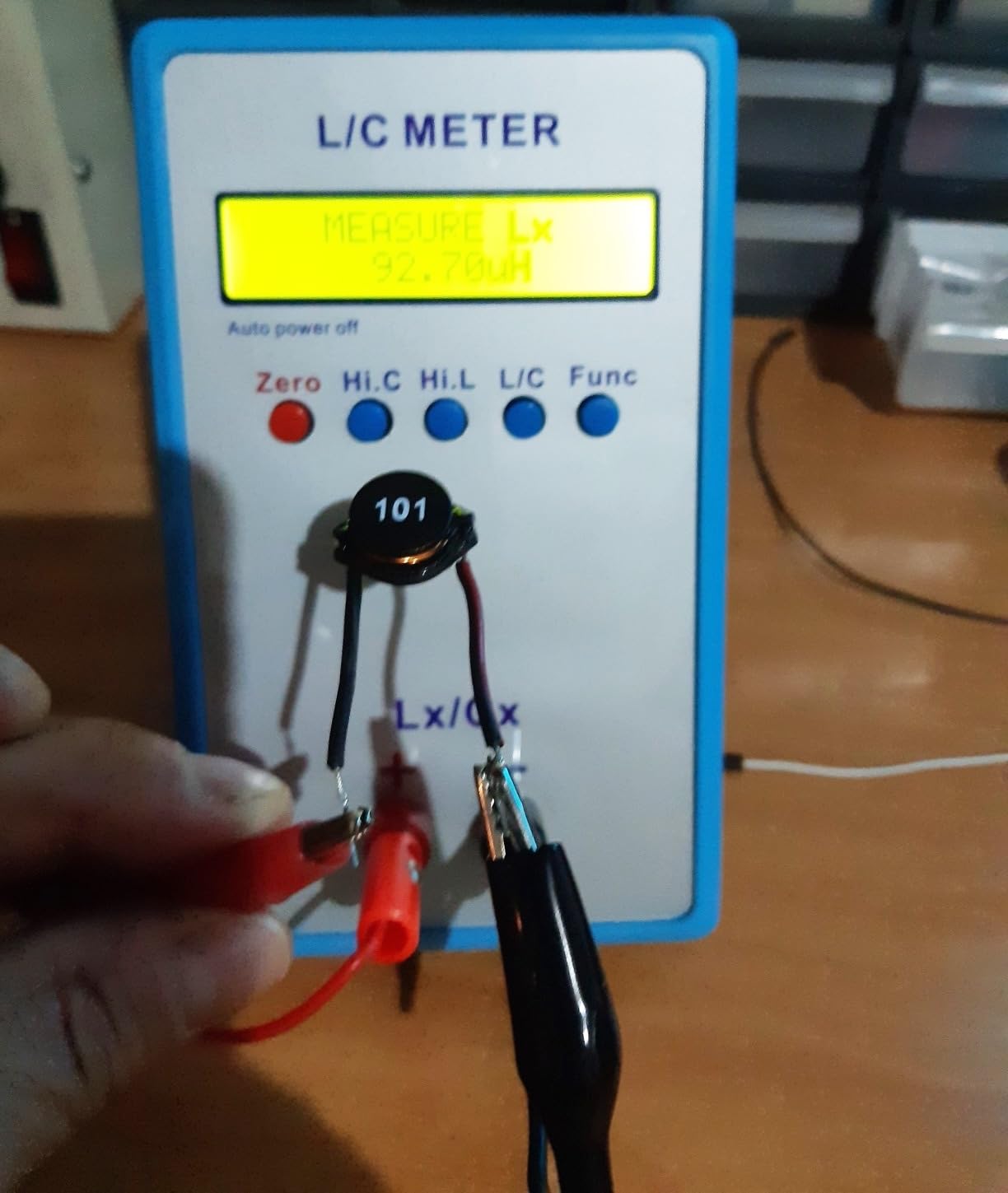

Mode “L”: measure small inductance
Accuracy: 1uH~100mH1%
Resolution: 0.001uH
Mode “Hi.L”: measure large inductance
Accuracy: 100mH~1H1%; 1H~100H5%
Resolution: 0.001mH
Mode “Hi.C”: measure large capacitance
Accuracy: 1uF~100mF5%
Resolution: 0.01uF
Test frequency: Mode “C”, mode “L”~500KHz Mode “Hi.L”~500Hz ~50KHz Measurement method of large capacitance: Charge-discharge
Display: LCD 1602
Effective display digits: 4
Working temperature:0℃-40℃
Working humidity: ≤90%RH (At 40℃)
Dimensions: 150*89*29mm
Weight: 198g

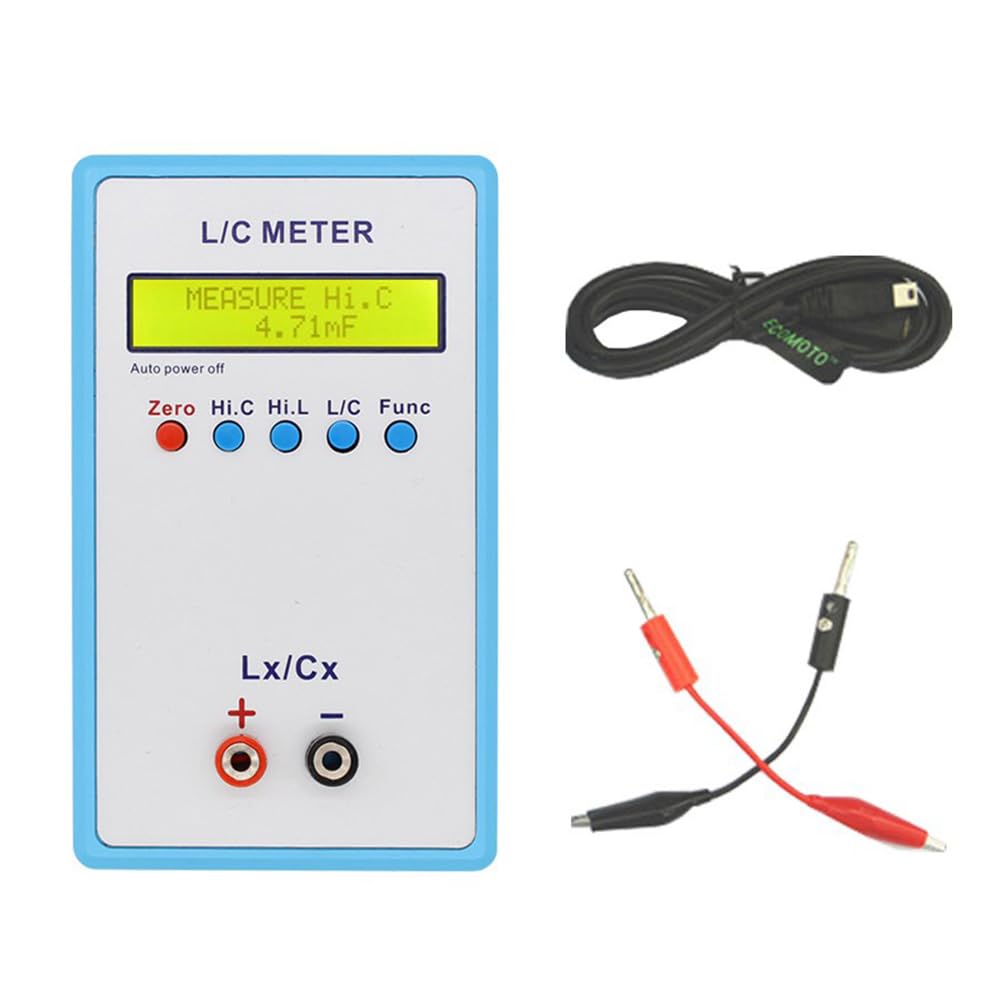

PACKAGE
1 × Inductor Capacitor Tester
1 x Pair of Alligator Clip Test Leads
1 × USB Cable
1 x Manual
