JAGTRADE Clock C51 Digital Electronic Clock Kits 6 Bits Electronic Parts and Components DIY Kit, 9.7* 4.9cm

Brand: JAGTRADE

Features:

• ★ Kits Model:YL-6
• ★ Kits name:six bits clock kits
• ★ Operating voltage:7-12V
• ★ Accuracy of travel time: error less than 1 second in 24 hours
• ★ Features: alarm clock, stopwatch, countdown and counter

Binding: Kitchen

Part Number: JAGTRADE

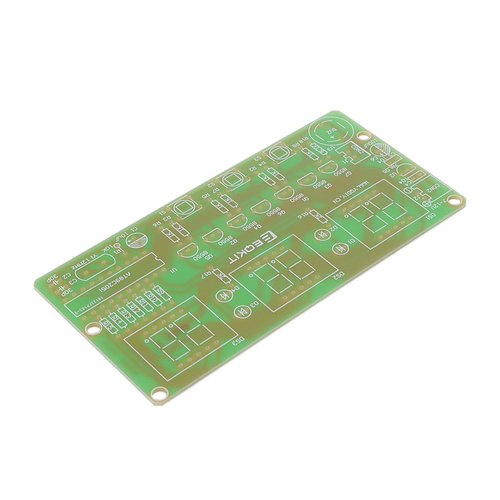

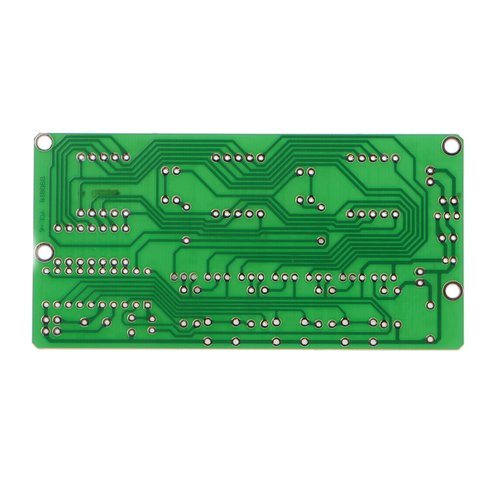

Details: Specifications: Kits Model:YL-6 Kits name:six bits clock kits Operating voltage:7-12V Accuracy of travel time: error less than 1 second in 24 hours Features: alarm clock, stopwatch, countdown and counter PCB Size:9.7* 4.9cm/3.82*1.93inch Operating Specification 1) Specification of function Keys S3 is for function choosing for key,S2 for function expansion and the S1 for adding the value with one. Clock Function: It displays 10：10：00 when it's on. Countdown Function: It displays O and the colon is in dark after press S3 three times in a short for time. The hour for time is added after pressing S2 and 1 minute is added after pressing S1. It'll start to countdown when press S2 for the sixth for time. The for time can be adjusted again after pressing S2 for one more for time. And the countdown function is off. Stopwatch Function: It displays 00：00：00 and the colon lights after press S3 four times in a short for time. It starts clocking with the stopwatch after pressing S2. And if press S2 one more for time, the clocking will be end. And the stopwatch goes to reset status after pressing S1 at this for time. Counter Function: It displays 00：00：00 and the colon is in dark after press S3 five times in a short for time. Press S2 to add the value with one for counter and Pree S1 to let the counter in reset status. Package Includes: 1 x 6 bits clock kits

EAN: 7401811319474
