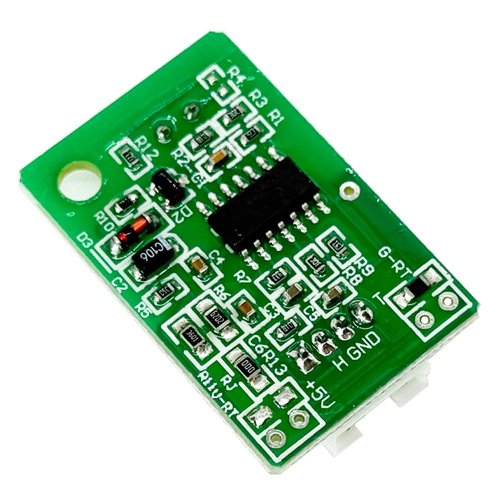

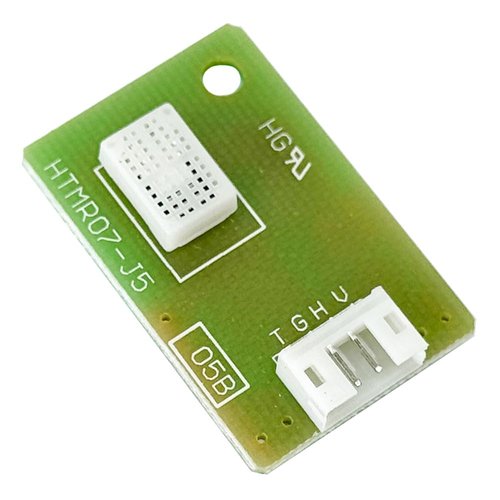

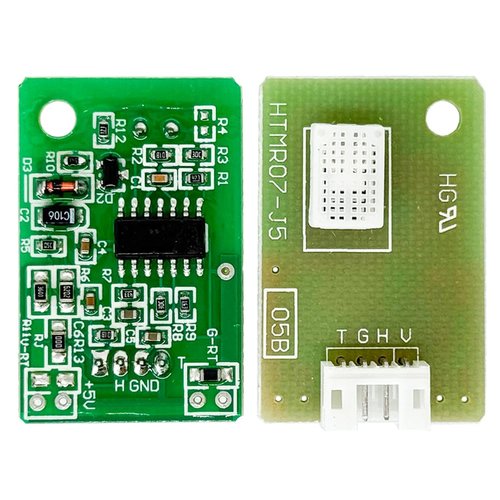

JFQWLE HTMR07-J5 Humidity Sensor Module Temperature Sensor Compatible with HOKURIKU/HDK HSU-07 Series Sensors Replacement Part Fit for Dehumidifier

Brand: JFQWLE

Color: Green

Features:

• Features: The HTMR07-J5 is a temperature and humidity module that uses ‌resistive polymer humidity sensor and high-precision thermistors as sensing elements. The sensor outputs in analog voltage mode, featuring simple communication and stable performance.

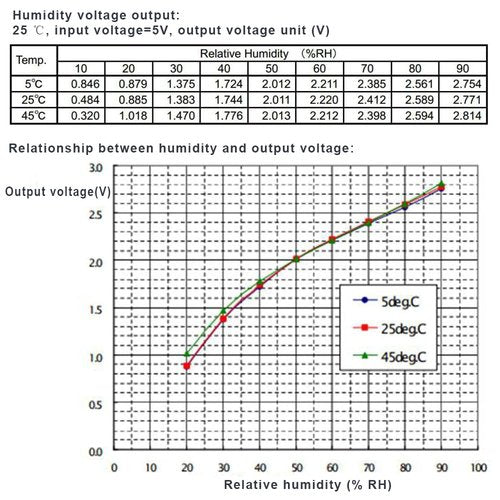

• Principle: The curve of the resistance value of the humidity resistance element changing with the relative humidity is converted into a linear voltage output through the conversion circuit

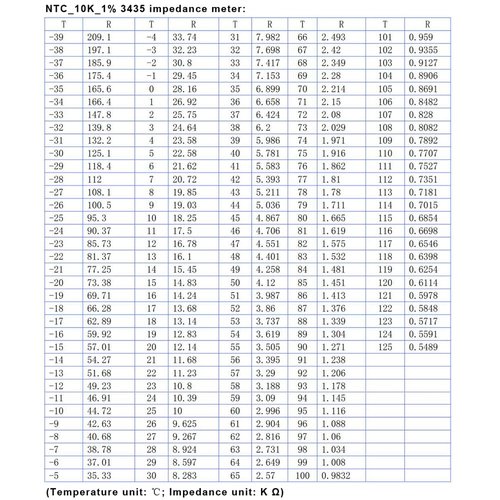

• Specification: Power supply: 5VDC+/-5%;Power consumption current: 5mA MAX (2mA.AVG); Temperature sensing element: NTC thermistor, 10K+/-1%, B value=3435K+/-1%; Measuring range: Humidity: 20%-95%RH, temperature: 0-50 ℃; Measurement accuracy: Humidity: +/-3%RH (25 ℃, 60%RH, input voltage=5V), Temperature: +/-1 ℃; Humidity output signal: input voltage=5V; Product size: 1.34"x0.87"x 0.26" ; Terminal: 2.54mm 4Pin; Fix hole: M3
• Application: This temperature and humidity module is applicable to industries such as warehousing, tobacco, and pharmaceuticals; Temperature and humidity meters, humidification equipment, dehumidification equipment, high-end air conditioners and other products
• Tips: Please make sure that the model and specifications match your dehumidifier before placing an order! This replacement humidity temperature sensor module part can compatible with HOKURIKU/HDK HSU-07 series sensor

model number: JFQWLE-HTMR07-J5

Part Number: HTMR07-J5

Package Dimensions: 2.2 x 2.2 x 0.8 inches
