Up to 180C. Motor runs significantly cooler then 17mm versions.
Step Angle: 1.8 degrees

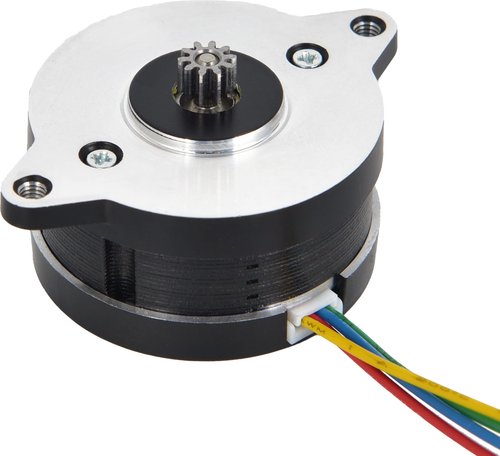

Shaft Diameter: 2.5mm (integrated 10 tooth gear)
Rated Current: 1A
Wiring: Included - 1 Meter - Integrated - Teflon wire rated to 200C - JST XH Terminated
IMPORTANT: Each motor is serialized for authenticity and to prevent fraudulent returns.
model number: 36STH20-1004AHG
Part Number: 36STH20-1004AHG

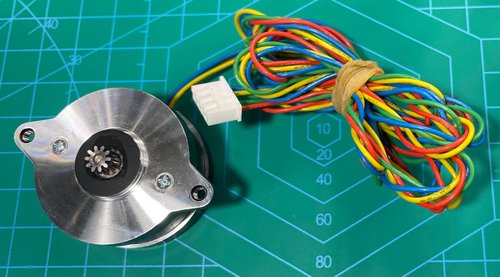

Details: This High Temperature rated NEMA 14 stepper motor offers a 1.8 degree step angle and high torque with a 20mm body length. For use in environments up to 180C.

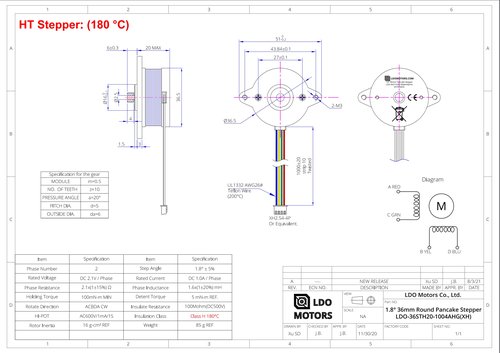

Electrical Specification:
Phase Number: 2
Rated Voltage:DC 2.1V / Phase
Phase Resistance: 2.1x(1±15%)Ohm
Step Angle:1.8° ± 5%
Rated Current: DC 1.0A / Phase
Phase Inductance: 1.6x(1±20%) mH
Detent Torque: 5 mN-m REF
Holding Torque: 100mN-m MIN
Rotate Direction: ACBDA CW
HI-POT: AC600V/1mNA/1S
Rotor Inertia: 16 g-cm2 REF
Insulate Resistance: 100Mohm(DC500V)
Insulation Class: Class H 180°C
Weight: 85 g REF

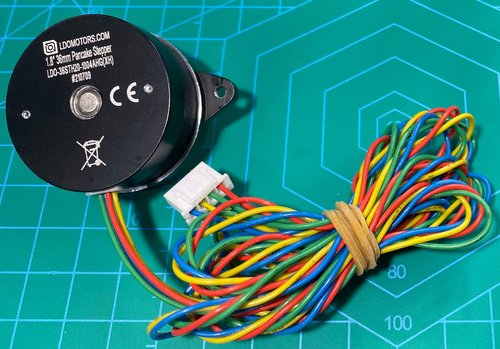

Identification: Serials are laser engraved
