LIPQJWLE 6x12 Inch Permanent Magnetic Chuck, Rectangular Fine Pole Permanent Magnetic Chuck for Grinding Machine Machining Workholding

Brand: LIPQJWLE

Features:

• 【Strong Magnetic Force】The special design inside this magnetic chuck makes it more reliable, durable and firmly attached. And we use high-quality, high-safety magnets to provide you with super strong magnetic force. At the same time, it is light in weight and can be used as an aerial platform and can test large workpieces in sections.

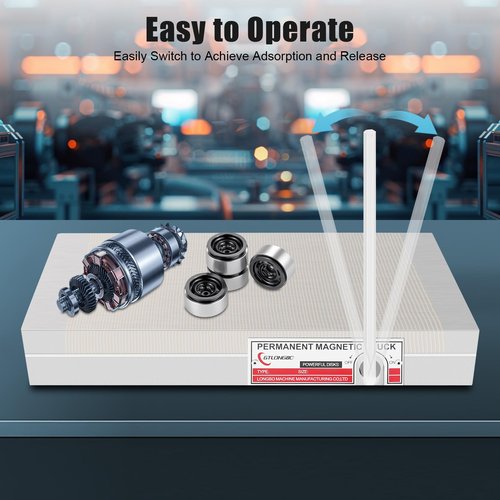

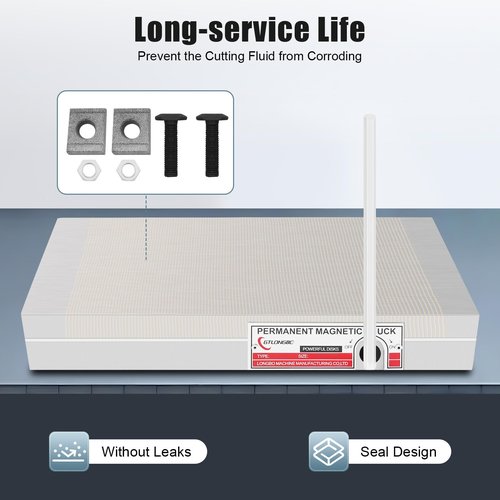

• 【Easy To Use】The panel has been professionally processed to prevent corrosion from cutting fluids and extend the service life of the magnetic chuck. And its handle controls the opening and closing of the machine as well as the adsorption and removal of materials. The accuracy of the work surface remains unchanged during demagnetization.
• 【High-Quality Magnets】The magnetic chuck is made of high-safety copper material and is sealed to effectively prevent liquid from entering. And its main structure is precise and sturdy. The magnetic force is evenly distributed, and the pole spacing is 1.5+0.5 mm.
• 【Intimate Design】The top plate of this magnetic chuck is an integrated solid component that can effectively prevent liquid from entering. At the same time, it does not need to be powered on, and can be opened or closed by the handle, which is convenient, flexible and durable.
• 【Wide Application】Our magnetic chuck can be used to process various magnetic workpieces. Suitable for surface grinders, tool grinders, EDM machines, etc. Due to the fine magnetic pole spacing, it is suitable even for thin and light workpieces.

model number: 6x12 Inch Permanent Magnetic Chuck

Details: Description

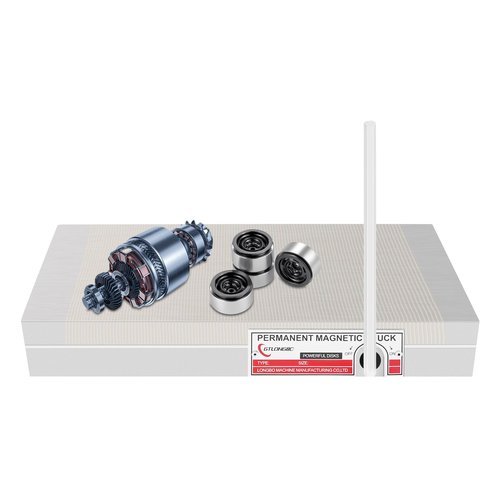

This is a permanent magnetic chuck. It is a magnetic fixture widely used in machine shops, mold factories, and other machining fields, and can greatly improve the efficiency of magnetic steel material clamping.
Details

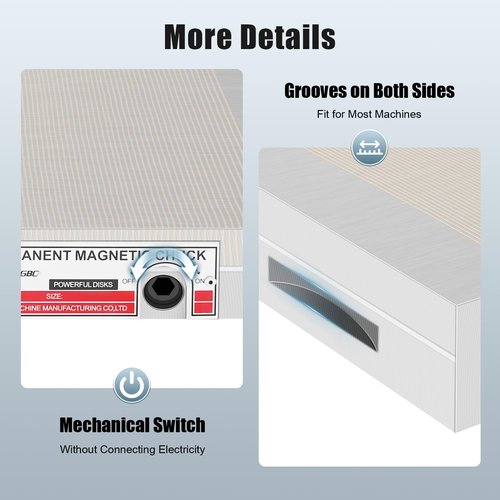

Mechanical Switch: There is no need to connect electricity. You can open or close it with the handle. So it is convenient, flexible, and durable.
Top Plate: The top plate is a solid, one-piece item, which can protect it from dirt and fluids.
Application
It can be used with surface grinders, tool grinders, EDM machines, and other things.
Specification
--Model: 15 * 30cm(6”x12”)
--Chuck Height: 4.5cm(1.77”)
--Pole Pitch: 0.5+1.5mm（2mm）/0.08”
--Copper Strip Length: 26cm(10.24”)
--Copper Strip Height: 2cm(0.79”)
--Net Weight: 18.5kg(40.79lbs)
--Product Size: 30*15*4.5cm(11.81*5.90*1.77in)
Package Included
1 x Magnetic Chuck
All Accessories for Use
Notes
1. Tungsten steel, hard alloy steel, and other magnetic small workpieces are not suitable for the magnetic sucker.
2. The magnetic chuck should be wiped clean before use to avoid scratching the surface. After use, the surface should be coated with oil to prevent corrosion.
3. Please do not knock to prevent magnetic reduction.
4. Please allow the slight color difference caused by the shooting light and 1-3 cm or mm error due to manual measurement, and make sure you do not mind before ordering.
