LLS | casDMX Casambi Enabled 4-Channel DMX Master | DMX Engineering

Brand: LLS

Color: white

Features:

• Casambi Channels: 4-channel: standard Casambi color functions 8-channel: standard Casambi slider function 12-channel: sliders available in Evolution mode
• INPUT: Voltage range: 12-24 VDC, Class 2 No-load input current: 30 mA
• DMX-512 OUTPUT: 3-wire non-isolated DMX-512
• RADIO TRANSCEIVER: Operating frequencies: 2.401-2.483 Ghz Maximum output power: typ. +0 dBm, +/-3dBm
• CONNECTORS: Wire range, solid & stranded: 0.5 – 1.5 mm2 14 – 22 AWG Wire strip length: .25” (6 – 7 mm) Tightening force: 0.4 Nm / 2.6 Lb-in
• OPERATING CONDITIONS: Ambient temperature, ta: -13…+113°F (-25…+45°C) Max. case temperature, tc: +167°F (+75°C) Storage temperature: -13…+167°F (-25…+75°C) Max. relative humidity: 0…80%, non-cond.

model number: casDMX

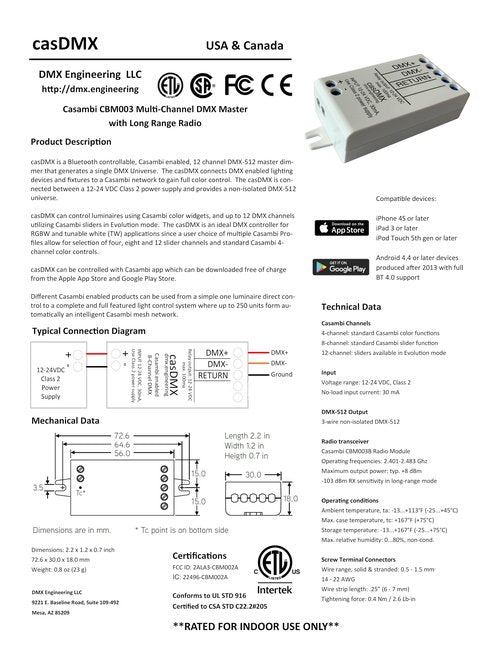

Details: casDMX is a Bluetooth controllable, Casambi enabled 12 channel DMX-512 master dimmer. It drives one DMX-512 universe, connecting to DMX enabled lighting devices and fixtures. The casDMX is connected between a 12-24 VDC Class 2 power supply and provides a non-isolated DMX-512 universe. casDMX can control luminaires using Casambi color widgets, and up to 12 DMX channels utilizing Casambi sliders in Evolution mode. The casDMX is an ideal DMX controller for RGBW and tunable white (TW) applications since a user choice of multiple Casambi Profiles allow for selection of four, eight and 12 slider channels and standard Casambi 4-channel color controls. Different Casambi enabled products can be used from a simple one luminaire direct control to a complete and full-featured light control system where up to 250 units form automatically an intelligent mesh network.
