MCDFL Clock Mechanism Replacement 3 Set Quartz Movement Silent AA Battery Operated Non-Ticking Powered Wall Watch Motor DIY Time Zone Clocks Making Works Repair Parts Kit 6mm/0.24in Thread Length 227S

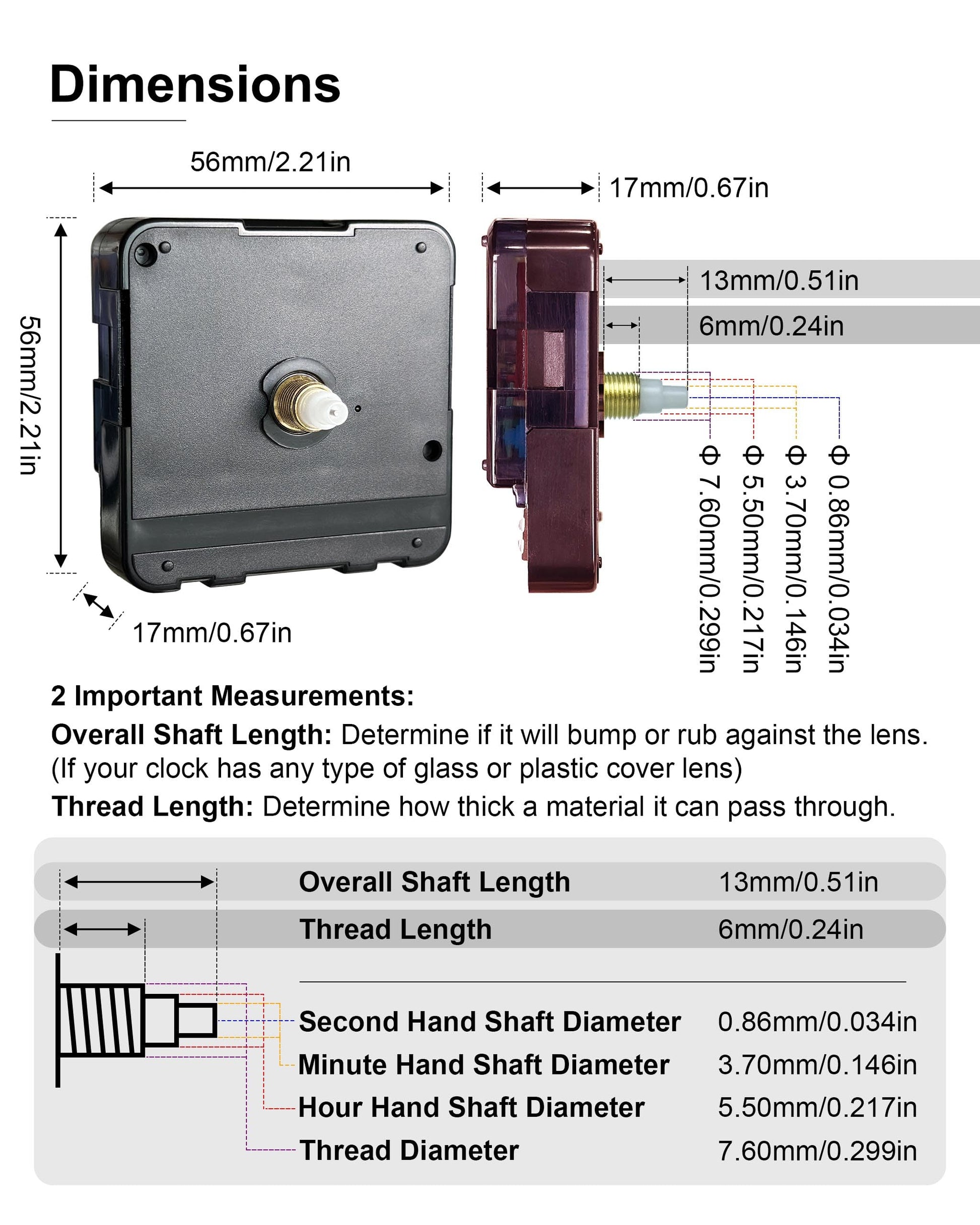

Dimensions: 6mm/0.24in thread length, 13mm/0.51in overall shaft length. Thick shaft, second hand shaft diameter 0.86mm/0.034in; Minute hand shaft diameter 3.70mm/0.146in; Hour hand shaft diameter 5.50mm/0.217in; Thread diameter 7.60mm/0.299in.

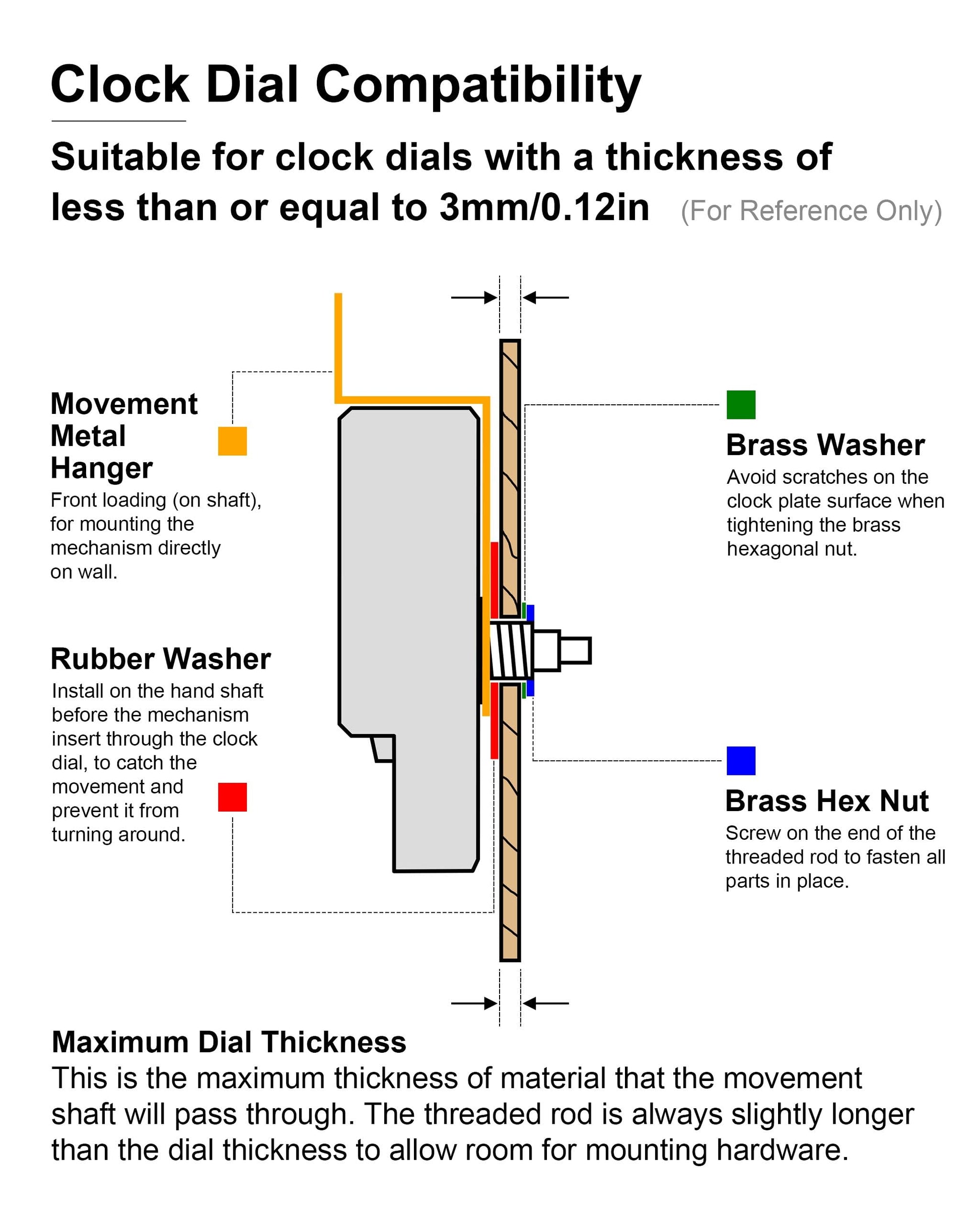

Clock Dial Compatibility: Suitable for clock faces with a thickness of less than or equal to 3mm/0.12in (for reference only). This is the maximum thickness of material that the movement shaft will pass through. The threaded rod is always slightly longer than the dial thickness to allow room for mounting hardware.

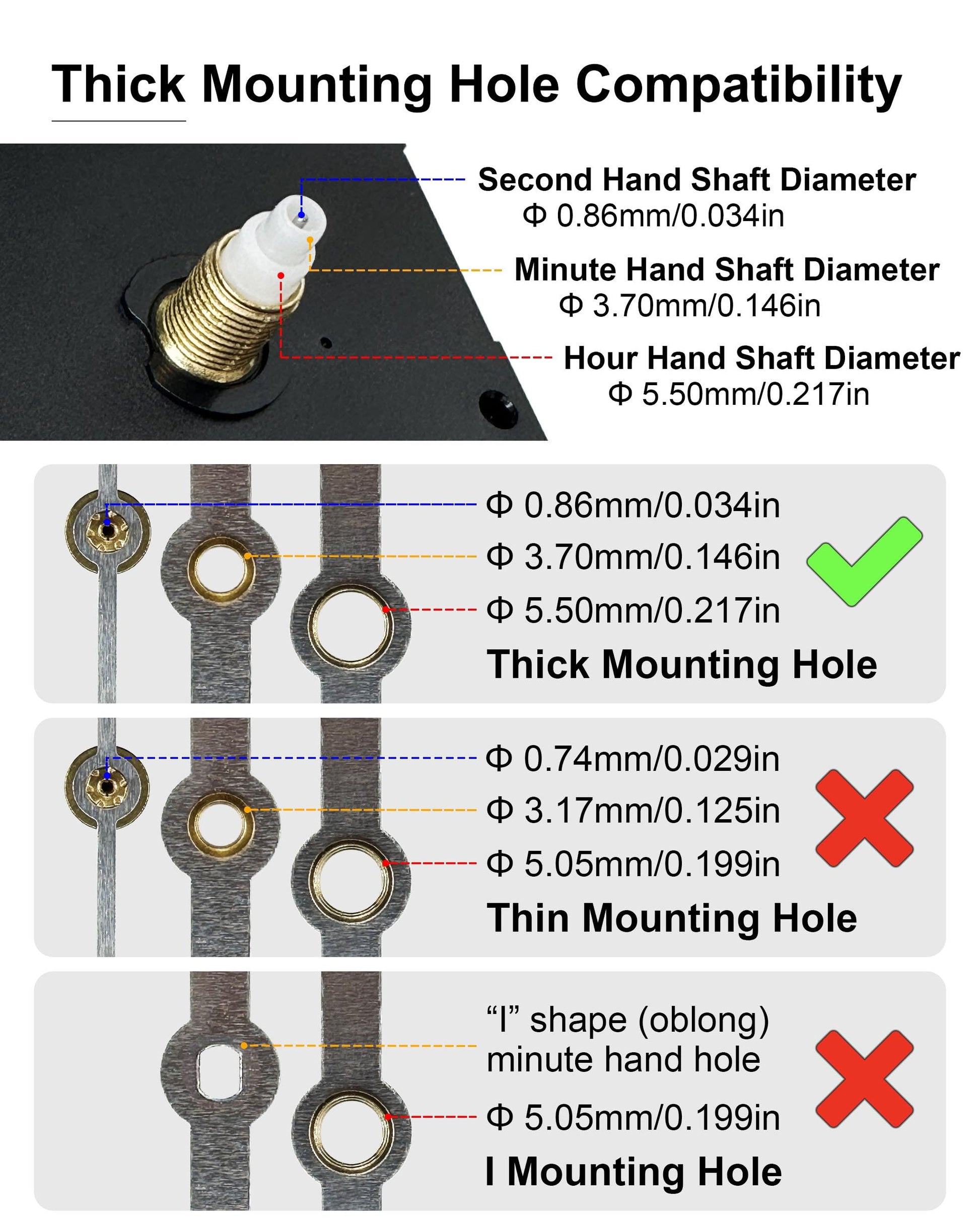

Thick Mounting Hole Compatibility: Suitable for press fit clock hands with thick mounting hole. Second hand mounting hole 0.86mm/0.034in; Minute hand mounting hole 3.70mm/0.146in; Hour hand mounting hole 5.50mm/0.217in.
Earth Friendly Sustainability: Keep MXDFL clock mechanism organized with our included sturdy reusable packaging jars, ensure them protected from damage or loss, for safe and secure storage. What a sustainable choice of reusing these containers to store tools, parts, accessories, hardware, craft materials and so on.

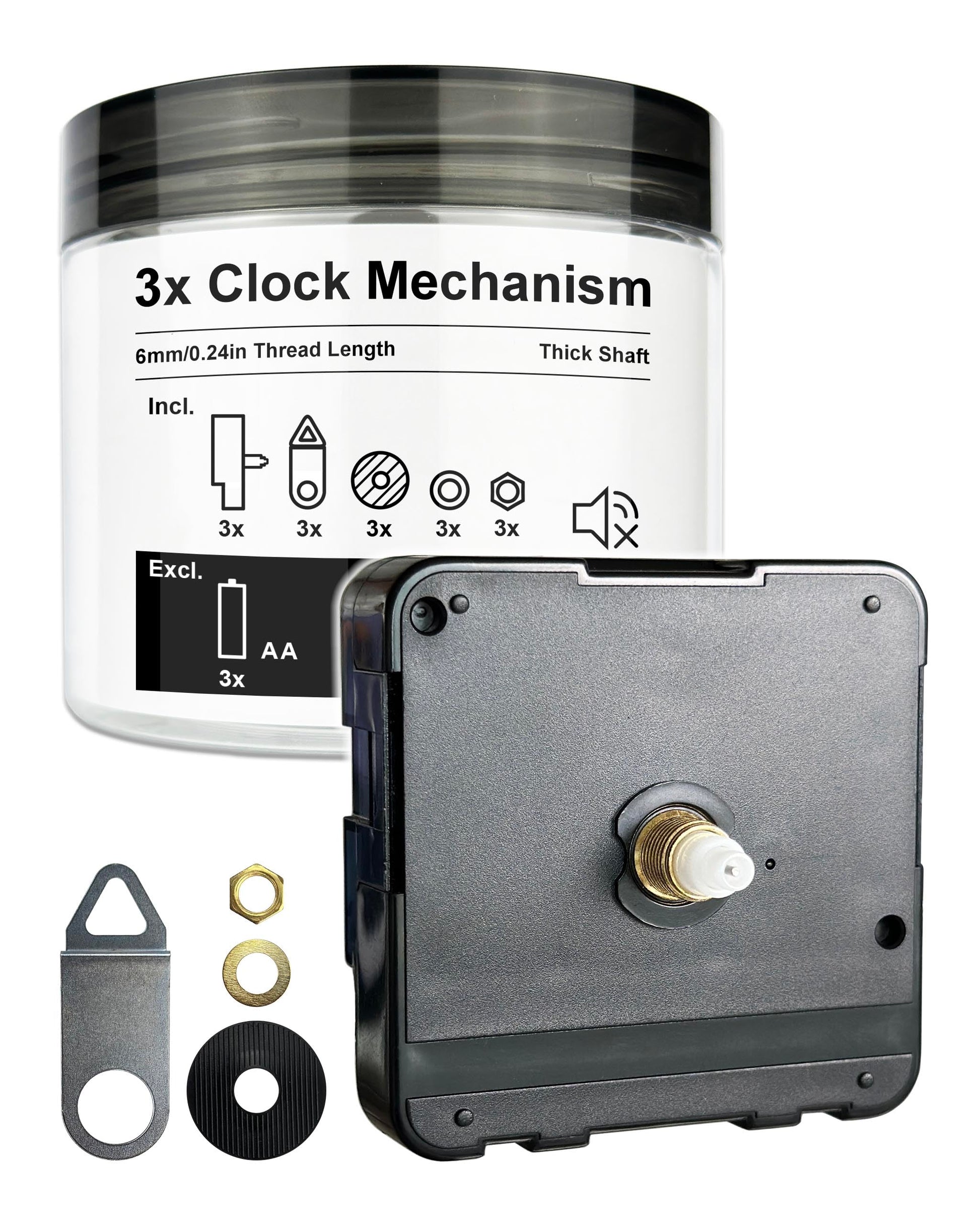

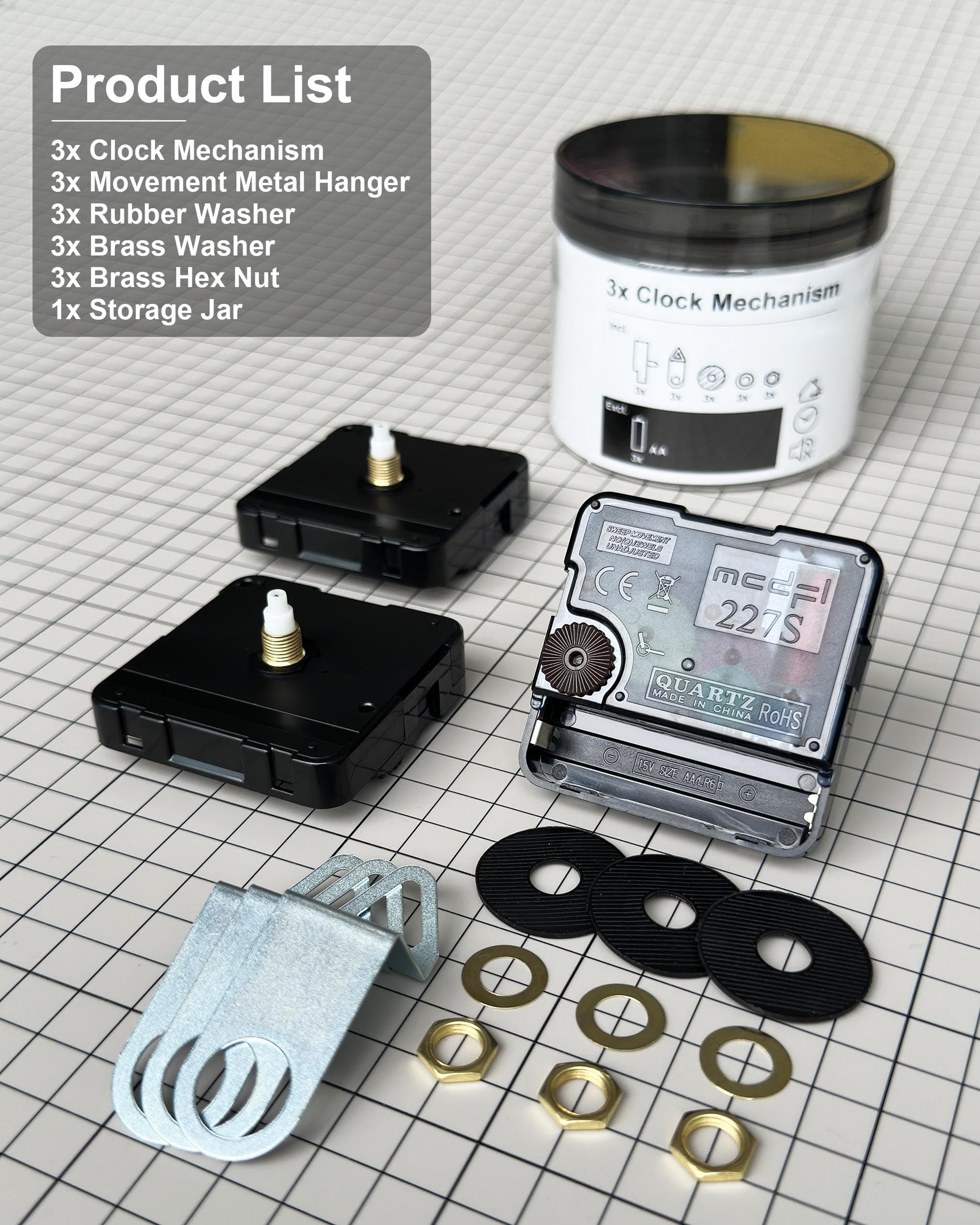

What You Get: 3x clock mechanisms, 3x movement metal hanger, 3x rubber washer, 3x brass washer, 3x brass hex nut, protected in a sturdy reliable PET plastic jar, guidance for use, and our friendly customer service.
