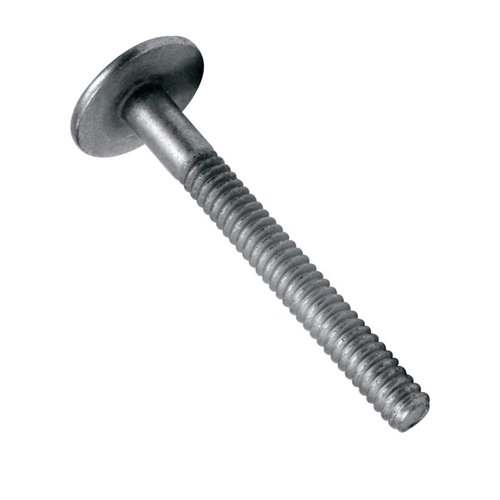

MGP98T-R6-20G, Huck Magna-GR Lockbolts, 0.187 Inch Diameter, (0.312-1.250 Inch GR), Rivet HD, Carbon Steel Material,

Brand: Magna-Grip Lockbolts

Features:

• Offers the highest level of vibration resistance
• Consistently provides high, uniform installed values
• Wide grip range can replace up to 4 traditional HuckBolts
• Quantity Of (50) Per Package

model number: Magna-Grip Lockbolts

Part Number: MGP98T-R6-20G

Details: Huck MGP98T-R6-20G Magna-Grip Lockbolts, Unit of Measure: Inch, Diameter: 0.187 Inch, Minimum Grip: 0.312 Inch, Maximum Grip: 1.250 Inch, Grip Range: 0.312 - 1.250 Inch, Rivet Head, Carbon Steel Material, Material Detail: Grade 2 Carbon Steel, Zinc Clear Trivalent Chromate Finish, Finish Detail: Zinc Electroplated, Clear Trivalent Chromate, ASTM B633 .0003 Thick, Minimum Hole Size: 0.196 Inch, Maximum Hole Size: 0.219 Inch, Drill Size: #6, Head Diameter: 0.488 Inch, Head Height: 0.108 Inch, Diameter Tolerance: 0.183 - 0.187 Inch, Diameter of Ungrooved Area Under Head: 0.312 Inch, Under Head Pin Length: 2.353-2.413 Inch, Under Head Length to Minimum Grip: 0.312 Inch, Exposed Pin at Minimum Grip: 0.000 - 0.031 Inch, Pin Length to Lock Groove: 0.312 Inch, Clamp Strength: 1500 lbf. (6.67kN), Shear Strength: 2000 lbf (8.896kN), Tensile Strength: 2700 lbf (12.010kN), RoHS Compliant: Yes

EAN: 0684055760517
