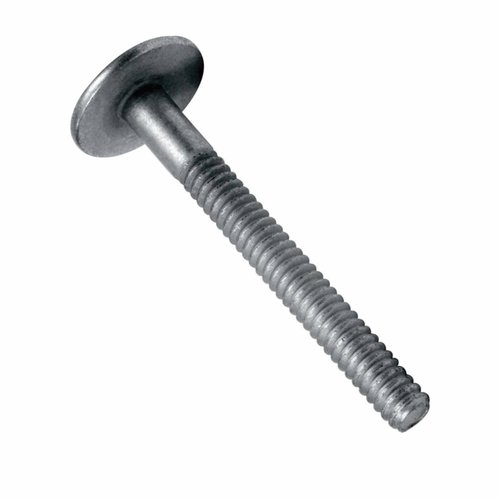

MGPB-R8-20G, Huck Magna-GR Lockbolts, 0.250 Inch Diameter, (0.312-1.250 Inch GR), Button HD, Carbon Steel Material,

Brand: Generic

Features:

• Offers the highest level of vibration resistance
• Consistently provides high, uniform installed values
• Wide grip range can replace up to 4 traditional HuckBolts
• Quantity Of (25) Per Package

model number: Magna-Grip Lockbolts

Part Number: MGPB-R8-20G

Details: Huck MGPB-R8-20G Magna-Grip Lockbolts, Unit of Measure: Inch, Diameter: 0.250 Inch, Minimum Grip: 0.312 Inch, Maximum Grip: 1.250 Inch, Grip Range: 0.312 - 1.250 Inch, Button Head, Carbon Steel Material, Material Detail: Grade 2 Carbon Steel, Zinc Clear Trivalent Chromate Finish, Finish Detail: Zinc Electroplated, Clear Trivalent Chromate, ASTM B633 .0003 Thick, Minimum Hole Size: 0.261 Inch, Maximum Hole Size: 0.281 Inch, Drill Size: I, Head Diameter: 0.520 Inch, Head Height: 0.154 Inch, Diameter Tolerance: 0.245 - 0.249 Inch, Diameter of Ungrooved Area Under Head: 0.259 Inch, Under Head Pin Length: 2.560-2.635 Inch, Under Head Length to Minimum Grip: 0.312 Inch, Exposed Pin at Minimum Grip: 0.000 - 0.093 Inch, Pin Length to Lock Groove: 0.312 Inch, Clamp Strength: 2000 lbf. (8.89kN), Shear Strength: 2700 lbf (12.010kN), Tensile Strength: 4000 lbf (17.793kN), RoHS Compliant: Yes
