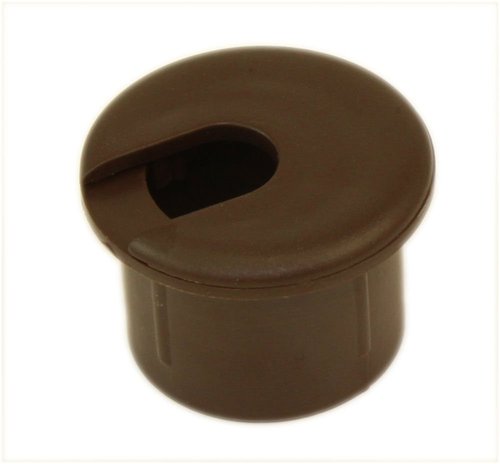

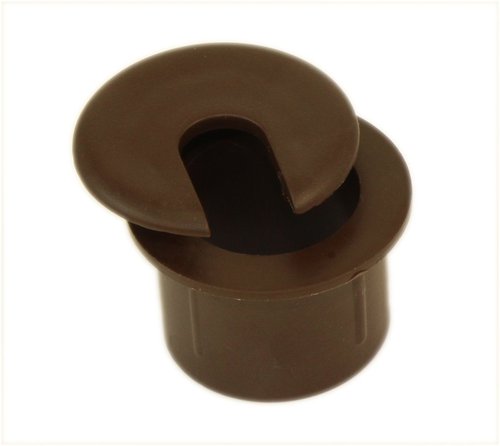

MyCableMart 1"" Cut-Hole Size Brown Round Wire Management Grommet with Removable Lid

Brand: My Cable Mart

Color: Brown

Features:

• Cut-hole Size Required: 1.0''. This is the size of the hole you will need to CUT
• Inside usable diameter: 0.8''. This is the usable INSIDE area to pass wires
• Grommet Insert Width: .960''. This is the MEASURED width of the grommet
• Rigid PVC plastic material

model number: BA-1041BR

Part Number: BA-1041BR

Details: Organize your cables with professional desk and cabinet cable-pass through grommets. Cut hole to size specified and either press or glue into place.

Specifications: Cut-hole Size Required: 1.0
Inside usable diameter: 0.8
Grommet Insert Width: .960
Grommet Lid Width: 1.238
Grommet Depth: .844
Size Tolerances May Vary

Important Installation Note: The Grommets are manufactured to be slightly less that the hole size. For example if we have a grommet advertised at 1.0 inches (example size ONLY) when measured on a caliper it will measure at approx. 0.96 inches - or approx .04 inches LESS than the hole size of 1.0inches. This difference is by design to allow for the grommet to be inserted into the CUT hole size. These grommets after inserted into a cut hole are intended to move freely. If you need a TIGHT fit a small amount of glue or silicon may be needed.

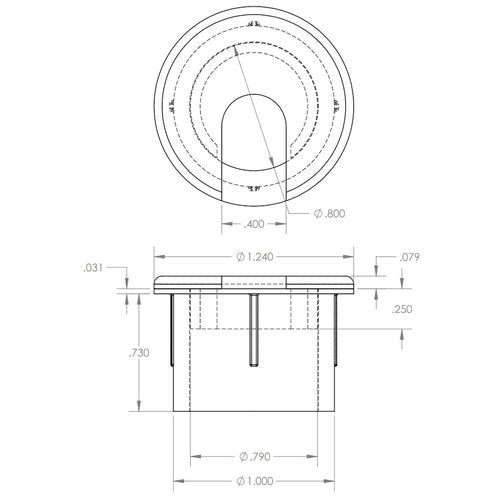

Please see technical drawing (Product Manual) below for size and shape details.

EAN: 0747902852978
