MyCableMart 3"" Cut-Hole Size White Round Wire Management Grommet with Removable Lid

Brand: My Cable Mart

Color: White

Features:

• Cut-hole Size Required: 3.0''. This is the size of the hole you will need to CUT
• Inside usable diameter: 2.77''. This is the usable INSIDE area to pass wires
• Grommet Insert Width: 2.973'' This is the MEASURED width of the grommet
• Rigid PVC plastic material

model number: BA-1043WH

Part Number: BA-1043WH

Details: Organize your cables with professional desk and cabinet cable-pass through grommets. Cut hole to size specified and either press or glue into place.

Specifications: Cut-hole Size Required: 3.0.
Grommet Insert Width: 2.973
Grommet Lid Width: 3.484
Grommet Depth: 0.689
Inside Usable Diameter (Approx): 2.77
Size Tolerances May Vary

Important Installation Note: The Grommets are manufactured to be slightly less that the cut hole size. For example if we have a grommet advertised at 3.0 inches (example size ONLY) when measured on a caliper it will measure at approx. 2.973 inches - or approx .027 inches LESS than the hole size of 3 inches. This difference is by design to allow for the grommet to be inserted into the CUT hole size. These grommets after inserted into a cut hole are intended to move freely. If you need a TIGHT fit a small amount of glue or silicon may be needed.

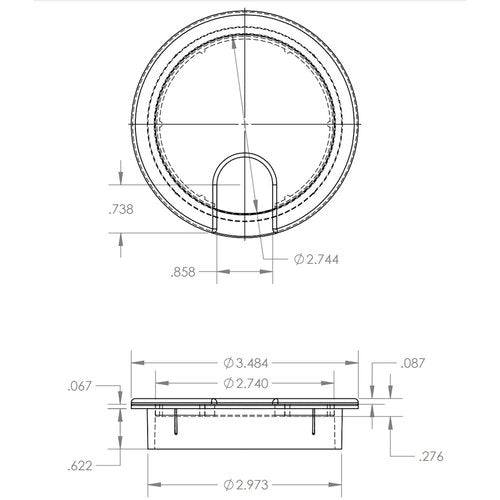

Please see technical drawing (Product Manual) below for size and shape details.

EAN: 0747902853890
