Pattosaey Automatic Swing Door Opener Heavy Duty Door Operator Remote Control Swing Opening, Manual/Auto Mode Low-Noise Gear Compliant for Residential & Commercial Use

Brand: Pattosaey

Color: Silver, Black

Features:

• Multi-Control Accessibility & Versatile Entry Options: Operate doors remotely, via password, ID card, or optional wall-mounted switch—ideal for accessibility needs. Features manual/automatic modes, with low-pressure opening and slow closing in manual mode for safe, inclusive use
• Obstruction Detection & Safety Reversal: Automatically reverses door movement upon detecting obstacles, preventing accidents with a reopening feature. Ensures safety for children, pets, or objects in the door’s path, providing reliable accident prevention

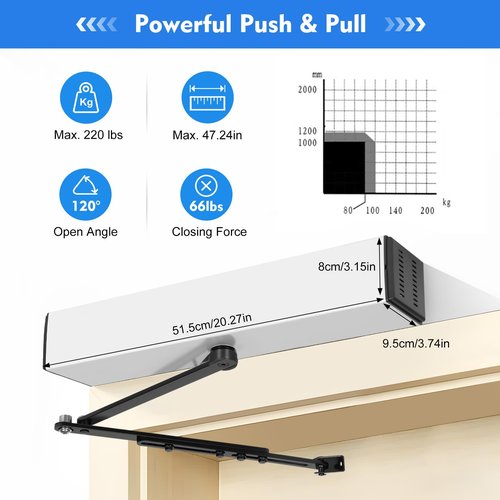

• High-Capacity Performance for Heavy Doors: Compact design (20.27x3.15x3.74in) handles doors up to 220 lbs and 47.24in wide, opening to 120° with 66 lbs closing force. Durable wide-voltage motor prevents burnout, ensuring consistent operation under unstable power conditions
• Customizable Settings & Flexible Installation: Adjust opening/closing speed, hold time, and more via the programmer. Includes push/pull rods for inward/outward-opening doors, adapting to residential or commercial spaces
• All-Weather Durability & Quiet Operation: Aluminum alloy and ABS construction withstands -4°F to 122°F. Low-noise gears operate at ~55dB, ensuring quiet functionality for offices, hospitals, hotels, or homes without disrupting daily activities

model number: HG-WWHYYR

Part Number: HG-WWHYYR

Details: Specifications
Material: Aluminum Alloy, ABS
Color: Silver, Black
Style: Modern
Assembly Required: Yes
Voltage: 110~220V ±10%
Power: 50W

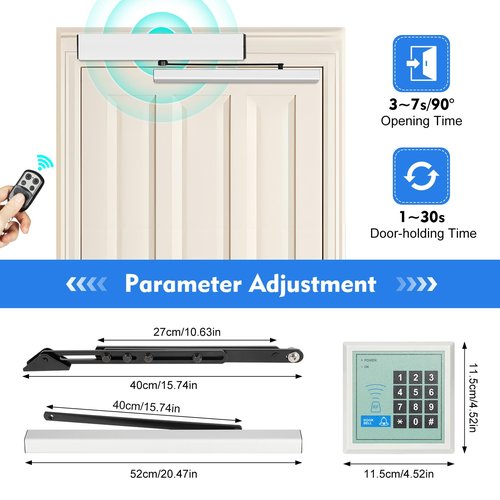

Opening Time: 3~7s/90°
Hold Open Time: 1~30s
Max. Door Frame Depth: 450mm/17.71in
Door Width: Min. 660mm/26in / Max. 1200mm/47.24in
Max. Opening Angle: 120°
Max. Door Weight: 100KG/220lbs
Environment Temperature: -20~50℃/-4~122°F
Protection Class: IP12D
Remote Control Range: 15m/49ft
Closing Force: 30kg/66lbs
Noise: 55DB
Gross Weight: 8.3kg/18.3lbs
Net Weight: 7.4kg/16.3lbs
Switch Size: 8.5*8.5cm/3.34*3.34in
Control Panel Size: 11.5*11.5cm/4.52*4.52in
Product Size: 51.5*8*9.5cm/20.27*3.15*3.74in
Package Size: 68*15*26cm/26.77*5.9*10.23in

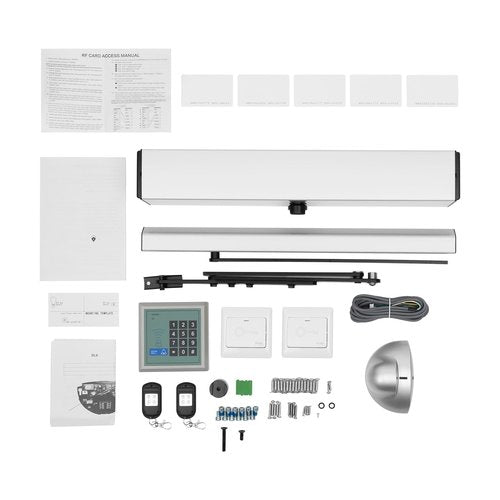

Package Included
1 x Automatic Swing Door Opener
2 x Remote Controllers
2 x Switches
1 x Pull Arm
1 x Push Arm
5 x ID Cards
1 x Control Panel
1 x Sensor
1 x English RF Card Access Manual
1 x Chinese Installation Manual
1 x Chinese Sensor Manual
All Accessories for Assembly

Notes
1. Please note that one set of products can only open a single door. If it is a double door, please purchase two sets.
2. Please note that this product should not be used in water. If you need to use it outdoors, please bring your own rain cover.
3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

EAN: 0747495864211

Package Dimensions: 26.8 x 10.2 x 5.9 inches
