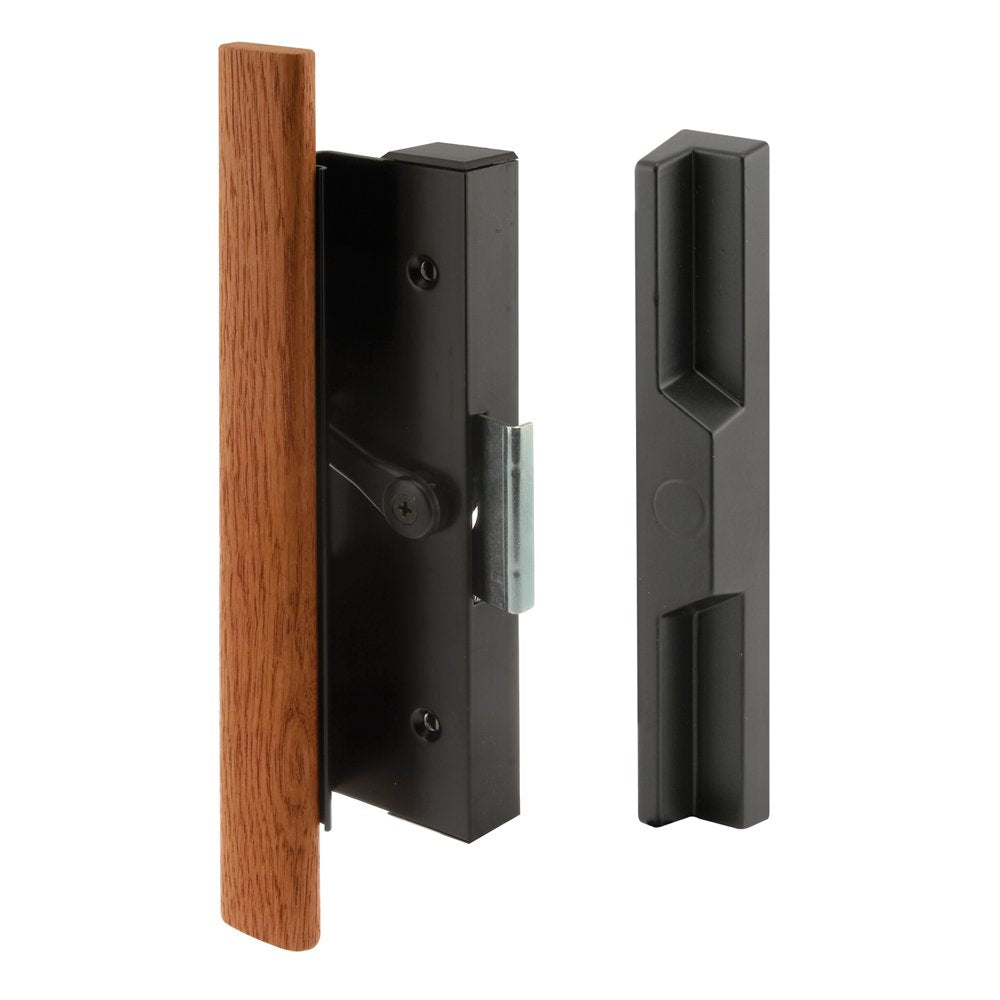

Prime-Line C 1126 Black Diecast Sliding Door Handle with Wood Handle, (Single Pack)

Brand: PRIME-LINE

Color: Black/Wood

Features:

• Used as an upgrade to most typical clamp handles
• Reversible for right or left sliding doors

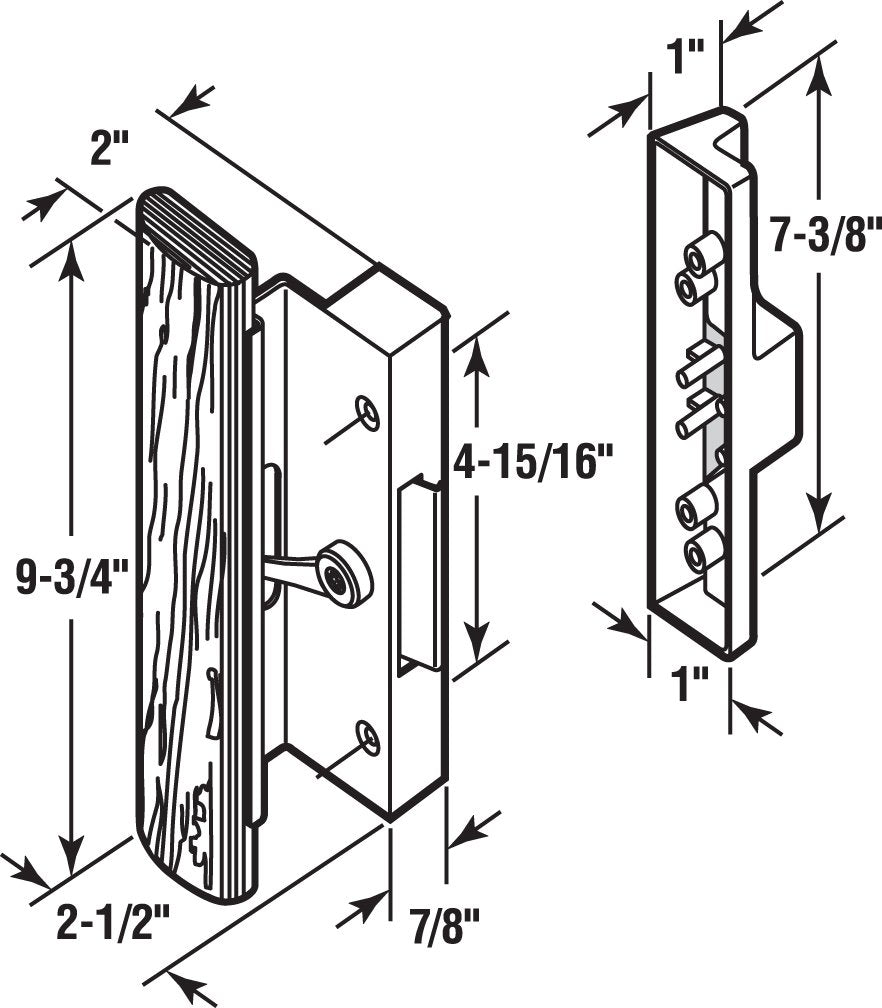

• Mounting holes are 4-15/16 inch on center
• Black diecast construction with solid wood handle
• Can be keyed using Prime-Line part E 2000

Binding: Tools & Home Improvement

model number: C 1126

Part Number: C1126

Details: Product Description

This is an upgrade from the typical clamp handles. The inside handle has a wood handle attached to a black bracket and has a height of 2 inch from the door frame. The outside handle is black diecast. The clamp latch has a clamp profile of 1/4 inch and a clamp projection of 1/2 inch in the locked position. The handle has 4-15/16 inch on center mounting holes. It is non-handed and can be used on right or left-handed doors. It is non-keyed. Order Prime-Line part E 2000 to key this unit. Minimum door width of 7/8 inch and maximum of 1 inch

From the Manufacturer

This patio door clamp-style handle set is constructed of an extruded aluminum, and wooden pull inside handle, with a diecast-constructed outside pull that fits 4-15/16 in. mounting hole centers. It is a surface mount application that does not require nor include a keeper, as it's clamp reaches for, and engages onto the extruded metal framework. This handle set features a 1/4 inch profile and a 1/2 inch reach.

EAN: 0049793011268

Package Dimensions: 15.0 x 2.3 x 1.6 inches
