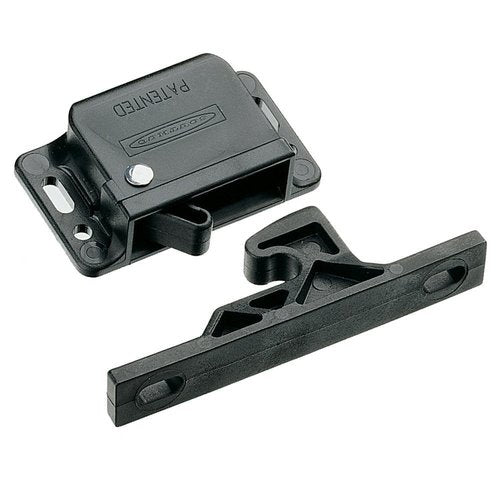

Southco C3-803 Series Passivated Plastic Grabber Catch Side Mount Concealed Push-To-Close Latch with Blue Spring, 13N Pullup, Black (Pack of 4)

Brand: Southco

Features:

• Spring-loaded over-center latching
• The built-in pull-up provides tension to help prevent looseness or rattle of the door against the frame
• Feature corrosion-resistant materials
• 30 to 60 degree c operating temperature range
• Ul94-hb flammability rating

Release Date: 14-10-2017

model number: C3-803x4

Part Number: C3-803x4

Details: Southco C3-803 Series Passivated Plastic Grabber Catch Side Mount Concealed Push-To-Close Latch with Blue Spring, 13N Pullup, Black. Southco Grabber catch side mount concealed push-to-close latches. Get an extra degree of closure force on doors, with this compact latch's internal spring-loaded pawl that provides over-center latching. The built-in pull-up provides tension to help prevent looseness or rattle of the door against the frame. Latching function is accomplished in a relatively low-profile mechanism, just 0.54-inches thick. Over-center action actually pulls door tighter to latch, releasing it when you pull to open door. Feature corrosion-resistant materials. Industry applications includes automotive, passenger vehicles, trucks, electronic enclosures, exhibits/signs, industrial enclosures, vending machines. Maximum tightening torque on mounting screws (not supplied): Catch: 1.1 N m. Minimum distance from frame (or surface on which catch sub-assembly is mounted) to centerline of door hinge is 5.9-inches. Rivet/screw (thru hole) installation.

Package Dimensions: 6.3 x 4.3 x 1.2 inches
