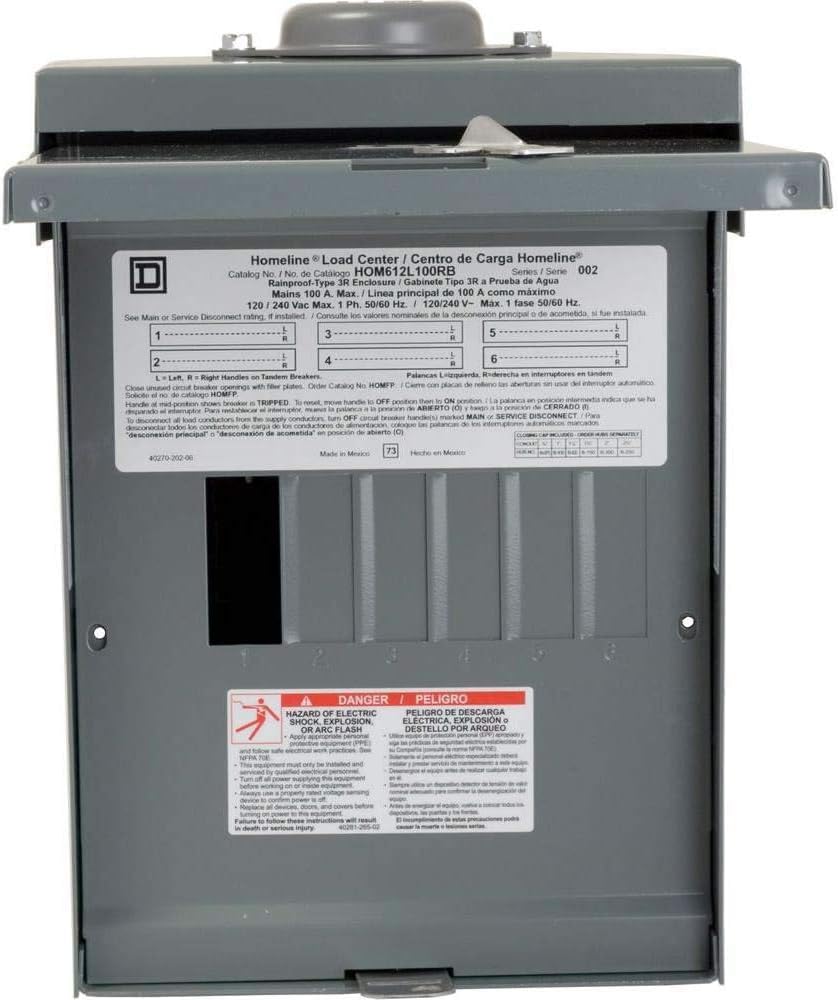

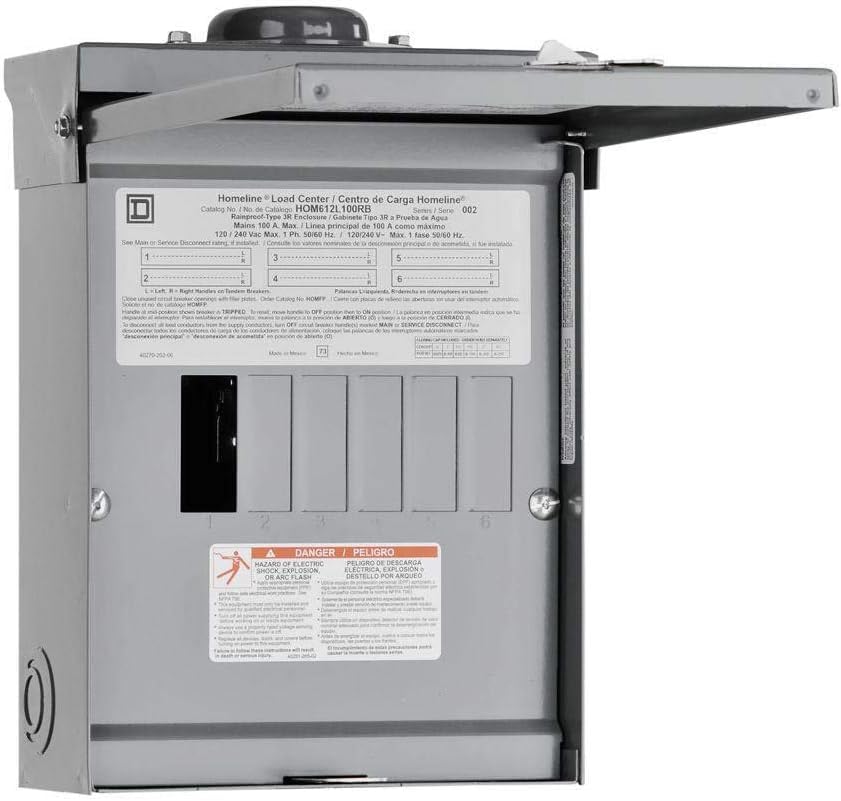

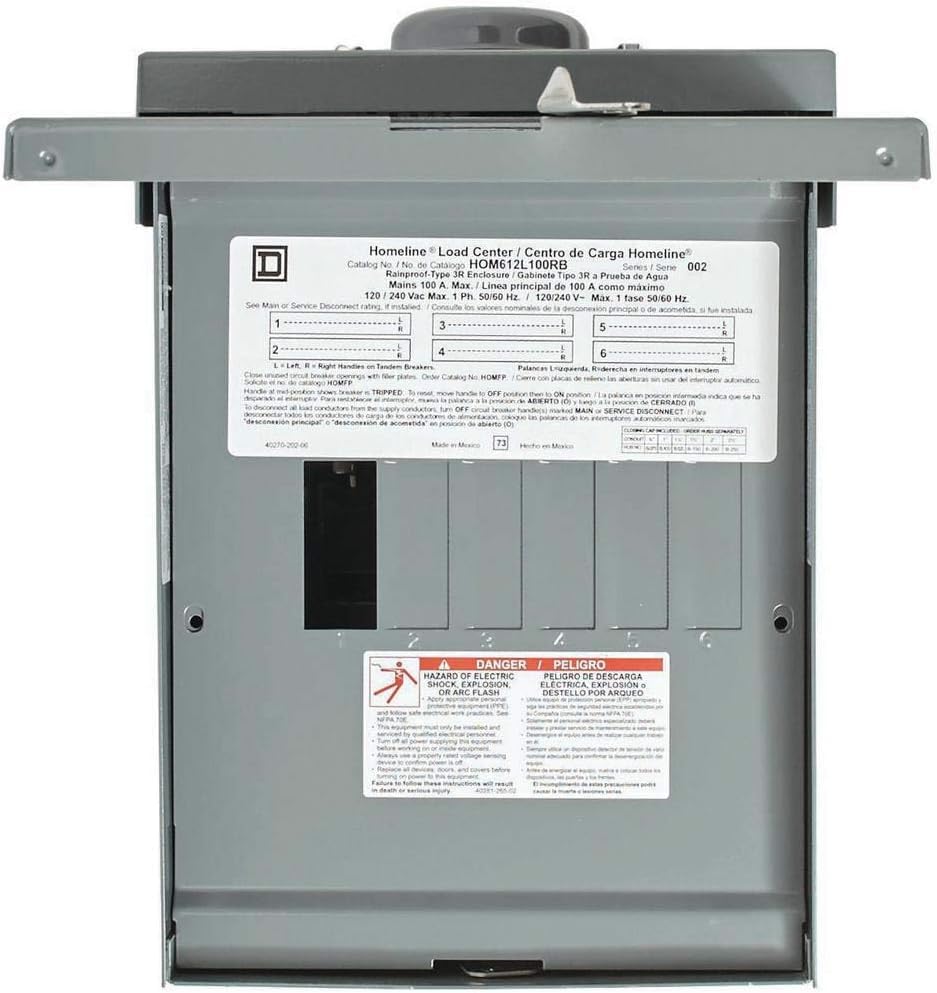

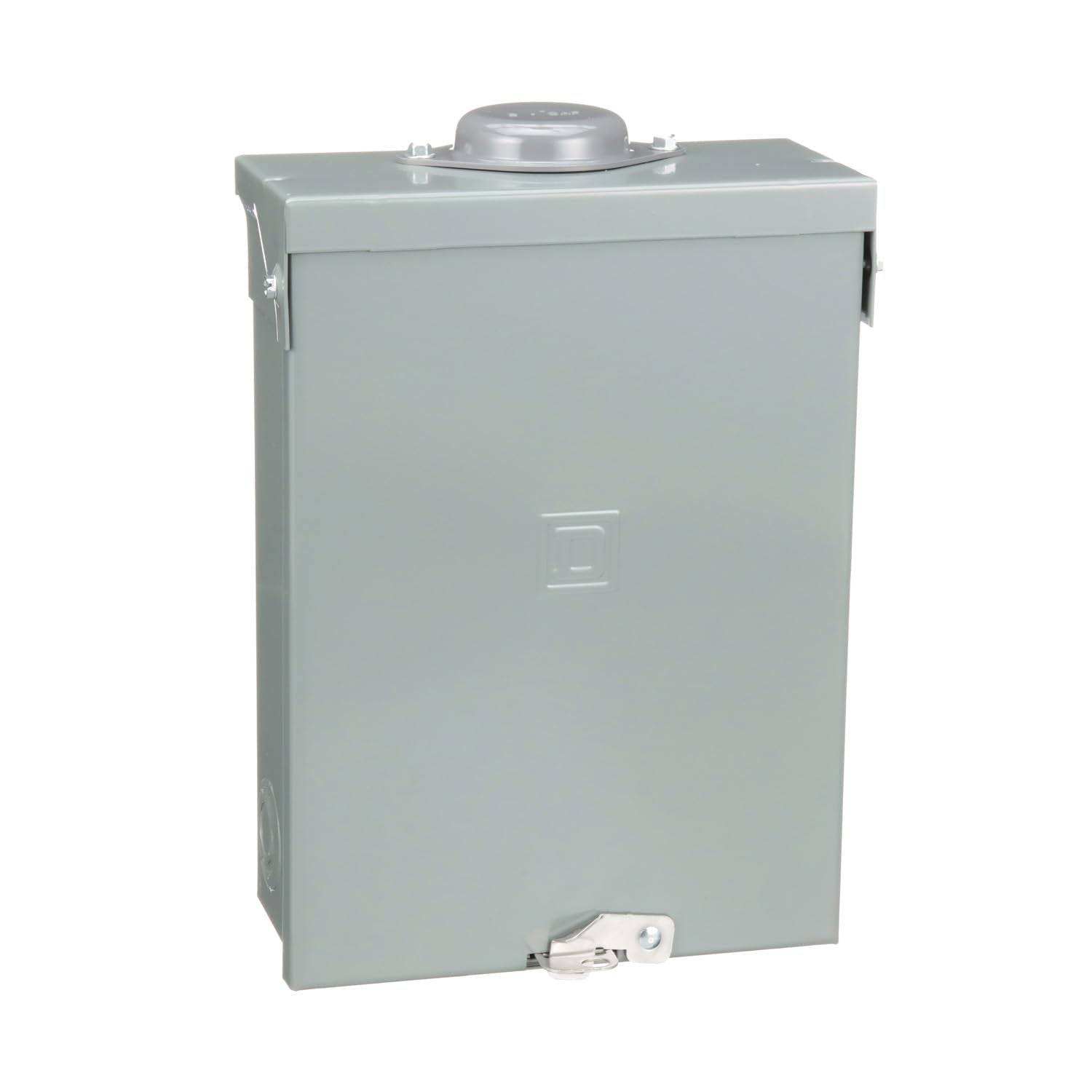

Square D by Schneider Electric Homeline 100 Amp Outdoor Main Lug Load Center, Circuit Breaker Box, 6-Space 12-Circuit, 120/240 VAC, UL Listed, Rainproof NEMA 3R Enclosure (HOM612L100RBCP)
HIGH-PERFORMANCE ELECTRICAL PANEL: The Square D Homeline 100 Amp Load Center offers reliable circuit protection; It is ideal for residential and commercial applications
BREAKER DETAILS: Plug on neutral load main breakers center with lug connections

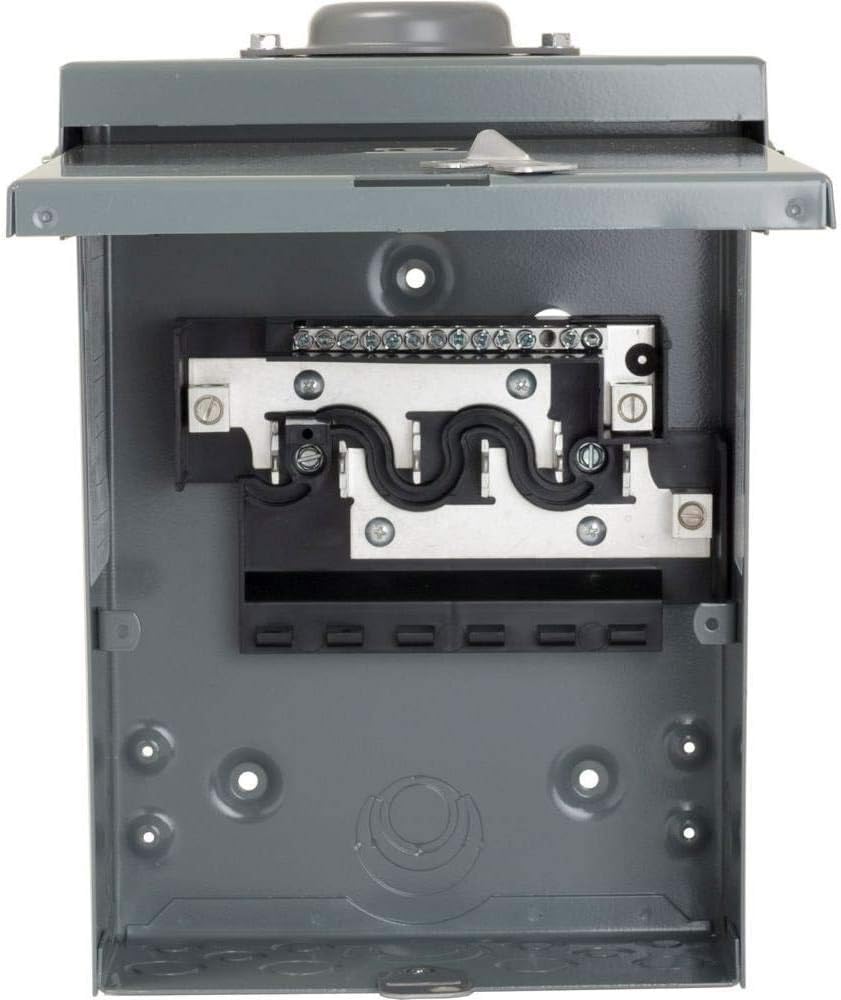

DURABLE 100 AMP BREAKER BOX: Constructed with a tin-plated aluminum bus bar and welded sheet steel enclosure; Designed for outdoor use; Finished with baked enamel gray coating for added durability; Distributed neutral bars keeps wiring tidy
INSTALLATION AND CONNECTIONS: Breaker box cover for surface mounting; Electrical connections are main lugs that accept a range of 6 AWG to 2/0 AWG copper or 6 AWG to 2/0 AWG aluminum wire

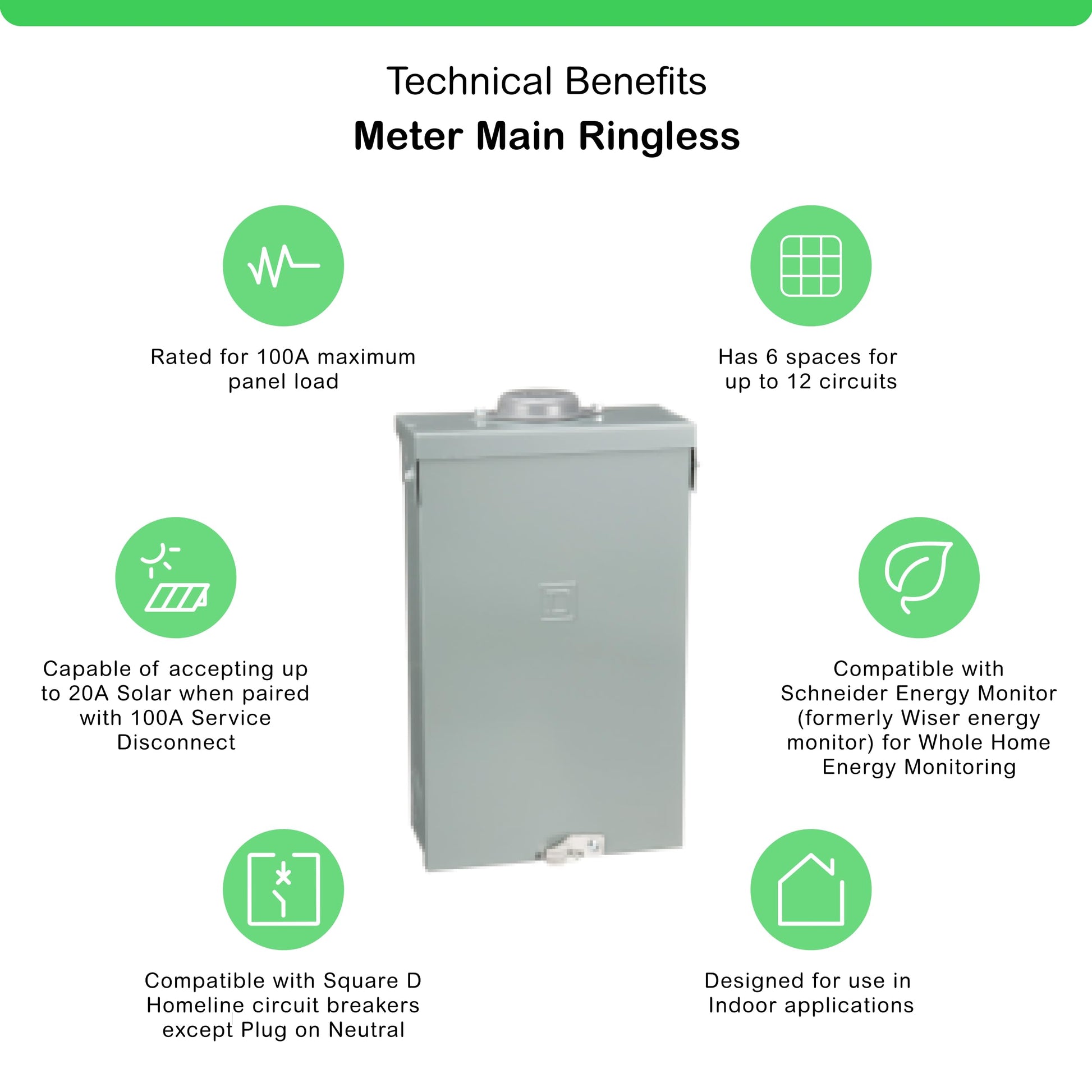

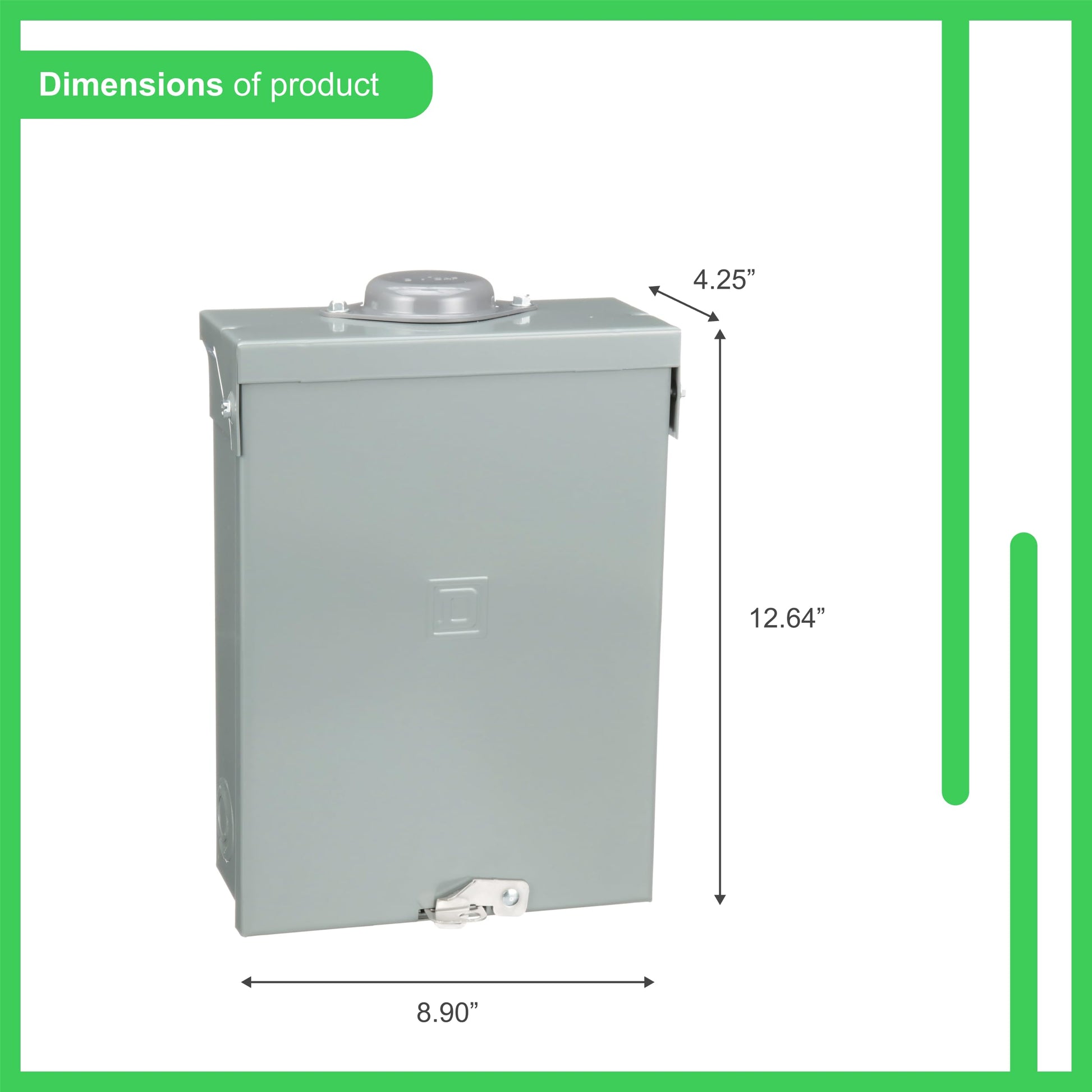

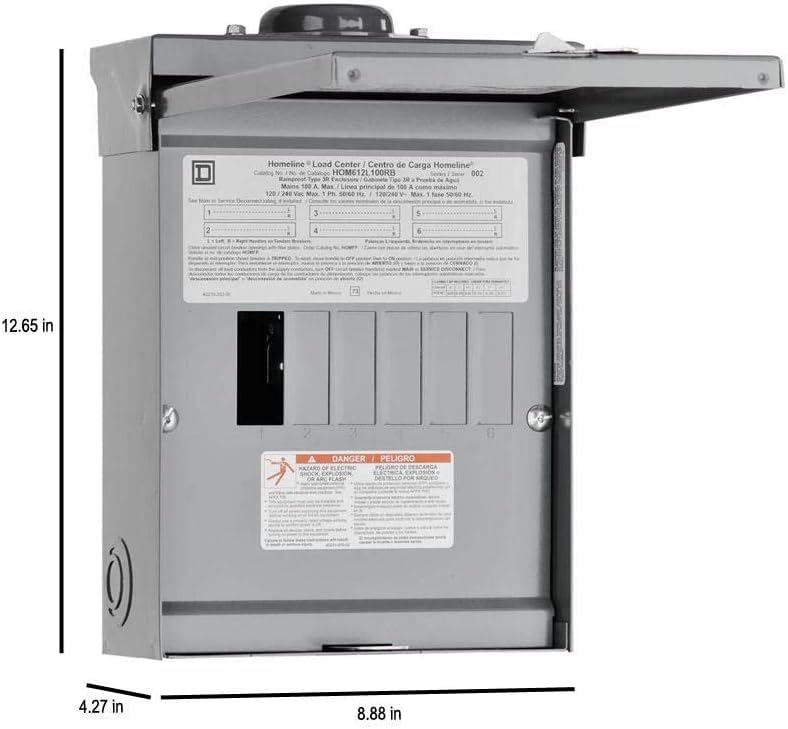

SPECIFICATIONS: Measures 8.88 in x 3.75 in x 12.57 in; Features 22 kA breaking capacity with 120/240 VAC rating; 6 spaces in a NEMA 3R (Outdoor) enclosure; Supports a total of 12 circuits with the use of tandem breakers to maximize flexibility; UL Listed
Binding: Tools & Home Improvement
model number: HOM612L100RBCP
Part Number: HOM612L100RBCP
Details: The Square D by Schneider Electric Homeline Load Center (HOM612L100RBCP) is a high-performance 100 amp breaker box engineered for safe, reliable power distribution in residential environments. With a capacity of 6 circuit spaces and support for up to 12 circuits, this outdoor breaker panel offers scalability and versatility for future electrical needs. Its rugged NEMA 3R (Outdoor) enclosure houses a reliable tin-plated aluminum bus bar in a welded sheet steel enclosure, ensuring long-lasting performance. Accommodates a range of 6 AWG to 2/0 AWG copper or 6 AWG to 2/0 AWG aluminum wire. With 22 kA breaking capacity and 120/240 VAC rating, it’s UL Listed for peace of mind.
