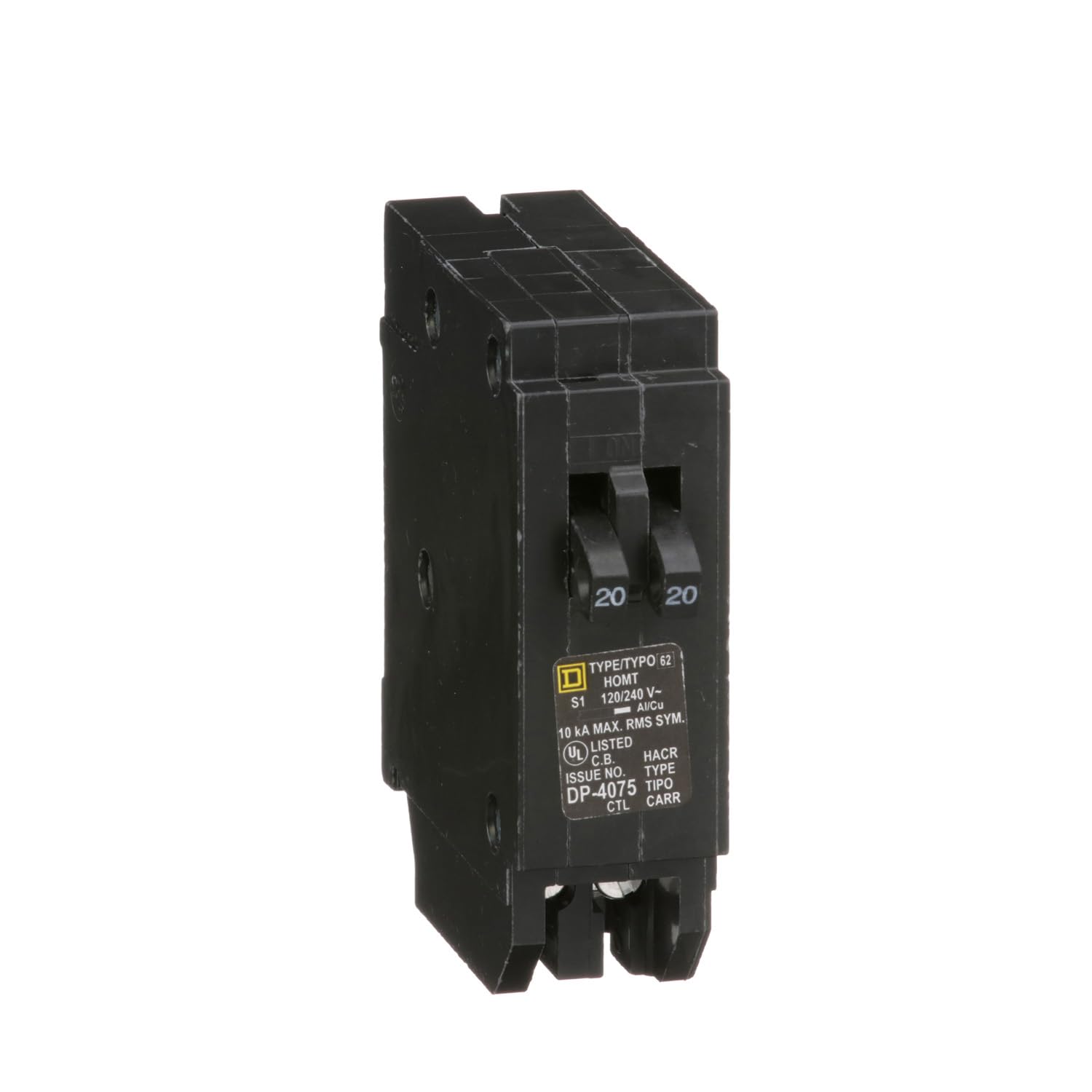

Square D by Schneider Electric Square D - HOMT2020CP Homeline Tandem Circuitbreaker

Brand: Schneider Electric

Color: Black

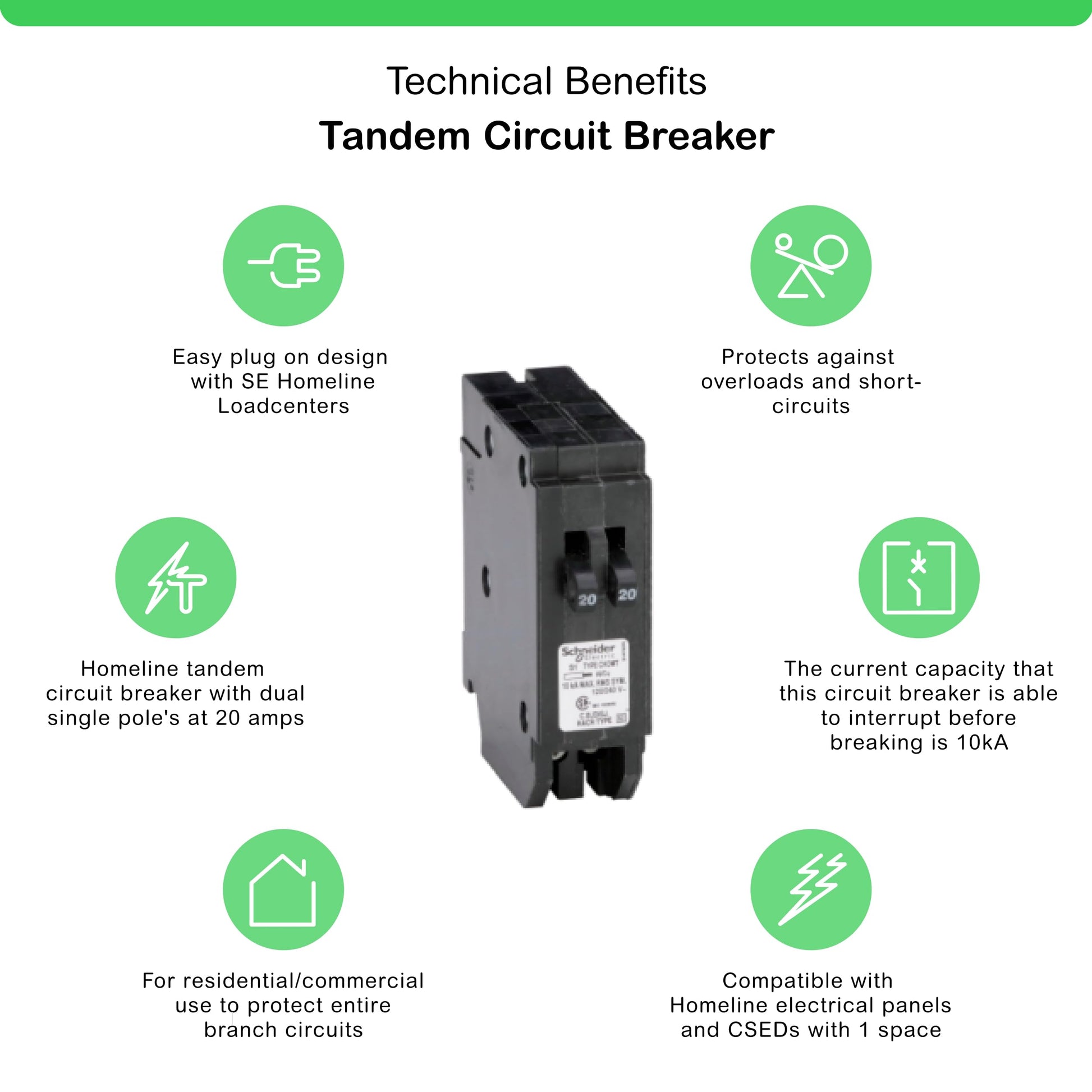

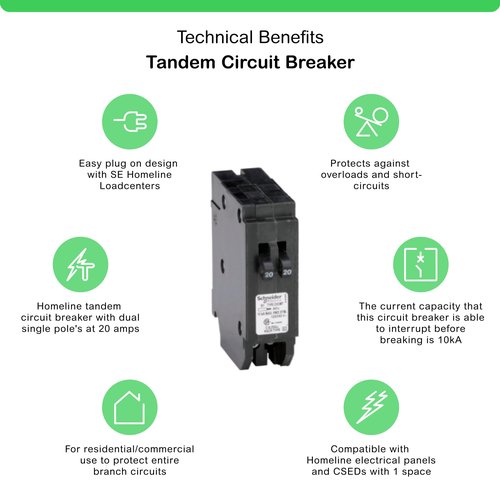

Features:

• Homeline tandem circuit breaker with dual single pole's at 20 amps
• The current capacity that this circuit breaker is able to interrupt before breaking is 10kA
• Easy plug on design with SE Homeline Loadcenters
• Easy plug on circuit breaker that’s compatible with Square D Homeline Loadcenters

Binding: Tools & Home Improvement

model number: HOMT2020CP

Part Number: HOMT2020CP

Details: Product Description

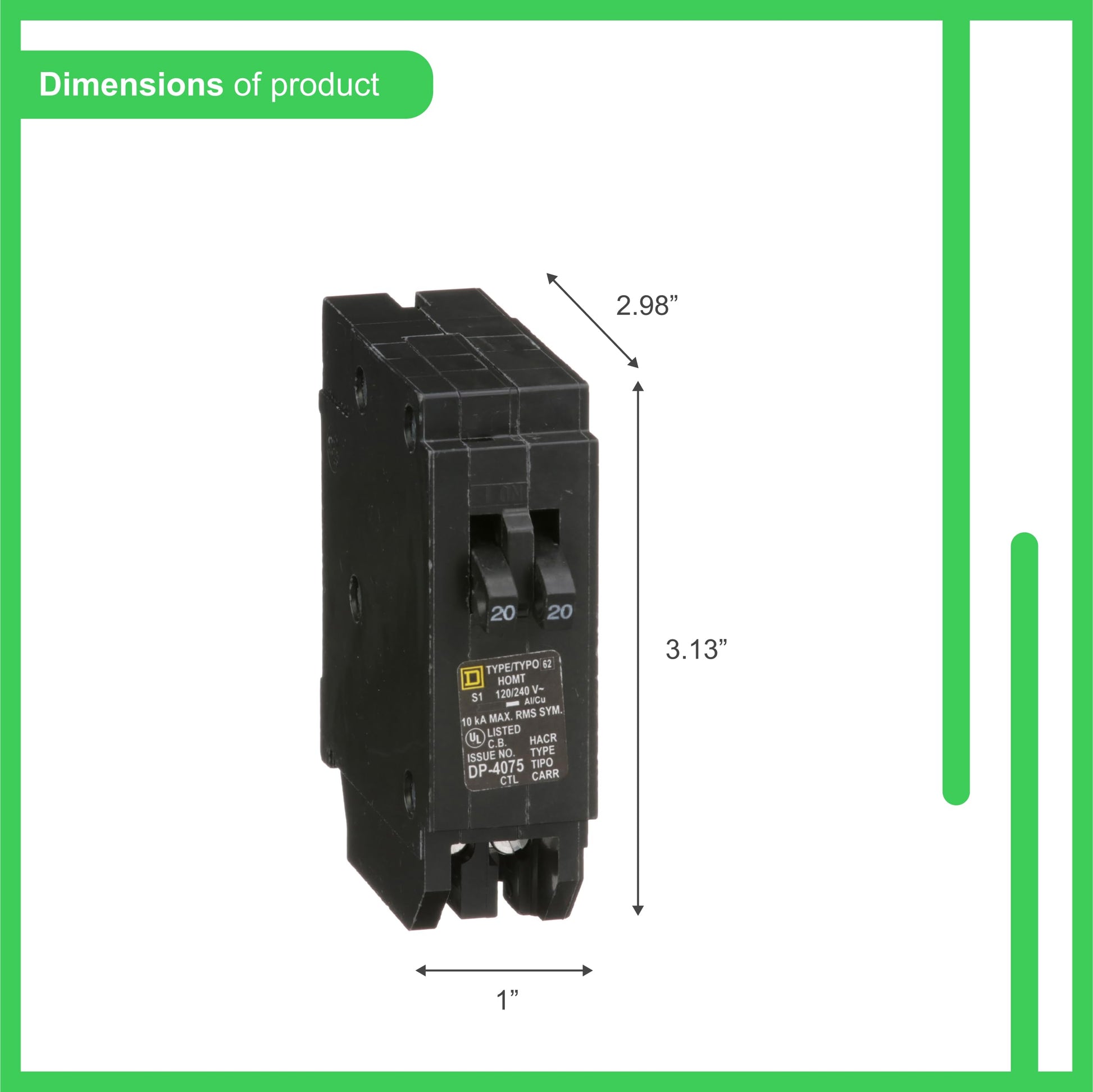

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM plug in miniature tandem breaker with plug in mounting is rated 20A and 20A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed. This quad tandem breaker is consumer packaged.

From the Manufacturer

Two single pole circuits in only one space. 120 Volts ac single pole, 120/240 Volts ac 2 pole; 10,000 AIC. U.L. Listed as HACR type for use with equipment having motor group combinations and marked for use with HACR breakers.

EAN: 0047569071065

Package Dimensions: 3.7 x 2.9 x 1.0 inches
