Starrett Precision Caliper Gauge with Pointed Jaw - White Face, .375-6" Range, .0005" Resolution - 1175Z

Brand: Starrett

Color: White

Features:

• Enhanced Precision - Achieve accurate measurements with a 0 .375-6" range and 0 .0005" resolution, ensuring reliable results for critical tasks
• User-Friendly Operation - Utilize the convenient retraction lever for one-handed use, providing efficient and effortless measuring
• Ergonomic Design - Experience comfortable handling with a balanced frame, reducing fatigue during extended use
• Versatile Application - Ideal for measuring castings, forgings, and sheet metal work, accommodating various industrial needs
• The Standard for Excellence - Manufacturing quality tools that provide consistent and reliable performance since 1880, Starrett's commitment has earned them a reputation as one of the most trusted names in the industry

Release Date: 15-05-2017

model number: 1175Z

Part Number: 1175Z

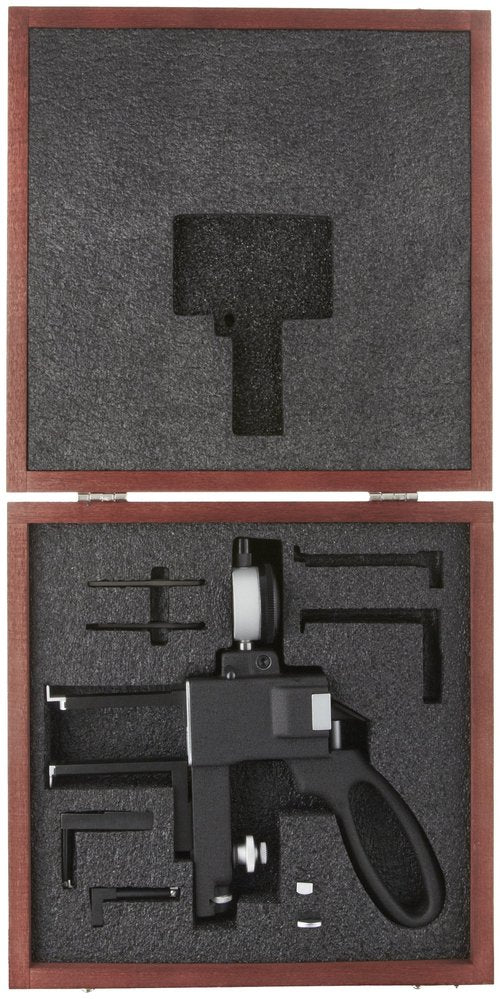

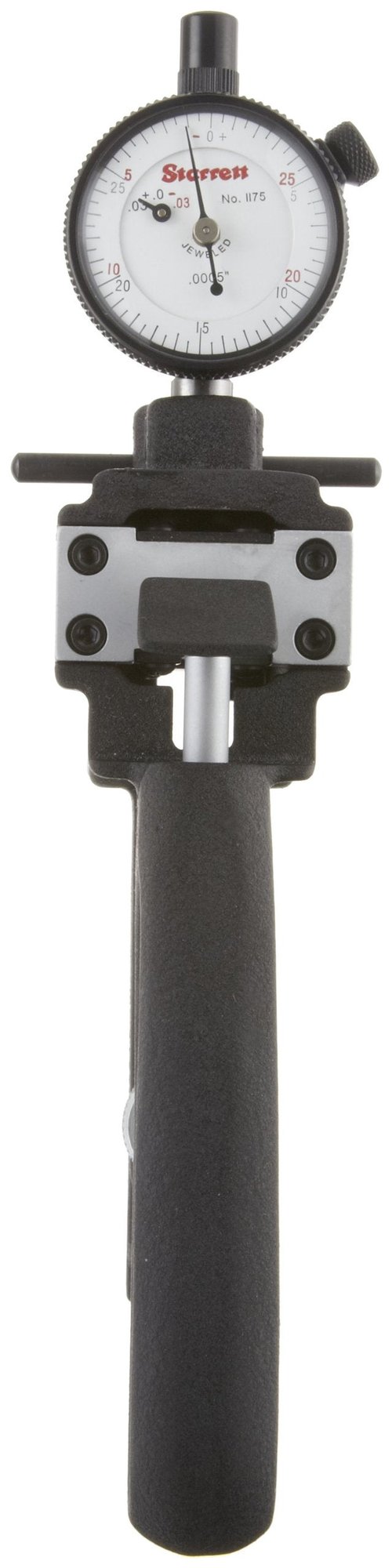

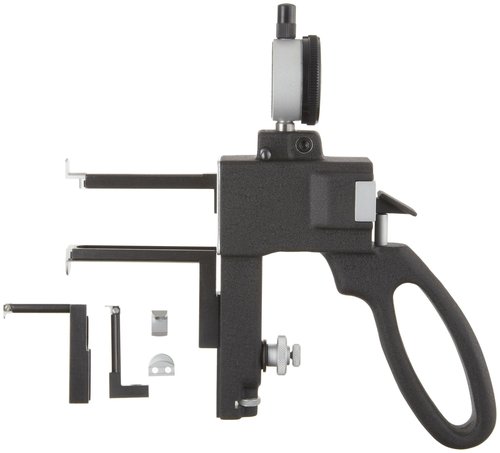

Details: Starrett 1175Z Dial Indicator 81-136-1175 Groove Gauge is used for measuring inner diameter (ID) grooves and internal recesses, reads to 0.0005”, has a dial reading of + or - 30 graduations, and a total measurement range of 0.060”. Two sets of interchangeable jaws measure to gauging depths of 1.25” and 2.50”, and three sets of interchangeable contacts are used with 0.375” - 6.00” bore diameters, 0.100” - 0.265” groove depths, and 0.024” - 0.051” groove widths. The moveable gauging contacts have a 1/2” retractable range, are made from hardened steel and have a chrome finish for long life, and flush ends for gauging blind holes. The fixed lower jaw supports the weight of the gauge and the operator’s hands, preventing incorrect gauging pressure and false readings. A fine adjustment screw and lock help provide additional accuracy.
Dial indicators, also called dial gauges, dial calipers, and probe indicators, are precision measuring tools used to measure small linear distances and object sizes. The dial magnifies the measurement for readability by the human eye. They are frequently used in manufacturing, laboratories, and other industrial or mechanical fields, and are suitable anywhere a small measurement must be taken and recorded or transferred, such as checking the variation in tolerance of a workpiece. Dial test indicators are very similar to dial indicators, except that the axis of measurement is perpendicular to the axis of the indicator. Standard dial indicators measure the displacement along the axis of the indicator. Dial indicators can be analog, with a mechanical dial, or electronic, with a digital display.
The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company was founded in 1880 and is headquartered in Athol, MA.

EAN: 0049659531732

Package Dimensions: 10.6 x 10.5 x 3.6 inches
