Taiss 2pcs LJ12A3-4-Z/AX Proximity Switch Inductive Proximity Sensor Detection Switch NPN NC DC 6V-36V 4mm Normally Close 6-36V

Brand: Taiss

Color: NPN NC

Features:

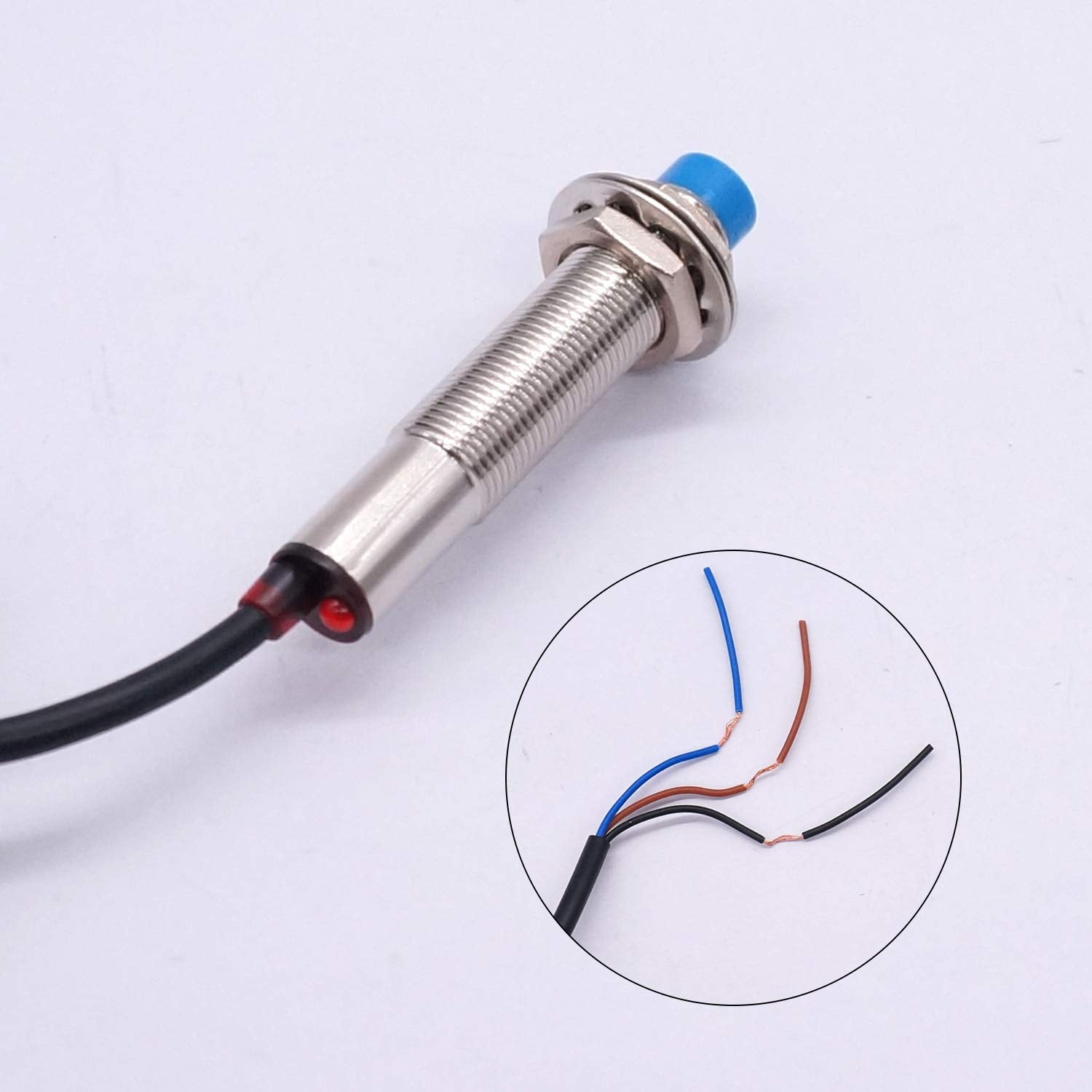

• Product Name : Inductive Proximity Switch;Model : LJ12A3-4-Z/AX;Theory : Inductive Sensor;Wire Type : 3 Wire Type (Brown, Blue, Black)
• Switch Appearance Type : Cylinder Type, Metal Shell;Output Type : NPN NC;
• Detecting Distance : 4mm(+/-10%);Supply Voltage : DC 6-36V Output Current : 300mA;Detect Object : Iron;Column Sensor Diameter : 10.4mm/0.4";Thread Diameter : 12mm/0.5"
• Total Size : 66 x 21mm/ 2.6'' x 0.8'' (L*Max.D);Cable Length : 1.16m/35.7'';External Material : Plastic, Metal

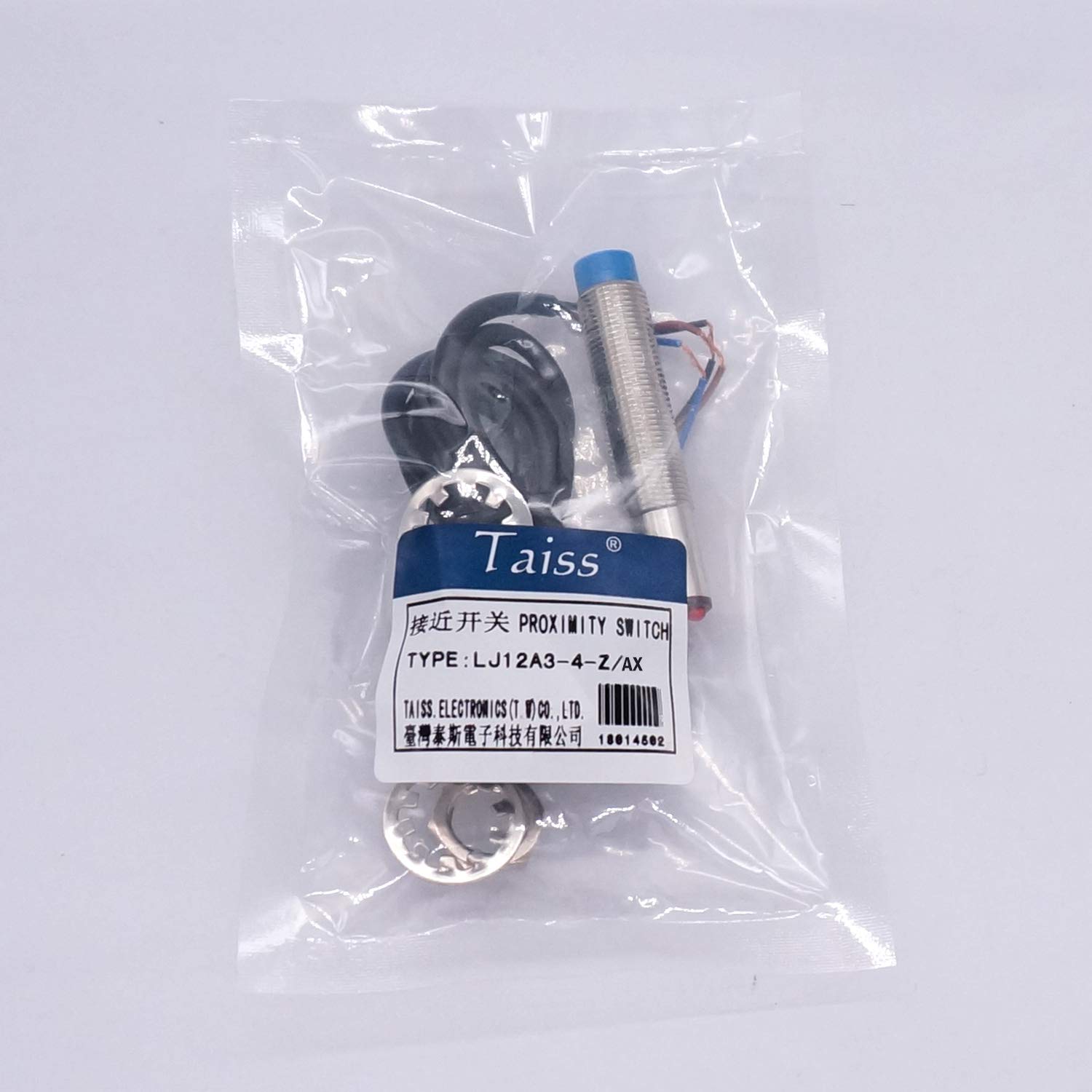

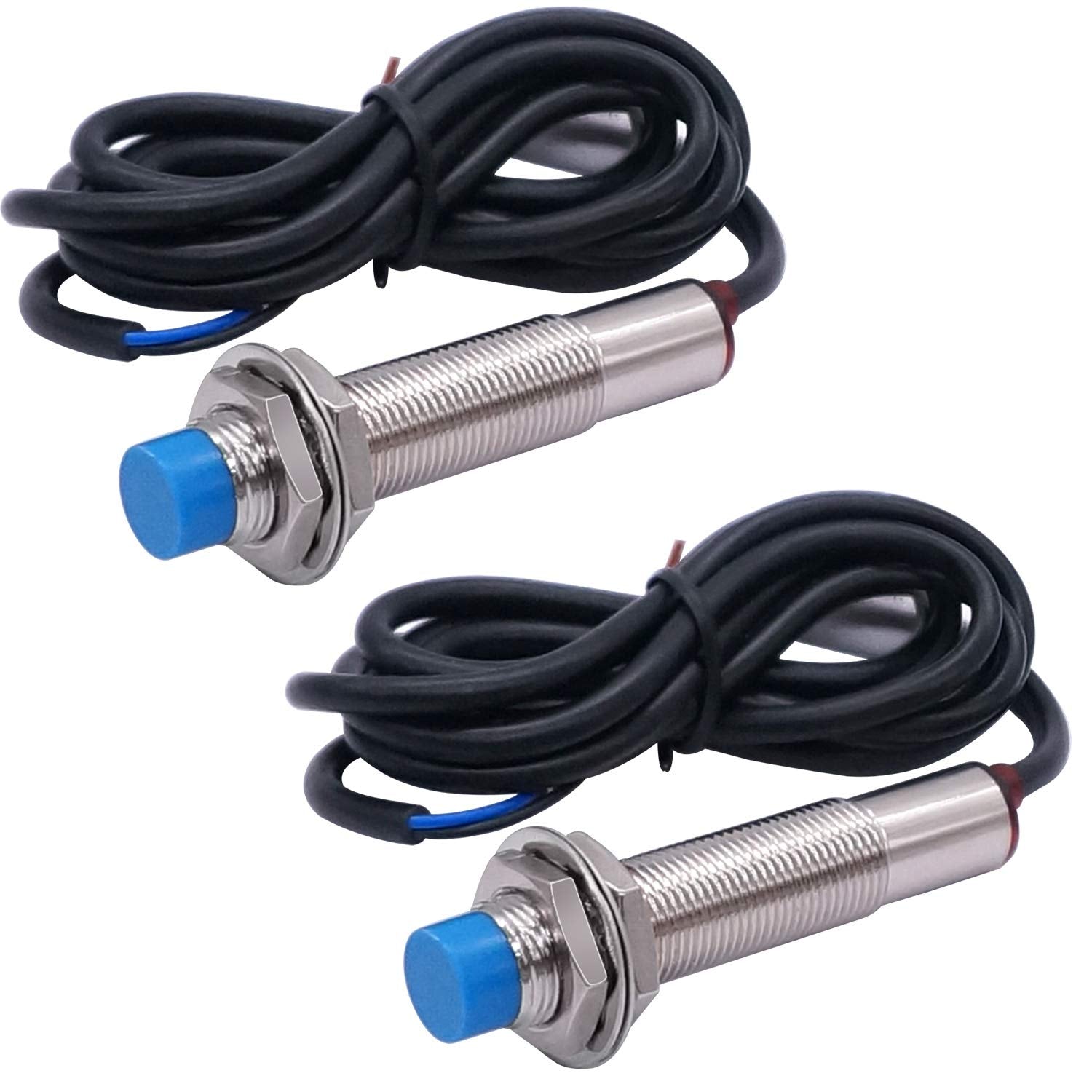

• Net Weight :100g;Color : Blue Tone, Black ;Package Content : 2 x Inductive Proximity Switch

Part Number: JJ-0021

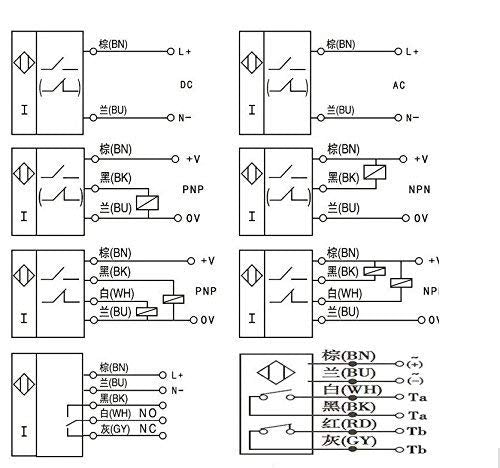

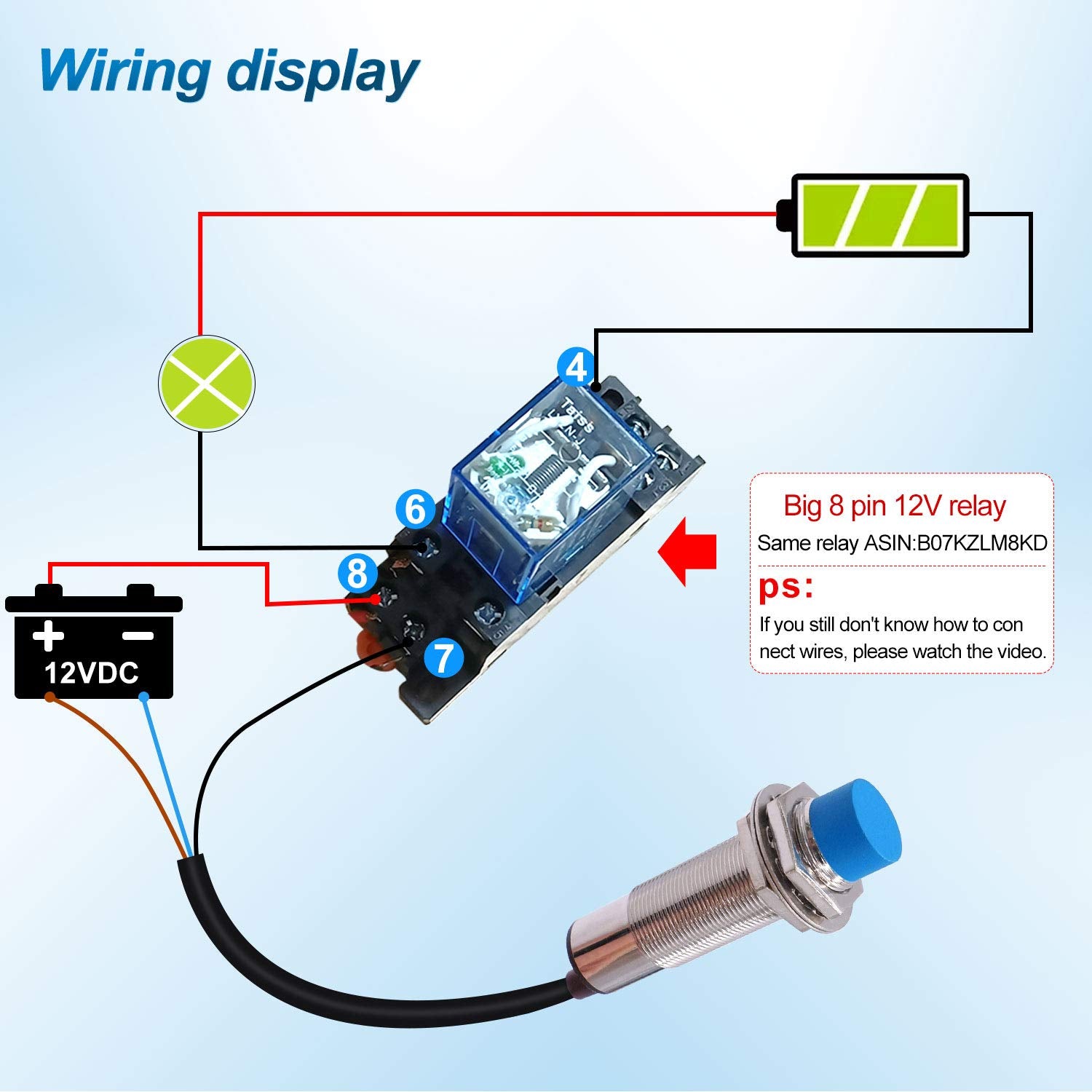

Details: Description: Case material: Metal / Copper Output Status: Normally Close Detection objects: Conductor Voltage: DC 6-36V Output Current: 300mA Polarity: NPN Dimension: M12x1x55mm Detection Distance: 4 mm Part number: LJ12A3-4-Z/AX Three wires wiring connection: Brown is connected to the positive power supply. Blue is connected to the negative power supply. Black is connected to the load. Package Included: 2X Inductive Proximity Sensor Detection Switch

EAN: 0726146000215

Package Dimensions: 4.3 x 3.0 x 0.7 inches
