Tzone Vibration Data Logger 3-Axis Shock Datalogger Temperature Recorder USB,Digital Shipping Vibration Meter Auto Report 34560 Records,Transport Logger for Shock Sensitive Goods Monitor

Brand: Tzone

Features:

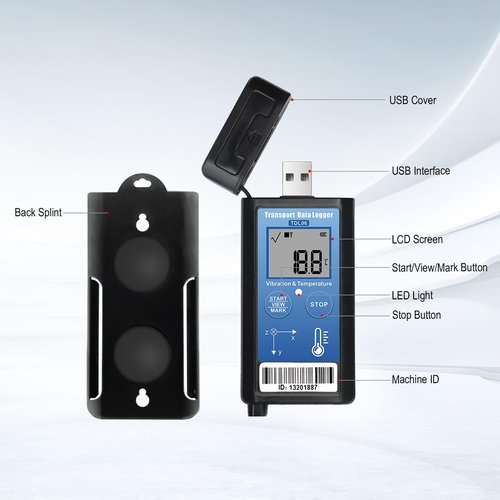

• Vibration Data Logger Temperature Recorder USB: Built-in 3-axis acceleration sensor, recording the time when shock occurs; Supports recording temperature; USB port, auto-generated PDF and CSV reports, no software required; Data capacity is 34560 groups

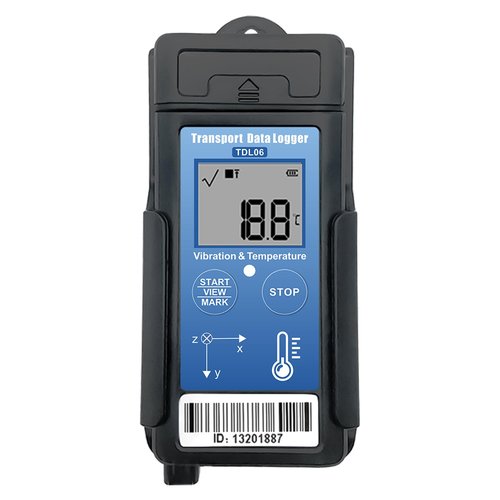

• Digital Shock Shipping Transportation Logger: With a large LCD screen,displays current/MAX X-Y-Z axis acceleration values and current/MAX/MIN temp values to help you check environmental changes in time; NOTE:This logger does not support measuring vibration data on industrial machinery

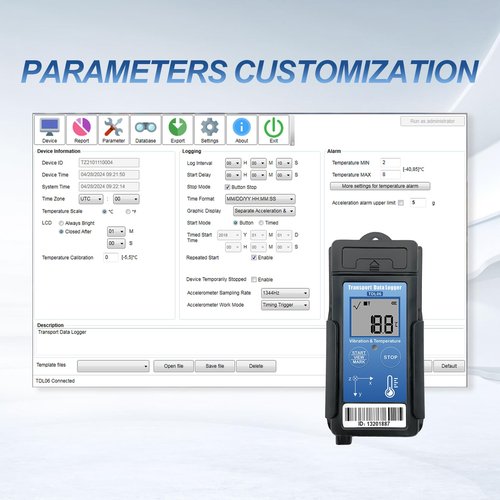

• Parameters Settable: Supports setting parameters such as logging interval, alarm range, acceleration sampling rate,etc. via the free software(need to download and only for Windows); Vibration and temp visual alarms ensure a safe environment; Support marking events (6 groups)
• Measurement Range: Acceleration measuring range: -27g to +27g (three-axis vector sum), -16g to +16g (single-axis); Temp measurement range: -22℉ to 158℉; Acceleration sampling rate: 50/100/200/400/1344 HZ (optional); Temp units ℃/℉ switching

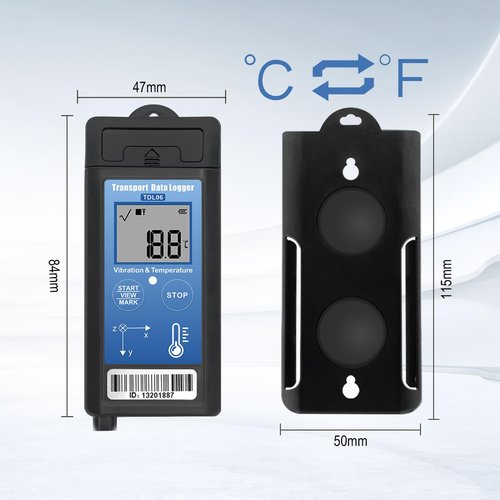

• Humanized Design: Equipped with a back clip, it can be easily installed on object that require monitoring and recording vibration data; IP65 waterproof, allows it to work in high humidity environments; Replaceable battery (included)
• Wide Application: The shock data logger is widely used to record and monitor the changes in items during transportation and storage, such as food storage, warehouse, shipping containers, fragile goods transportation and so on

model number: TDL06

Part Number: TDL06

Package Dimensions: 6.1 x 4.5 x 1.1 inches
