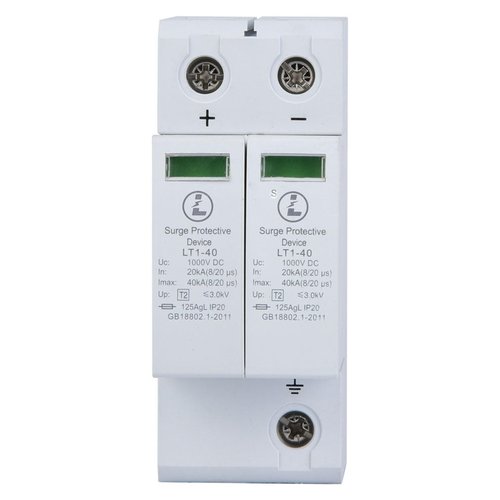

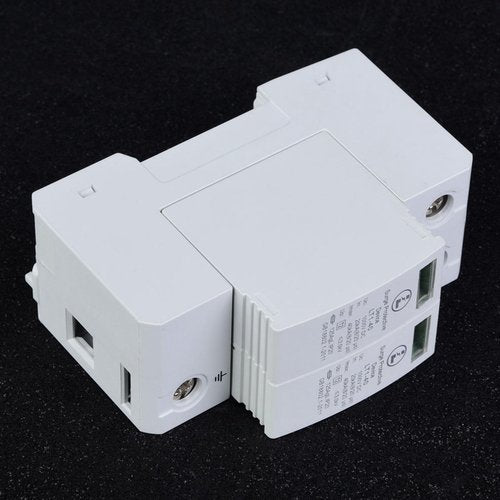

WQAPVHBG Low Voltage Protective Device, 2P 40KA Protectiverson Device, Dc Photovoltaic Low Voltage Devices as Accessories for Using with Circuit Breaker in Distribution Box

Brand: WQAPVHBG

Features:

• Product Specs: Protective device UC: 1000V, nominal discharge current: 20KA, maximum discharge current: 40KA, residual pressure: <3.0KV, rated connection and segmentation capacity: 1M. Protectiverson device size: 3.5 x 1.9 x 1.4in
• PC Material: Low-voltage devices exterior is made of PC material. Low-voltage protective device material will form a dense carbonized layer on the outside to prevent the spread of flames, so that components will not be damaged
• Stable Function: Protect device is a copper appliance with stable conductivity, and protection low-voltage device is made of precision electronic components, with a modular design, more stable function and a longer service life
• Easy to Install: Protector breaker device is installed with a 2P rail and is suitable for 36MM rails. You can fix 2p protective device dc photovoltaic protector on the 36MM rail, simply adjust and test it, and install it easily
• Practical Tools: Voltage arrester device can be used with the circuit breaker in the distribution box. Its overvoltage and overcurrent protection of circuit breaker complement each other, which can maintain equipment stability

model number: WQAPVHBG4wv2tuezaf-02

Part Number: WQAPVHBG4wv2tuezaf-02

Details: Features:
The product shell is made of PC flame retardant material, which is safer to use.
The product adopts modular design, and its use and maintenance are very simple.
The product is made of precise electronic components, with longer service life
Purple copper fittings, electrical conductivity is good.
This product adopts 2P guide rail installation, installation is very simple.
Installation with standard 36MM guide rail and use with circuit breaker in distribution box

Specification:
Material: PC flame retardant shell
Uc: 1000V
Type: #1, 10/20KA; #2, 20/40KA(Optional)
Nominal discharge current: 10KA(#1),20KA(#2)
Maximum discharge current: 20KA(#1), 40KA(#2)
Installation mode: 2P Guide rail mounting
Left voltage after unloading voltage: Rated connectivity and segmentation Ability: 1M
Product dimension: 90*49*36mm / 3.5*1.9*1.4in
Weight: 260g/9.2oz

Package List:
1 * Protective Device

Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

Package Dimensions: 3.5 x 2.8 x 1.6 inches
