WWZMDiB 4Pcs HX711 Load Cell Amplifier 24-Bit ADC Weighing Sensor Module Used to Measure Force, Pressure, Displacement, Strain, Torque, Acceleration.

Brand: WWZMDiB

Features:

• 💎【HX711 Weighing Sensor Module】: used to measure force, pressure, displacement, strain, torque, acceleration.
• ⚡【Voltage】：2.6 ~ 5.5V
• 🥇This module uses 24 high precision A/D converter chip hx711.
• 🥈The HX711 uses a two wire interface (Clock and Data) for communication. Any microcontroller’s GPIO pins should work and numerous libraries have been written making it easy to read data from the HX711.
• 🥉Support Widely used in aerospace, mechanical, electrical, chemical, construction, medicine and many other fields

Binding: Tools & Home Improvement

model number: HX711

Part Number: 4Pcs HX711 Weighing Sensor Module

Details: WWZMDiB 4Pcs HX711 Load Cell Amplifier 24-Bit ADC Weighing Sensor Module used to measure force, pressure, displacement, strain, torque, acceleration.

💎【HX711 Weighing Sensor Module】: used to measure force, pressure, displacement, strain, torque, acceleration.
⚡【Voltage】：2.6 ~ 5.5V
🥇This module uses 24 high precision A/D converter chip hx711.
🥈The HX711 uses a two wire interface (Clock and Data) for communication. Any microcontroller's GPIO pins should work and numerous libraries have been written making it easy to read data from the HX711.
🥉Support Widely used in aerospace, mechanical, electrical, chemical, construction, medicine and many other fields

【Features】:
-Two selectable differential input channels
-On-chip active low noise PGA with selectable gain of 32, 64 and 128
-On-chip power supply regulator for load-cell and ADC analog power supply
-On-chip oscillator requiring no external component with optional external crystal
-On-chip power-on-reset
-Simple digital control and serial interface: pin-driven controls, no programming needed
-Measurement Resolution: 24 bit
-Selectable 10SPS or 80SPS output data rate
-Simultaneous 50 and 60Hz supply rejection

【Specification】：
-Differential input voltage : ±40mV ( Full-scale differential input voltage is ± 40mV )
-Data accuracy : 24 bit ( A/D converter chip )
-Refresh frequency: 80 Hz
-Operating Voltage : 5V DC (2.6V ~ 5.5V)
-Operating current : <10 mA
-Operation supply voltage range: 2.7V ~ 5.5V
-Operation temperature range: -40 ~ +85℃

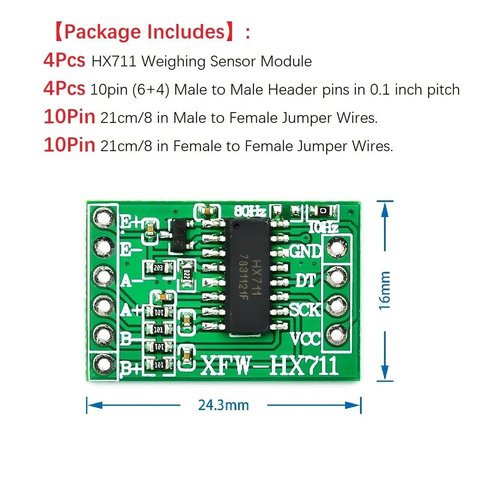

-Size : 33mm x 20mm

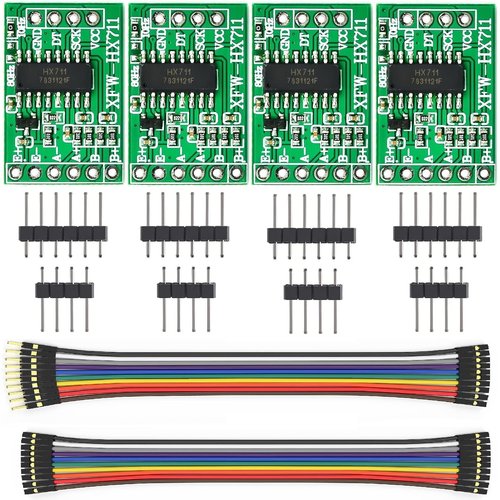

【Package Includes】:
4Pcs HX711 Weighing Sensor Module
4Pcs 10pin (6+4) Male to Male Header pins in 0.1 inch pitch
10Pin 21cm/8 in Male to Female Jumper Wires.
10Pin 21cm/8 in Female to Female Jumper Wires.

EAN: 0618202521126

Package Dimensions: 3.6 x 3.6 x 0.7 inches
